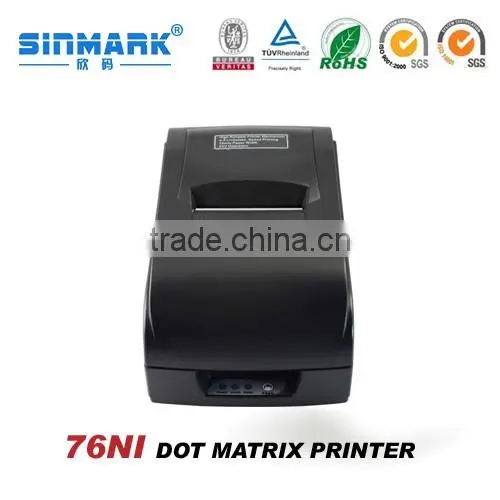

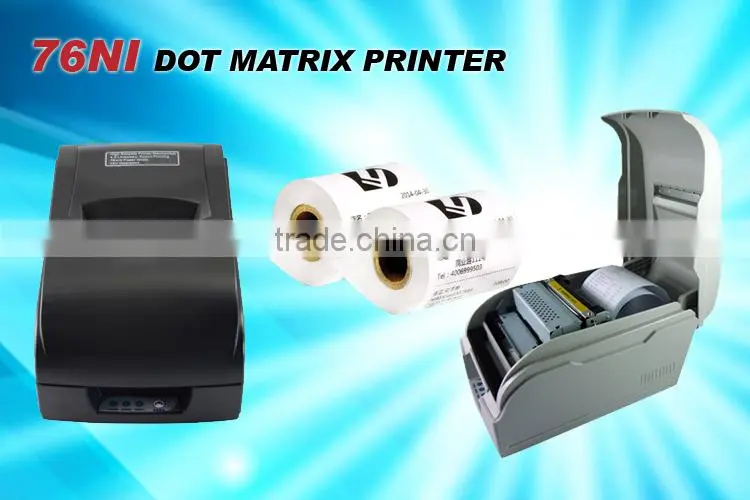

76mm Portable Receipt Printer(high Speed)Dot Matrix Printer

Name: 76mm Portable Receipt Printer(high Speed)Dot Matrix Printer
Brand: SINMARK
SKU: 100420237

US$ 20 - 50 MOQ: 12 Sets

Key Specifications

Products Status:

Stock

Type:

Dot-matrix

Style:

Black And White

Shanghai Dengyuan Information Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Type Dot-matrix

Style Black And White

Use Barcode Printer

Interface Type USB

Max Paper Size 60mm

Black Print Speed 6 inch/s

Color Print Speed no

Max. Resolution 203DPI

Brand Name SINMARK

Model Number 76mm

Place of Origin Shanghai, China

76mm portable receipt printer(high speed)Dot Matrix Printer

Product Description

76NI Dot Matrix Printer features:

The 4.5 line / s high speed printing, support for multiple languages international;

Communication interface is optional, parallel, serial, Ethernet, USB;

Support of different density and download print bitmap graphics;

Support for advanced OPOS applications, support the printer status monitoring function;

Support to a single function, compatible with ESC/POS print command;

Support the lack of paper print head overheating, error alarm;

Ethernet printer can achieve 2 connected tasks at the same time saved;

Support black label detection positioning printing, print server print support network;

Parameters

76NI Dot Matrix Printer specification:
Printing	Print method	9pin impact dot matrix printing
	Print width	76mm
	Print resolution	400dot/line
	Print speed	4.5line/sec
	Interface	Serial/USB/Parallel/Ethernet
	Paper diameter	75mm
	Line space	4.23mm(can be adjustive)
	Character Size	ANK Font Font A: 9×9dots Font B: 7×9dots
	Character Size	Simplified/Traditional Chinese Character: 16×16dots
Barcode	Code page	PC437/Katakana/PC850/PC860/PC863/PC865/West Europe/
		Greek/Hebrew/East Europe/Iran/WPC1252/PC866/PC852/
		PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/
		1257/Thai Vietnam/PC864/PC1001/(Latvian)/(PC1001)/
		(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)
	Barcode mode	UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/
	Barcode mode	CODABAR/CODE93/CODE128
	Fonts	GB2312
Buffer	Data	4K bytes
Buffer	NV Flash	60K bytes
Power	Cashdrawer out	DC 12V/1A
Power	Power supply	AC 110V/220V,50 ~ 60Hz,DC 24V/2A
Physical properties	Weight	1.96kg
Physical properties	Dimension	240×155×140mm
Environment	Work environment	Temperature:0 ~ 45℃, Humidity:10 ~ 80%
Environment	Storage environment	Temperature:-10 ~ 60℃ ,Humidity:10 ~ 90%
Auto Cutter	Reliablity	10 million lines

* The above parameters are subject to change without prior notice.
