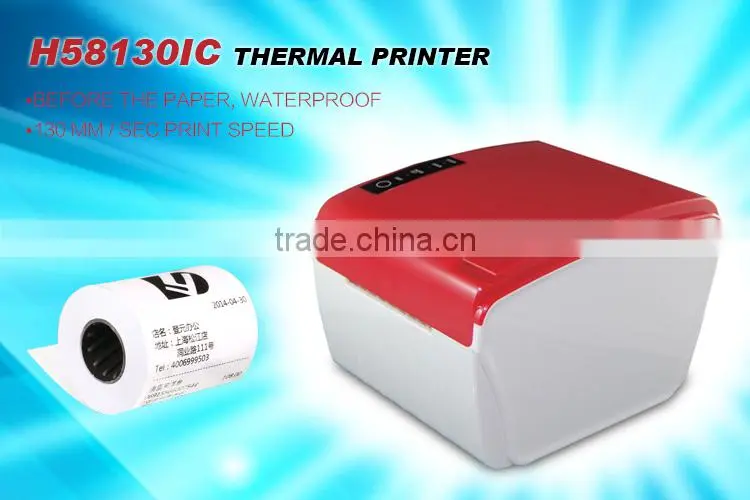

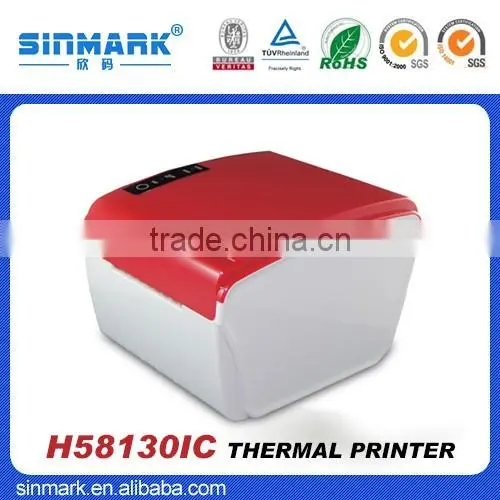

58mm Thermal Receipt Printer H58130IC thermal printer
H58130IC thermal printer features:
1, 100 mm/s print speed,support Linux drive system;
2, Out of paper waterproof type,the appearance of fashion;
3, The movement of life of up to 150 kilometers,the cutter life 1500000 times;
4, 85 mm large paper roll,big gear,easy device;
5, Can realize the binding software and printers,to protect the interests of software developers;
6, Ethernet printer can be realized at the same time save 2 connection tasks;
7, Support for advanced OPOS applications,compatible with ESC/POS instruction set;
8, Support of different density and download print bitmap graphics;
9, Built-in data buffer, support the printer status monitoring;
10, Optional parallel/serial communication interface of /USB/ethernet;
| H58130IC thermal printer specification: | ||
| Printing | Print method | Direct thermal line |
| Print width | 48mm | |
| Dot density | 384dot/line | |
| Print speed | 100mm/s | |
| Interface | Serial+Ethernet+Parallel+USB port | |
| Paper diameter | 85mm | |
| Line space | 3.75mm(can be adjustive) | |
| Character Size | ANK Font Font A: 12×24dots Font B: 9×17dots | |
| Simplified/Traditional Chinese Character: 24×24dots | ||
| Barcode | Code page | PC437/Katakana/PC850/PC860/PC863/PC865/West Europe/ |
| Greek/Hebrew/East Europe/Iran/WPC1252/PC866/PC852/ | ||
| PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/ | ||
| 1257/Thai Vietnam/PC864/PC1001/(Latvian)/(PC1001)/ | ||
| (PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai) | ||
| Barcode mode | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/ | |
| CODABAR/CODE93/CODE128 | ||
| Fonts | GB2312 | |
| Buffer | Data | 4K bytes |
| NV Flash | 60K bytes | |
| Power | Cashdrawer out | DC 12V/1A |
| Power supply | AC 110V/220V,50 ~ 60Hz,DC 12V/3A | |
| Physical properties | Weight | 0.85kg |
| Dimension | 170×135×115mm | |
| Environment | Work environment | Temperature:0 ~ 45℃, Humidity:10 ~ 80% |
| Storage environment | Temperature:-10 ~ 60℃ ,Humidity:10 ~ 90% | |
| Auto Cutter | Reliablity | 150km |
| * The above parameters are subject to change without prior notice. | ||
