Specifications
1.EN12975&solar keymark
2.15Year Warranty for tube
3.Delivery:10 day
CHARACTERISTICS
1.The evacuated tubes which are slid onto a U-shaped heat transfer unit absorbs the sun energy and transform it into heat. As a result the liquid gets heated. When the required temperature is reached, the pump in the solar circuit is activated by the controller and transports the heat to the hot water storage tank or the heating system.
2.Suitable for mains pressure water.
3. Since there is no water in the tubes itself, the tubes will not break in winter.
4.System is reliable and efficient.

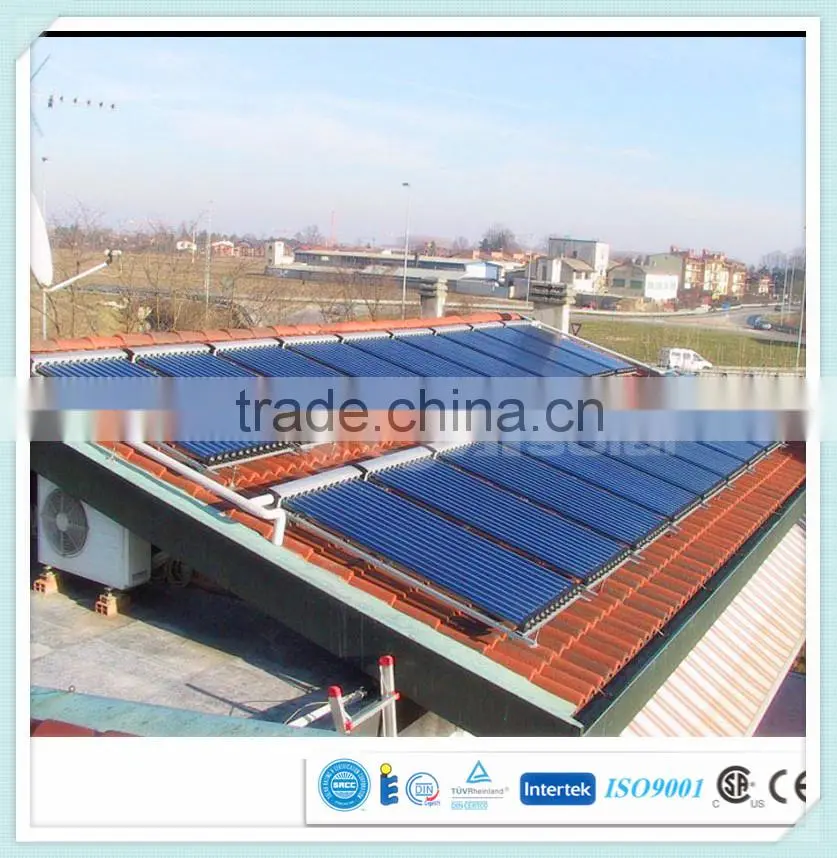

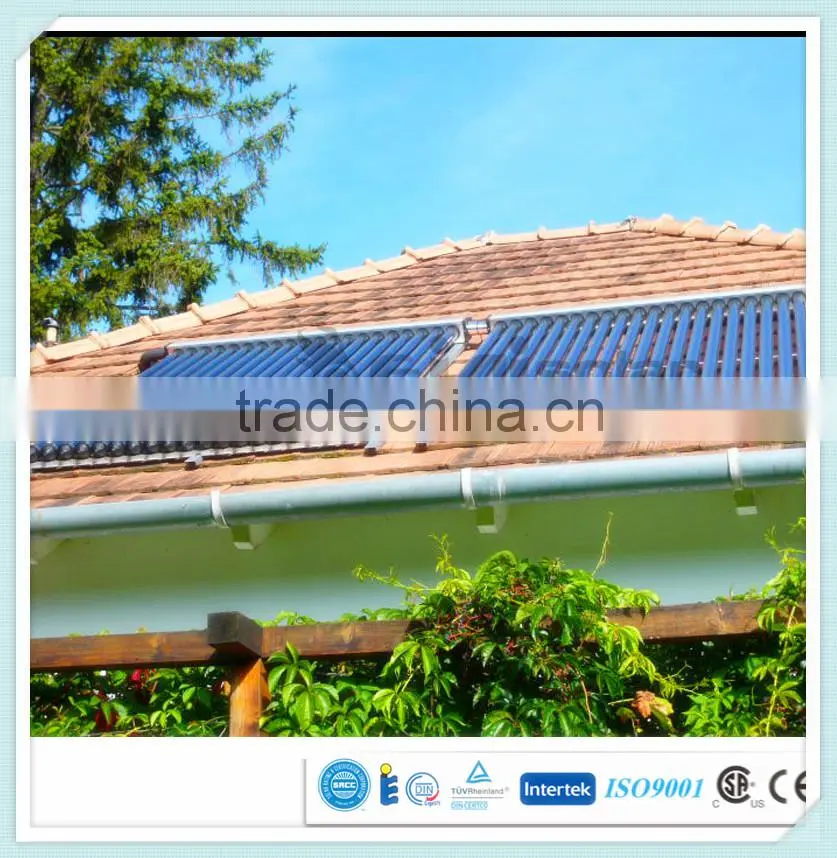

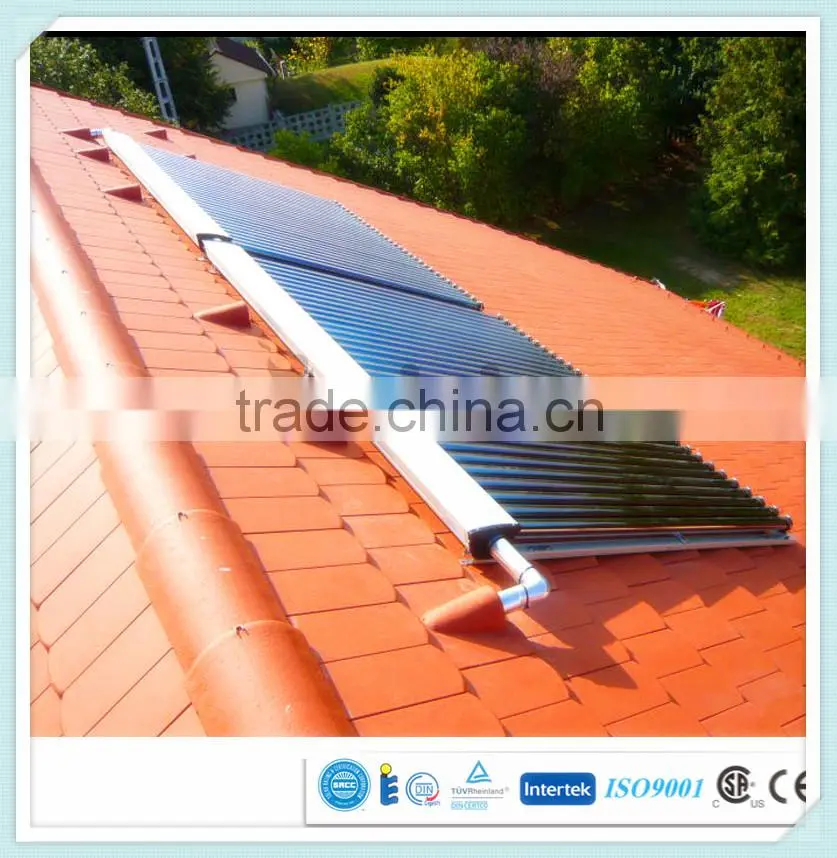

5.The collector is mountable on sloped or flat roofs or on a façade. The installation is the most flexible since it can work well in any installation angle.
6.It can be combined with an existing pipeline.
7.It can be operated even if one tube breaks.
Parameter Table
Remark

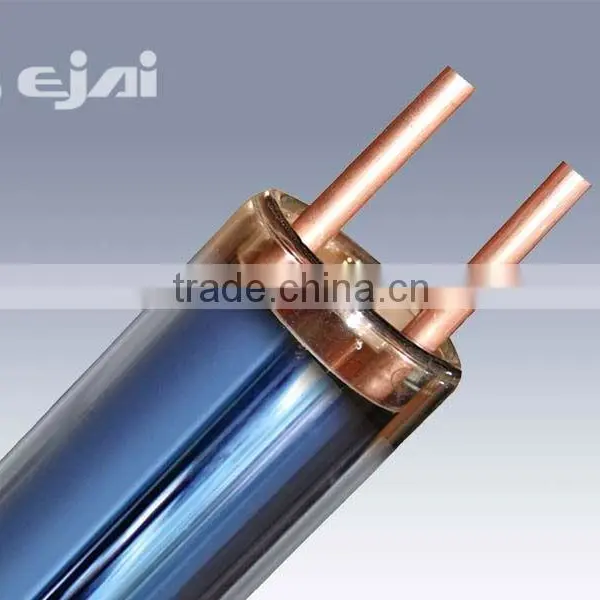

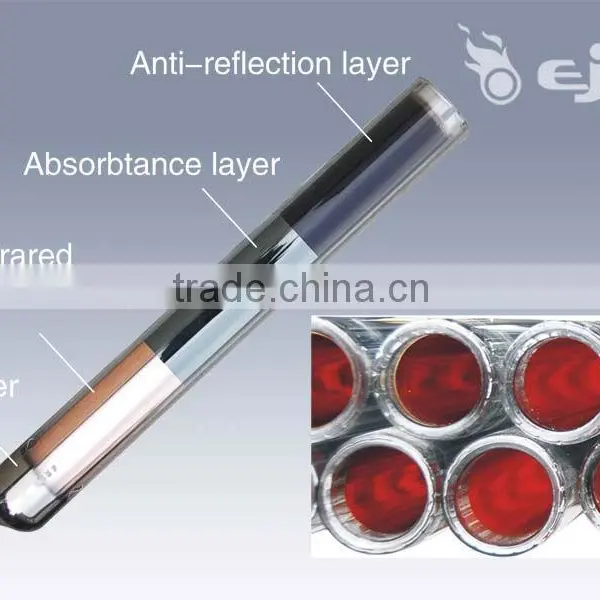

1. U pipe vacuum tube solar collector

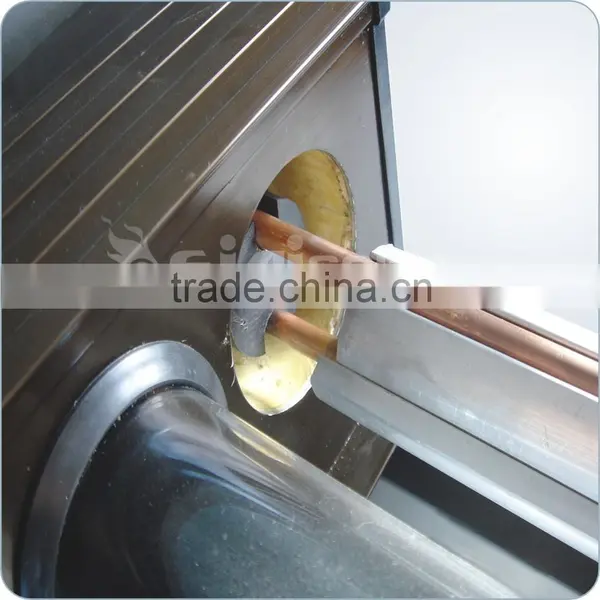

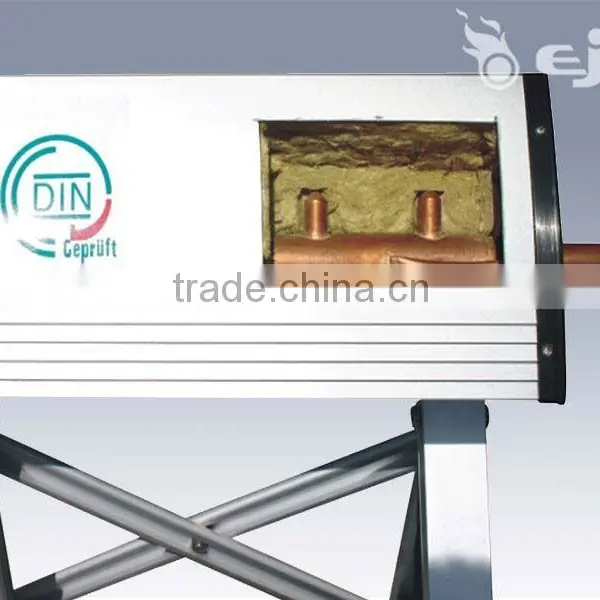

2. Manifold connection:22mm
3. Test Pressure(Pa):1Mpa
