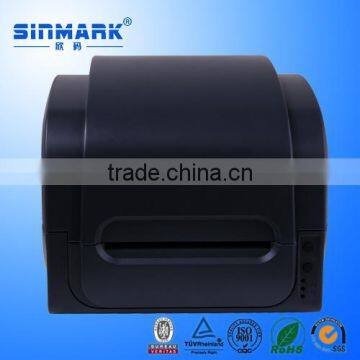

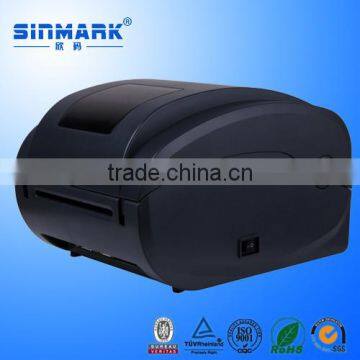

1124T Thermal Label Printer Barcode Printer Bar Code Transfer Printer

Name: 1124T Thermal Label Printer Barcode Printer Bar Code Transfer Printer
Brand: SINMARK
SKU: 100410615
Availability: InStock

US$ 80 - 120 MOQ: 1 Set

Key Specifications

Products Status:

Stock

Type:

Other, Barcode

Style:

Black And White

Shanghai Dengyuan Information Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Type Other, Barcode

Style Black And White

Use Barcode Printer

Interface Type USB

Max Paper Size 108mm(3.18")

Black Print Speed 2~5 inch/s

Color Print Speed No

Max. Resolution 203DPI

Brand Name SINMARK

Model Number 1124T

Place of Origin Shanghai, China

1124T Thermal Label Printer Barcode Printer Bar code Transfer Printer

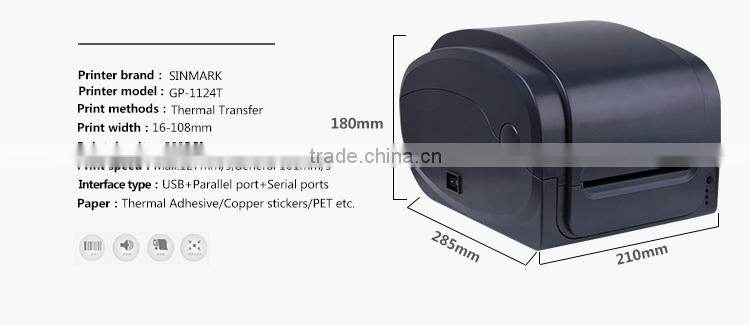

Size

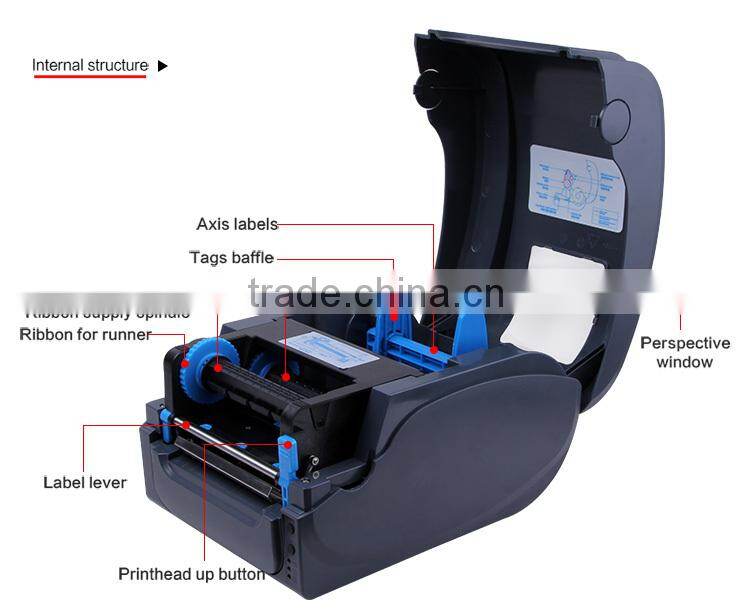

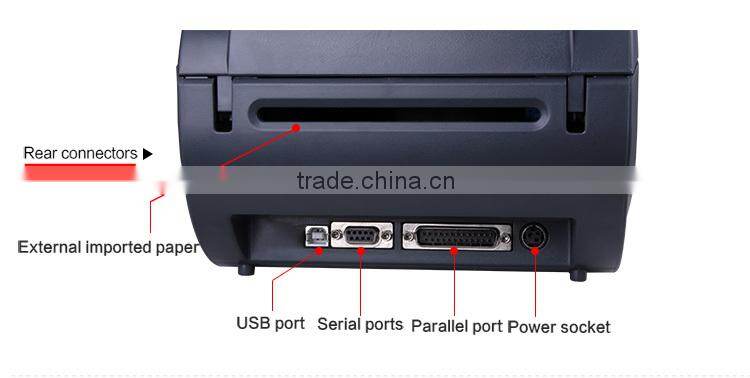

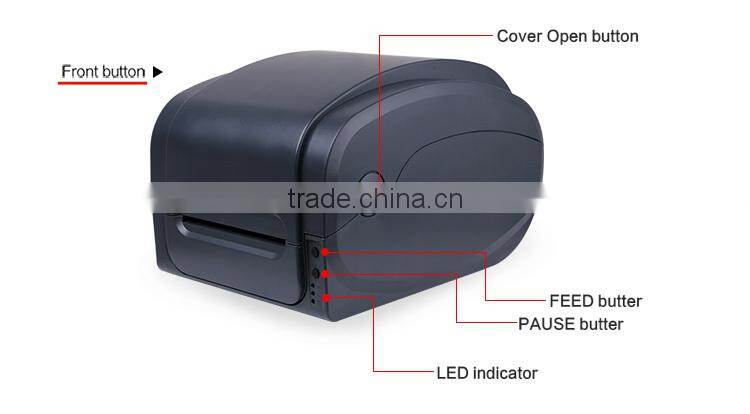

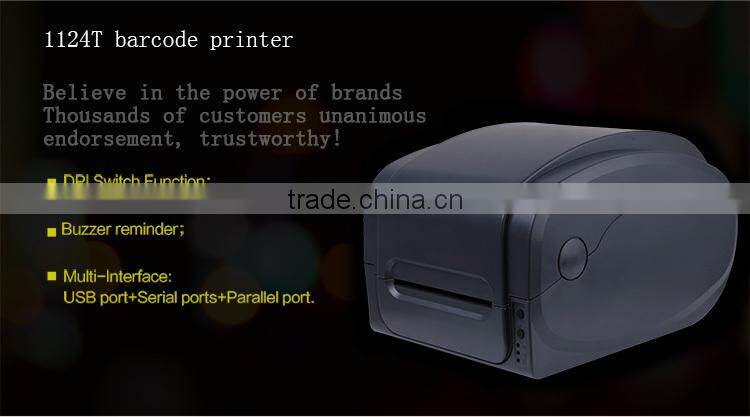

Product Overviews

Applicaitons

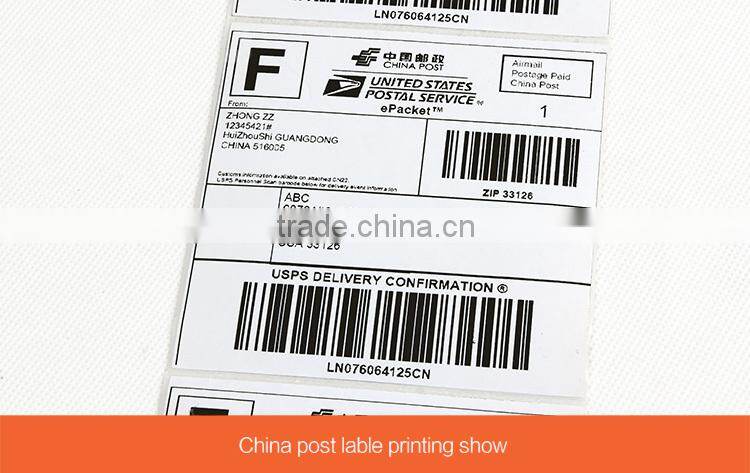

Printing show

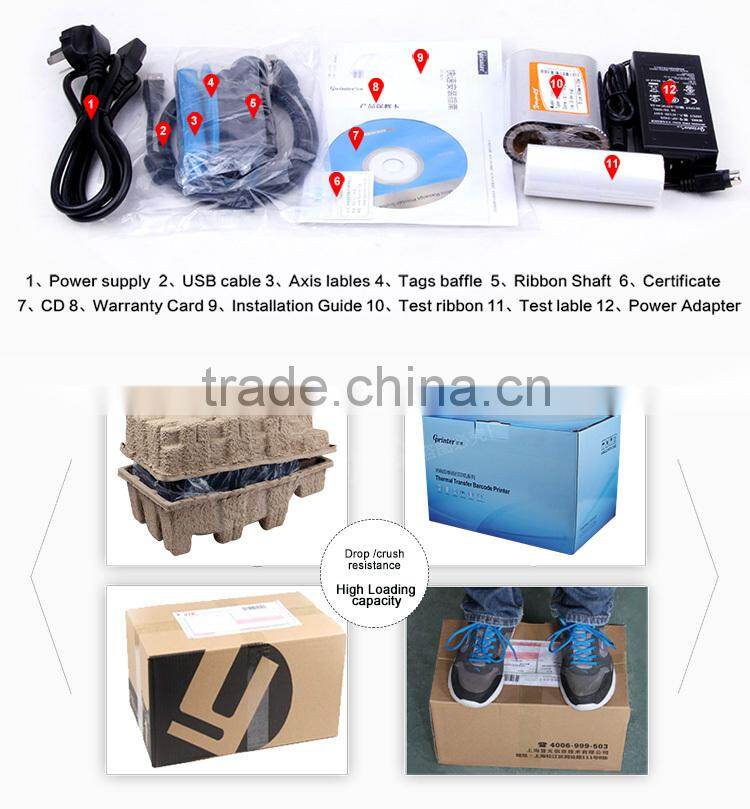

package

Parameters

1124T/1125T
Specifications	Printing Methods	Thermal Transfer/Thermal
	Print speed	2~5inch/s
	Print Interface	4 Interface(Serial ports+USB+Parallel port+Ethernet port)
	Printhead resolution	203dots/inch(8dots/mm)
	Print mode	Ribbon/Thermal
	Print spot size	0.125×0.125(1mm=8dots)
	Maximum print width	108mm(3.18")
	Maximum print length	2286(90")
General Specifications	Printer dimension	285×210×180(WxDxH)
	Printer Weight	2.09KG
	Operating environment	5~45℃(41~104℉),25~85% No condensation
	Storage Environment	-10~50℃(-10~140℉),10~90% No condensation
	Pulsed	1×108pulses
	Thermal piece(Wear)	50KM
	Power supply	Input:AC 110V/240V,Output:DC/24V/2.5A,60W
Ribbon Specifications	Ribbon outer diameter	Max.67mm
	Ribbon length	300m
	Ribbon axis dimensions	linch(25.4mm)
	Ribbon width	Max.110mm,Min.30mm
	Ribbon winding form	Outside roll
Paper Specifications	Built-in roll max outer diameter	127mm(5")0D
	Paper Type	Continuous paper,clearance paper,Folding paper,Black label paper
	Paper twining form	Print-plane roll
	Paper width(Lable+.Backing paper)	Max.120mm(4.72")Min.20mm(0.78")
	Paper thickness(Lable+.Backing paper)	Max.120mm(4.72")Min.20mm(0.78")
	Roll axis dimensions	25.4mm~38mm(1"~1.5")
	clearance paper spacing height	Min.2mm(0.09")
	Label length	10~2286mm(0.39"~90") NOTE: If the label length less than 25.4mm, recommended to use a perforation line in the gap labels to peel off.
	Fittings	Standard external bracket
