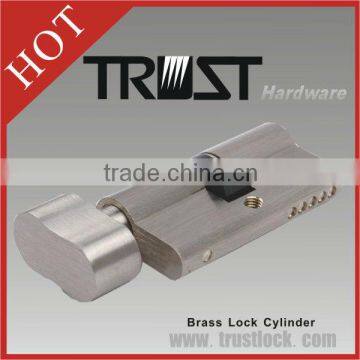

China 60mm B01 Turn Knob Mortise Lock Cylinder

Specifications

china 60mm B01 turn knob mortise lock cylinder
Different size optional
Brass material
Standard Key or computer key optional

china 60mm B01 turn knob mortise lock cylinder



Item:A60SN-B01



"A" mean Standard key ;  "B" mean Computer key

"60" mean Length

"SN" mean Finish

"B01"mean Type of Turn Knob





 Single Cylinder With Turn Knob

Dimesion			CODE
A	B	C	Standard Key	Dimple Key
60	30	30	A60SN-T01	B60SN-T01
65	32.5	32.5	A65SN-T01	B65SN-T01
71	35.5	35.5	A71SN-T01	B71SN-T01
75	37.5	37.5	A75SN-T01	B75SN-T01
80	40	40	A80SN-T01	B80SN-T01
85	42.5	42.5	A85SN-T01	B85SN-T01
90	45	45	A90SN-T01	B90SN-T01







The name classification of the lock cylinder

In accordance with DIN 18 252/09-1999 and EN 1303 standard,continental cylinders are divied into three quality grades:

By the number of pins Grade I & II: 5 pins ;   Grade III:6 pins

Key differ rate

Grade I & II: 1/30000    Grade III: 1/100000

European standard cylinder with multiple device for the maximum security purpose,in addition to the above number and combinnation of  differentpins,there are also some more methods as follows:Anti-drilling protection protection against demolition Increase the security pin.

Note:the above structure is common functon,if customer need special enhanced security performance requirements or other special needs,please specify when ordering.





Determination of the cylinder length

1,The total length of cylinder = door thickness + thickness of the fitting on the outside + thickness of the fitting on the inside

2,Cylinder is equal sides cylinder if it is fitted in the middle of door.

3,Cylinder in unequal sides cylinder if it is notin the middle of the door,

4,The cylinder must protrude only max 2-3mm from the fitting on the outside and inside.







Other kinds of our HOT SELLING brass Mortise Cylinder;











 If you are interested in any of our products,pls feel free to contact me,E-catalog and favourable price will be ready for you!!!
