Home > Products > 110 Wiring Block > 100 Pairs 110 Wiring Block Cabinet Type With Metal Nousing

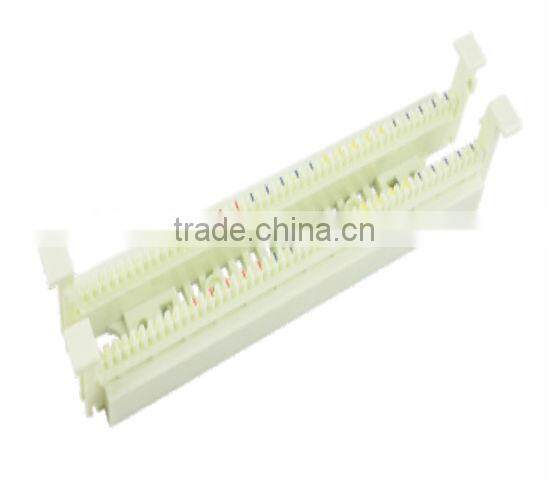

100 Pairs 110 Wiring Block Cabinet Type With Metal Nousing
US$ 1 - 50
/ Piece
50 Pieces(Min. Order)
- Sanghai or Ningbo
You May Like
-
100 Pairs 110 Wiring Block Cabinet Type
-
Rack Mount 100 Pairs 110 Wiring Block Cabinet Type
-
Rack Mount 100 Pairs 110 Wiring Block(with Legs)/ Terminal Block
-
Inside 100 Pairs 110 Wiring Block(with Legs)/ Terminal Block
-
100 Pairs Plastic 110 Wiring Block(with Legs)
-
100 Pairs Plastic 110 Wiring Block(without Legs)
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Jooyi | |
| Model Number | JZ-1005 |
Product Description
Specifications
1).19" rack mount2).Long history of wiring blocks production
3).ISO 9001:2008 certified
4).Competitive Price
Description
ELECTRICAL:
- 1. VOLTAGE RATING: 125 VAC RMS
- 2. CURRENT RATING: 1.5 AMP
- 3. CONTACT RESISTANCE: 100 MILLIOHMS MAX
- 4. INSULATION RESISTANCE: 1000 MEGOHMS MIN at 500 VDC
- 5. DIELECTRIC STRENGTH: 750 VAC RMS 60HZ, 1MIN
MATERIAL:
- 1. PANEL FRAME: CARBON STEEL, POWDER COATING IN BLACK COLOR
- 2. BASE MATERIAL: PC UL94V-0
- 3. CABLE BINDER MATERIAL: PC UL94V-0
- 4. LEG MATERIAL: PC UL94V-0
- 5. IDC HOUSING AND PLATE: PC UL94V-0
- 6.TERMINALS MATERIAL: PHOSPHOR BRONZE T=0.8mm
- 7.WIRE: AWG 24~26
