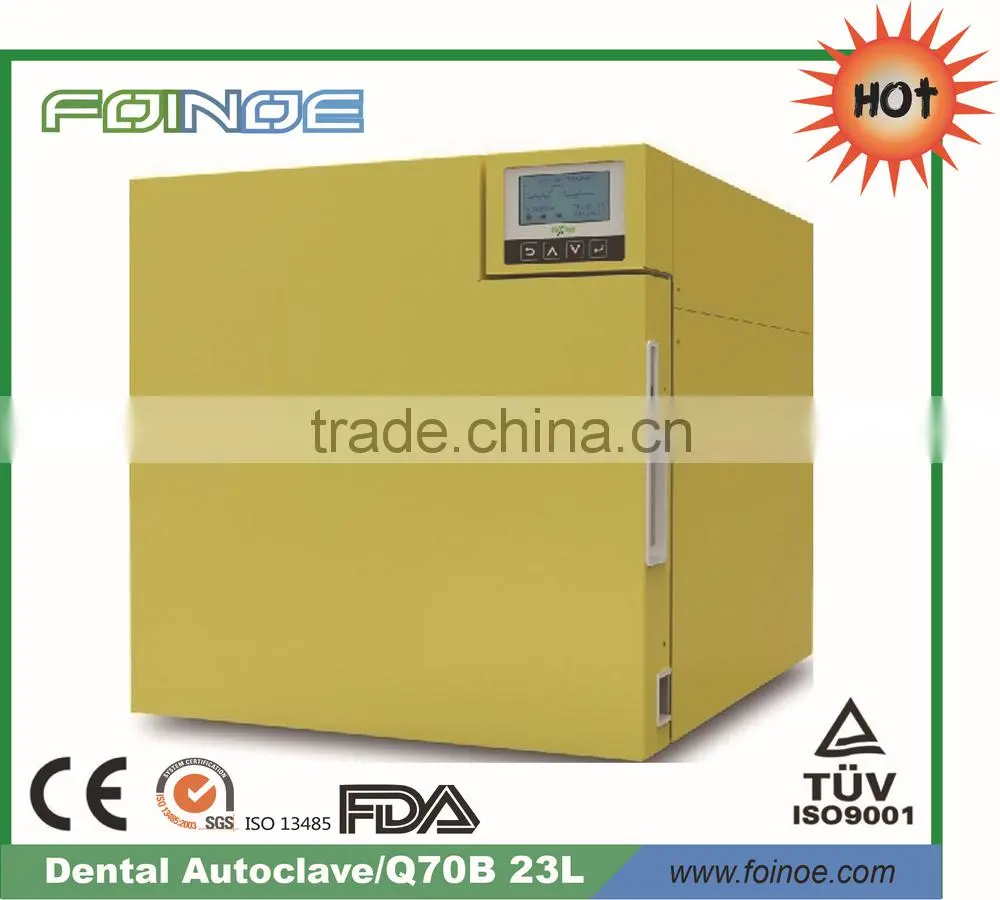

Hot sale autoclave steam drying vacuum
1. This dental vacuum autoclave is a device used to sterilize and sanitize miscellaneous packed or unpacked medical and dental instruments etc, whether solid or A-type hollow, whether with multi-apertures or inset pipes.
2. It can reach high pressure standard steam at 124-135℃ with 3-times pre-vacuum preceding vacuum drying for around 20-25minutes(It depends on the size of the load and concents).
Advantages:
economical type with full metal shell
B class Sterilization
diaphragm pumps
precise temperature sensor
high precise pressure sensor
LCD panel, electronic safety door locks
USB data input and output interface
safety valves, stainless steel steam generator
adjustable and rotatable tray bracket
5trays and high-efficiency air filters
( Optional: external printer)
Specification
Model contemporary line |
Q70B |
Volume |
23L |
Use interface |
LCD display panel |
Door |
Electric locking system |
Dimensions |
680mm*450mm*470mm |
Chamber size |
253mm*470mm |
Weight |
50kg |
Power supply |
220V/50Hz/2500W |
Date interface |
USB/RS232 |
Printer |
Built-in/External Printer(optional) |
Functional Charater
1. Design in German, High Quality
2. Quantus -- Economic Class B Autoclave
Heavy duty autoclave that offer self program control to create different cycle parameters to meet specific instrument processing need.
3. Cost effective pricing with high performance
1). Safety Features
2). Efficient Dryness
3). Precision Control
4). Distilled water monitor
5). USB Port Support
6). Large Memory
4. User Friendly
1). Bright LCD display panel.
2). Display&set up time and date.
3). Alert or alarm if any abnormal is detected during the sterilization process.
5. Cycle flexibility meets different needs
Table Comparison between Different Autoclave Models
Model |
Q70B/Q50B |
Q72B/Q52B |
Q73B/Q53B |
Chamber Volume |
23L/18L |
23L/18L |
23L/18L |
Display Panel |
LCD Screen |
4.3inch TFT color touch screen |
|
Cooling Line |
Air Cooling Line |
Water cooling line |
|
Locking Safety System |
Electrical Locking Safety System |
||
Chamber(diameter*Depth) |
253*460mm/ 253*360mm |
253*460mm/ 253*360mm |
253*460mm/ 253*460mm |
Power Supply |
220V/50Hz/2000W |
220V/50Hz/2500W |
220V/50Hz/2500W |
Data Interface |
2 RS232 and 1 USB |
||
Printer |
External or Build-in (Optional) |
External(Optional) |
External(Optional) |
Maximum Vacuum Level |
-0.8bar |
-0.96bar |
-0.96bar |
Evaporation Residue |
<0.1% |
||
Accuracy of the sensor |
Temperature sensor:0.01;Pressure Sensor:0.0001Kpa |
||
|
External Dimensions (W*H*L) |
460*470*680mm/ 460*470*560mm |
460*450*680mm/ 460*450*560mm |
510*530*700mm/ 510*530*700mm |
Net Weight |
50KG/47KG |
57KG/54KG |
55KG/54KG |
Quantus offers a total of 7 sterilization cycles : standard 121 cycle, stand 134 cycles,quick cycle 1, quick cycle 2, Rubber cycle , Textile cycle and Prion cycle.
|
Pre-vacuum Cycles |
Temperture℃ |
Pressure (bar) |
Sterilizing Time(min) |
Drying Time(min) |
Gen 134 Program |
3 |
134 |
3.1 |
4 |
15 |
Gen 121 Program |
3 |
121 |
2.0 |
16 |
15 |
Quick 1 Program |
3 |
134 |
3.1 |
3.5 |
6 |
Quick 2 Program |
2 |
134 |
3.1 |
3.5 |
10 |
Prion Program |
3 |
134 |
3.1 |
20 |
15 |
Fabric Program |
3 |
121 |
2.0 |
20 |
20 |
Rubber Program |
3 |
105 |
1.2 |
20 |
20 |

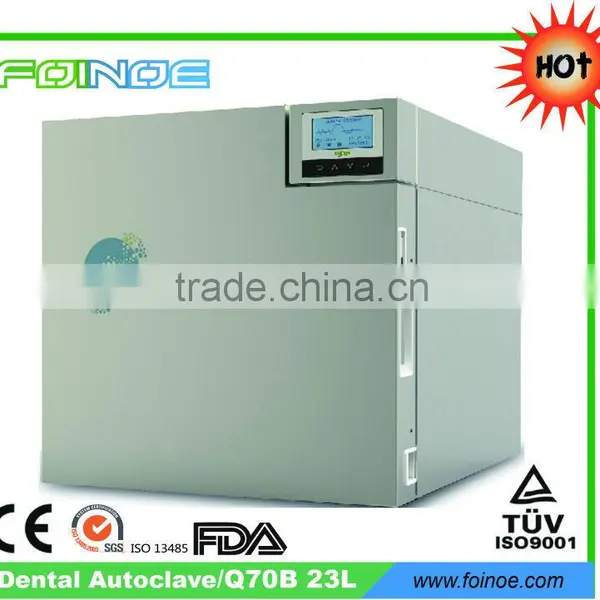

Product Real Photo Display
Optional Autoclave Accessories
1.Water Distiller
2. Ultrasonic cleaner
3.Sealing machine
