Hot Selling High Quality TX6r RFID Digital Hot Stamping Printer Quality Choice

FOB Price

US$ 2,000 - 4,300 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T D/P D/A Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Type	Laser
Style	Black And White	Use	Barcode Printer
Interface Type	Other, RS-232 Serial, 10/100 M-bit Ethernet, USB DEVICE 2.0, USB Host,	Black Print Speed	4 ips (101.6 mm/s)
Max. Resolution	600 dpi	Brand Name	POSTEK
Model Number	TX6r RFID Printer	Place of Origin	Shanghai, China

Product Description

Hot selling high quality TX6r RFID digital hot stamping printer

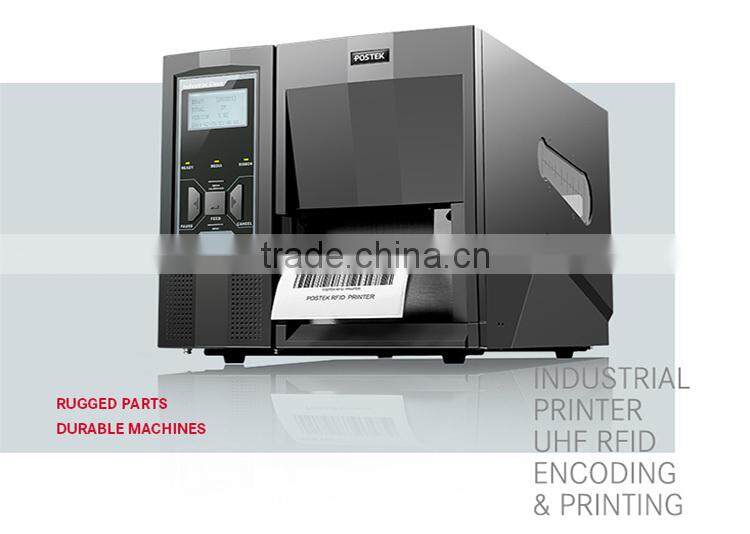

TX6r RFID Printer

Features

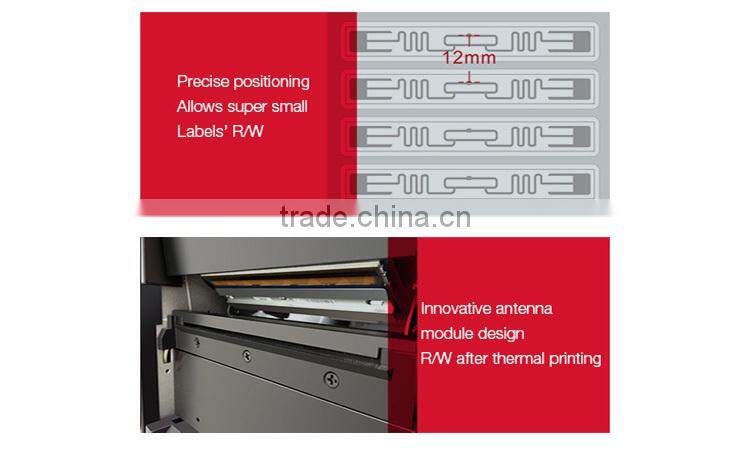

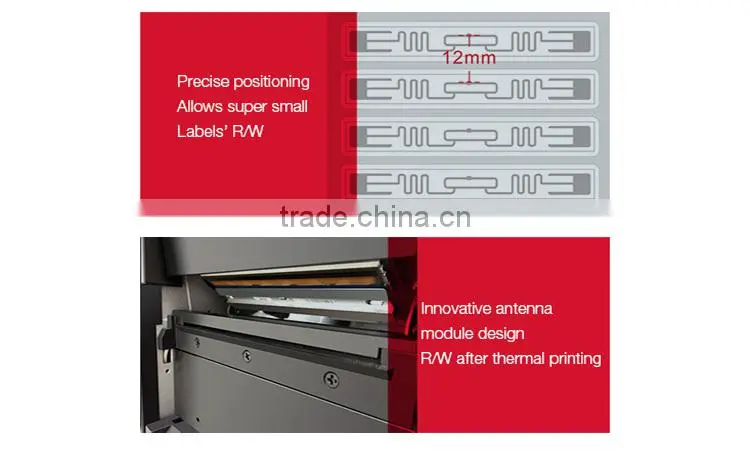

The unique RFID antenna and pioneering RFID module ensure accurate printing and encoding, as well as enabling a 12mm minimum inlay space.
Innovative design on label detection fixes the antenna on the tear-off position. Since each finished label goes through the printhead, it can be read to detect defective labels.

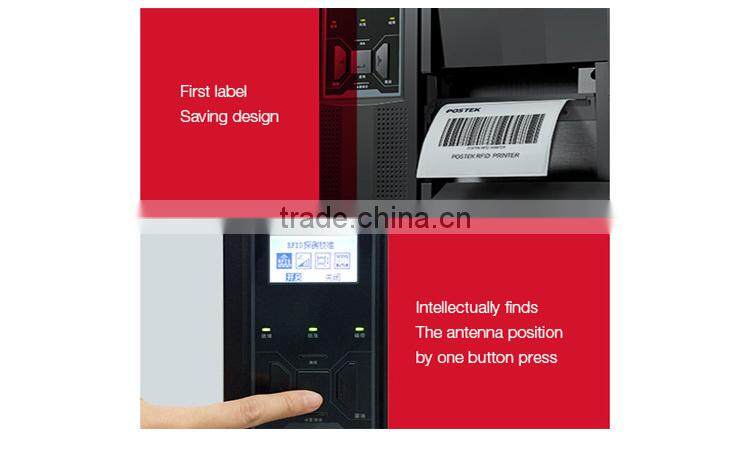

Advanced design allows printing on labels without a margin, resulting in no wasted white space, hence a total print cost savings.
User-friendly design ensures convenience and proficiency by allowing automatic label size calibration and the ability to easily adjust the antenna position through the setup menu.

Advantages

Hot selling high quality digital hot stamping printer

ACHIEVE TOP PERFORMANCE WITH INNOVATION IN RFID PRINTER

Original RFID antenna technology, cooperating with the highest quality RFID Module, TXr Series printer precisely reads and writes to UHF RFID labels, even that the inlay space is super closer.User-friendly design ensures convenience by correctly finding the antenna position and the optimum writing position by just one button press.

Benefits

Reads and writes to UHF RFID tags precisely, the minimum space allowed between inlays comes down to 12mm, which is found to be the smallest in the market and no other printers are capable of.Reading/Writing after printing, helps you to recognize every single bad label. Supports on various types of labels, and not wasting the first label – A great saving! Correctly finds the antenna position and the optimum writing position by just one button press.

Feature

Specification

Printing Method	Thermal Transfer
Printing Resolution	600 dpi
Max Printing Speed	4 ips (101.6 mm/s)
Max Printing Width	4.17′′(106 mm)
Max Printing Length	19.6′′(500 mm)
RFID	Integrated UHF Reader/Encoder, EPC Gen 2 Class1 / ISO 18000-6C
Memory	8 MB FLASH ROM, 16 MB SDRAM

Media	Roll-feed, die-cut, continuous, fan-fold, tags, tickets in plain paper or thermal paper.
	Width: 4.56′′(116 mm) max., 0.98′′(25mm) min.
	Supply roll: OD: 8′′(203.2 mm) max. , ID 3″ (76.2 mm) min.
	Thickness: 0.0024″ - 0.012″(0.06 - 0.305 mm), including liner.
Ribbon	Wax, Wax/Resin, Resin
	Ribbon roll: OD 3.3″ (84 mm) max., ID 1″ (25.4 mm) core
	Max width: 118 mm; Max length: 600 M.
	Ink side: Both In & Out
Media Sensor	Up&Down Reflective (Adjustable) / Transmissive(Adjustable)
Fonts	Five built-in dot martrix ASCII fonts, Downloadable TrueType fonts
Barcode Types	1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2
	and 5 add-on, EAN-13/8/128, UCC-128;
	2D Barcode: MaxiCode, PDF417, Datamatrix, QR Code.
Interfaces	RS-232 Serial, 10/100 M-bit Ethernet, USB DEVICE 2.0, USB Host, Centronics Parallel(Optional)
Power Rating	110/220 VAC±10%, 50/60 Hz
Weight	15 kgs
Dimensions	W 286 mm x D 448 mm x H 280 mm
Operating Environment	Temperature: 0℃ – 40℃ (32°F ~ +104°F); Relative humidity: 5% - 85% non condensing
Storage Environment	Temperature: -40℃ – 60℃ (-40°F ~ +140°F); Relative humidity: 5% - 85% non condensing

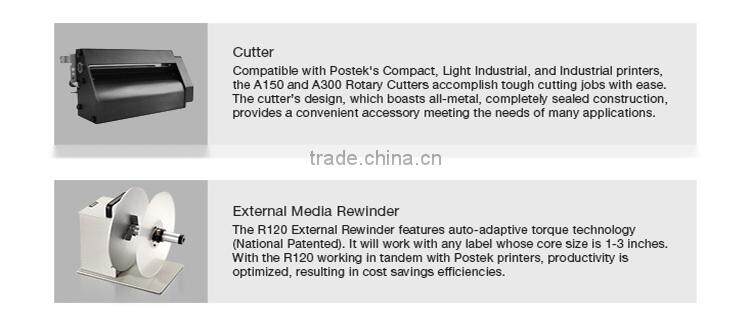

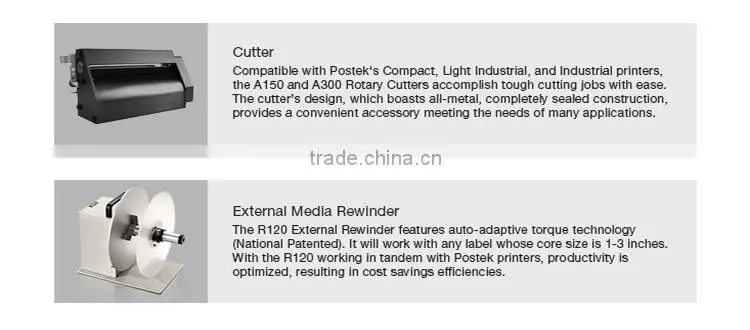

Optional Items	Rotary Cutter, External Rewinder
