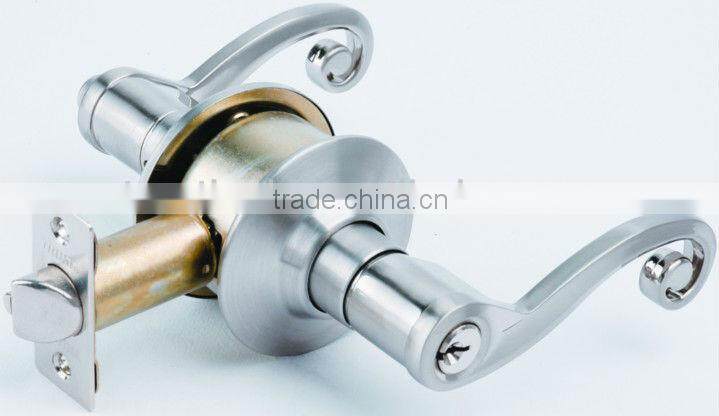

3481SN-ET:TRUST ANSI Grade 3 Cylindrical Lever Lock With Brass Cylinder

Specifications

Cylindrical Lever Lock
Entry,Privacy & Passage Function
Zinc Alloy Lever Handle
Brass cylinder
Durable and High Security

Cylindrical Lever Lock





1.Cylinder: Cylinder precision solid brass, pick resistant 5-pin tumbler.  Must turn key one-quarter to remove and replace cylinder.  Can be construction keyed and master keyed as required.

2.Construction :.Cylindrical body

3. KA: (Keyed alike) with deadbolt to improve security, ie: 3431+7312SS

4.Latch: Fixed latch 60mm(2-3/8") as standard, 70mm(2-3/4") OR adjustable 60/70mm is also available upon request.

5.Faceplate:Changeable square corner 25x57mm standard, radius corner also available

6.Strike: "T" Strike 38x70mm as standard;   Full-Lip Strike also available upon request

7.ROSE: Small Rose(65mm) as standard,M(70MM) & L(75mm) also available
Wrought Brass, Bronze or Stainless Steel

8.THICKNESS: Fit wood or metal doors from 35mm(1-3/8")to 50mm(2")

ANSI Grade 3 guarantee for over 200,000 life cycles

RH (Right handed) as standard, LH (left handed) must be specified when ordering;

For Code: 3411, 3421, 3431 series: Fully reversible for right & left handed door.

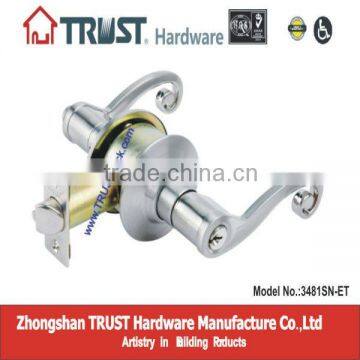

ITEM:3481SN-ET(Entrane Function)













If you are interested in any of our products,pls feel free to contact me,E-catalog and favourable price will be ready for you!
