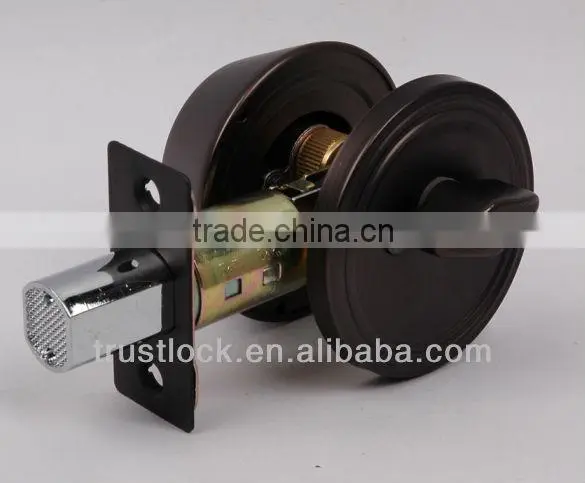

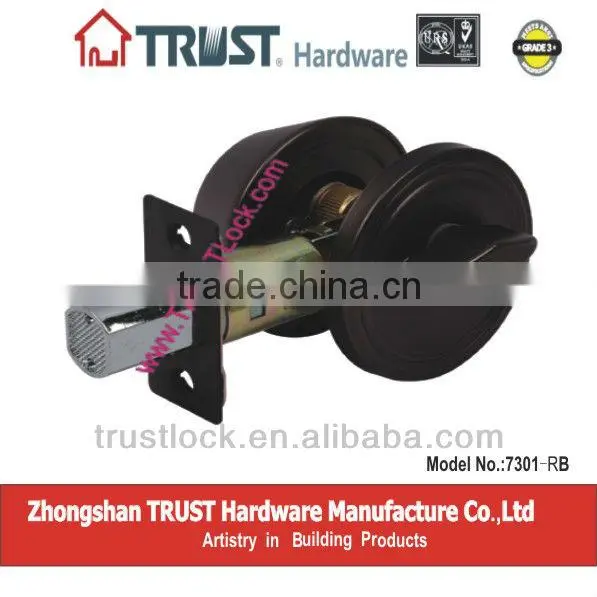

TRUST ANSI Grade 3 Single Deadbolt Lock with brass cylinder

Specifications

Deadbolt Lock
Design for residential house
Brass Material and durable
Easy to install
High security.

Deadbolt Lock



STANDARD DUTY DEADBOLTS - Grade 3.

 Solid brass or stainless steel construction.



1·  Full(1") 25mm throw with anti-saw hardened steel insert.

2·  Adjustable backset 60mm(2-3/8") and 70mm(2-3/4") as standard.

3·  Fit doors 40mm to 50mm(2") thickness, easy to install.

4·  Grade 3: Exceeds 200,000 cycles

5·  Single Square corner latch plate

6·  Finish: SS, PB, AC, AB, CP, SC or required

7·  Pack: Box Pack or View Pack

8. Door Prep:Cross bore 2-1/8”(54mm),Edge bore 1”(25mm),latch face 1”x2-1/4”(25x57mm)

9.Keyway:Schlage c,Kwikset or Yale









Single Cylinder Deadbolt with inside thumb-turn. Deadbolt projected or retracted by use or key outside or inside thumb-turn.
Double Cylinder Deadbolt, deadbolt projected or retracted by key on either side.
Keyless deadbolt operated by thumb-turn inside only. This additional security mechanism can not be seen from outside, therefore when used with a door viewer, is far superior than the normal chain door guard.
