1000M Uplink SFP Module

Name: 1000M Uplink SFP Module
Brand: Baudcom - 1000M uplink SFP module
SKU: 100398561
Availability: InStock

US$ 45 - 100 MOQ: 1 Unit

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Baudcom - 1000M uplink SFP module

Model Number:

BDTR-GB-P1RC

Contact Supplier Request Quote Chat Now

Shanghai Baudcom Communication Device Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

1000M uplink SFP module from Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Baudcom - 1000M uplink SFP module

Model Number BDTR-GB-P1RC

1000M uplink SFP module

Overview

1. Introduction

1000M uplink SFP module is a GEPON Optical Line Terminal (OLT) designed with eight GEPON port, eight Gigabit optical/electrical uplink Interfaces and management port.

By applications with BAUDCOM GEPON Optical Network Units (ONU) series, 1000M uplink SFP module can provide highly effective GEPON solutions and convenient management for Broadband network. BAUDCOM GEPON technology performs high bandwidth up to 1.25Gbps for both upstream and downstream, and up to 20km Long-Distance Coverage between equipment nodes. It is a cost-effective access technology to bring reliable, scalable and flexible network deployment for Triple-play service applications (voip,data,CATV).

The 1000M uplink SFP module is an ideal solution for FTTx applications. The 1000M uplink SFP module can connect 256/512 remote ONU mostly (by 1:32/1:64 splitter),which can minimize the investment cost for carriers. By using the advanced technology in the telecommunication industry, the BD-OLT-8000 will also provide strong functionalities for Ethernet features such as QoS, VLAN, Multicast, DBA (Dynamic Bandwidth Allocation), and Access Control List.

The 1000M uplink SFP module combine the advanced industrial design and manufacturing technology by mini designing.It is high reliability, flexible and easy for installation and maintenance. The 1000M uplink SFP module is ideal for FTTB/FTTP/FTTH access solutions.

1000M uplink SFP module

Feature

High density, flexible networking

PON maximum support 4 PON cards, each card has 2 or 4 PON port, Up to 8 or 16 PON ports can be supported in

Highly reliable case, strong adaptive capacity to environment

2U case, modular design

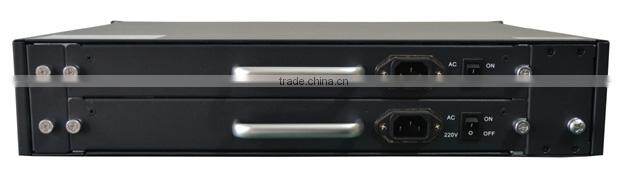

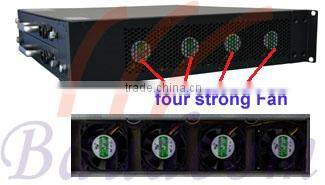

Redundant power, redundant fans

Layer 2 aggregation switching

Layer 2 wire-speed forwarding; support rich layer 2 protocols

8K MAC address list in Leaflets PON board

8 uplink ports, support up to 4G uplink bandwidth via port aggregation function

Uplink port supports copper SFP modules (1000Base-T) and optical SFP modules, which can be freely configured

Perfect network management function

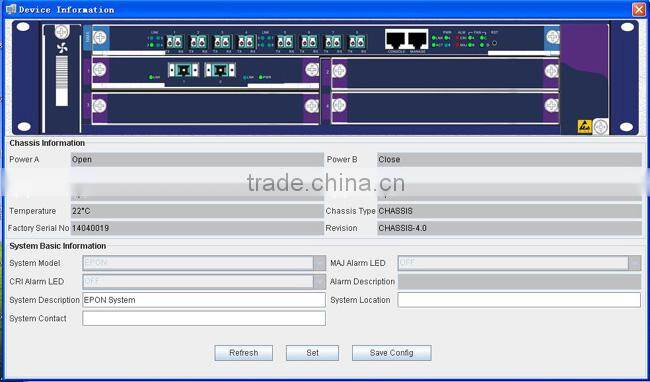

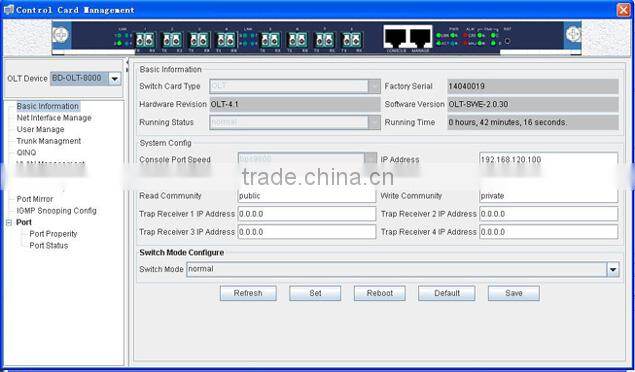

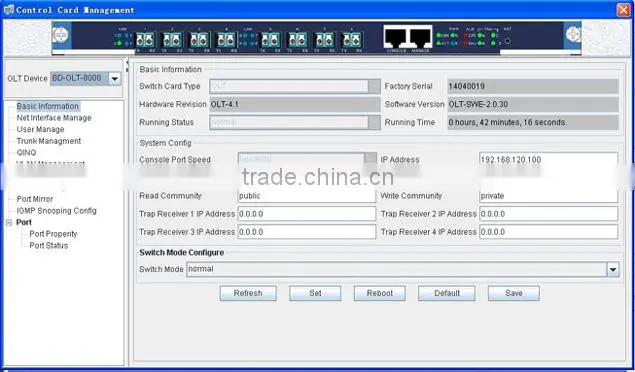

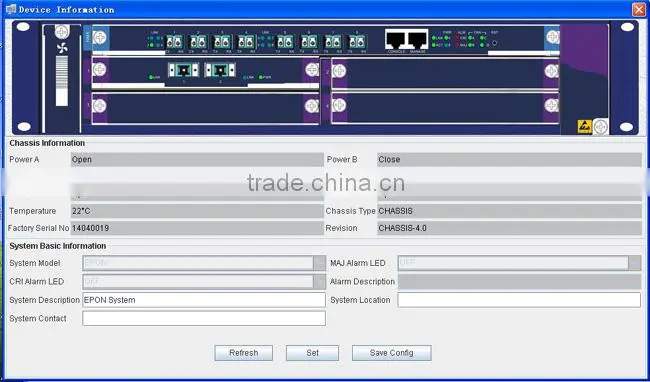

Support SNMP and WEB interface management

Rich OAM function

Support ONU automatic identification, automatic finding, and automatic registration

Support the function of automatic loop back test to single link

Strong VLAN function, including VLAN Stacking, Trunk, Translation, flexible QINQ

Support flexible controllable multicasting, support IGMP snooping

Specification

System Capacity

wire-speed switching 64K MAC list

4094 VLANs

Max 4 PON uplink cards, each having 2 PON uplink ports - total capacity - 8 ports

Max 8 GE interface ports as SFP slots. Any standard 1.25 G SFP module can be used.

Max 64 ONUs support per PON port

MAIN Interface

8 ports fixed, SFP GE

NMS management port

Uplink ports can be connected to third party VoIP Softswitches what support SIP protocol and operates with BAUDCOM new SIP ONU!

More specifications:

1 Gbps transmission rate

Network reach: 20 km

Transmitter power: 2.5dbm to 7 dbm

Receiver sensitivity: <=-39dBm

Security: ONU authentication

Distance 20 km

Max 64 ONUs support per PON expansion module

Supports 802.3 MPCP protocol;

Supports 802.3 OAM and expanded (slave port) protocol, have abundant OAM function design and offers long distance managment through OLT.

Double channel independent OLT;

Remote software upgrade supported

Data encryption service for downlink, secure data transtion security for end users

ONU authentication, averts illegal ONU access to network

DBA dynamic bandwidth allocation

Single ONU multi LLID registration

IGMP proxy supported

ACL functions supported

QoS functions supported

4K MAC adress with single channel OLT

VLAN's devided by LLID

Suitable for FTTH, FTTB and FTTx

Loads of various statistic information

Hot swap possibility for cards Managed by SNMP/Friendly GUI/Telnet

Power Supply	OptionI:DC-48V,range DC-36V~DC-72V
	OptionII:AC220V,range AC165V~AC240V
	Power Consumption: <=70 Watts
Environment condition	Operating temperature: 0°c~+50 °c
	Storage temperature: -20 °c~+70 °c
	Relative Humidity:95% (uncondensed)
Dimension	482.6mm(W) x 400mm(D) x 86.1mm(H) 2U high,19inch rack mounting
Ordering information	BD-OLT-8000-C 8ports OLT chassis,4PON card slots,18port uplink card slot,2U high,19",Double power AC 220V or DC48V,4 fans.
	OLT-8000-M OLT Switch Control Module,with 8ports uplink port (optical or electrial)
	OLT-8000-2PON OLT PON card with 2 Pon ports
	OLT-8000-4PON OLT PON card with 4 Pon ports

Application

8/16 Ports GEPON OLT Access System GEPON

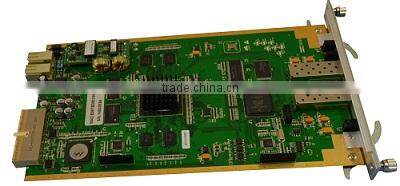

PON card

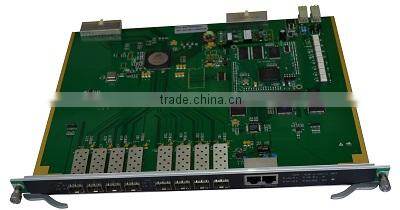

Control and uplink card

EMS Network management based on standard SNMP

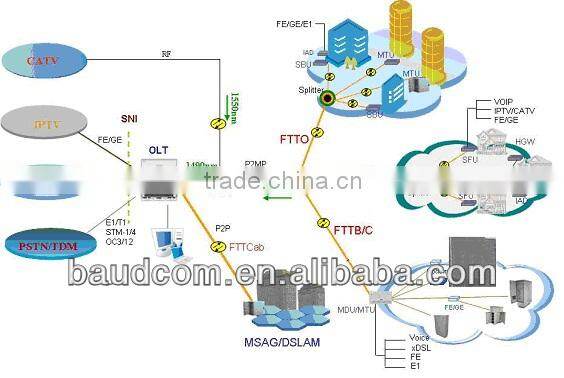

Application diagram

WHY CHOOSE US Baudcom

1. Baudcom has been working hard in supplying various GEPON products for 7 years

2. Getting trusted by more and more customers home and abroad

3. One of the most reliable GEPON distributors for brands like Cisco Finsar brocade etc in China

4. Stable channel ensures the products quality and competitive pricing

We look forward to reaching a cooperation with esteemed your company, by providing the top-class quality products and 100% whole-hearted services!

FAQ

1.How can i get a sample ?

You need place sample order to us.We will arrange the sample production for you.

2.Could you do design for us?

Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.

3.How can we place order?

After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.

If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.

4.How about the shipping?

For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.

6.what's your products' advantages ?

A. good quality and competetive prices.

B. Strictly quality control when producing.

C. Professional team work, from design, development, producing,assemble,packing and shipping.

D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.

Packaging&Shipping

The devices will be well packaged by carton with Foam or other shock proof materials.

Certification

Factory Production

Product Testing

Order Information

BD-OLT-8000-C	8ports OLT chassis,4PON card slots,18port uplink card slot,2U high,19",Double power AC 220V or DC48V,4 fans.
OLT-8000-M	OLT Switch Control Module,with 8ports uplink port (optical or electrial)
OLT-8000-2PON	OLT PON card with 2 Pon ports
OLT-8000-4PON	OLT PON card with 4 Pon ports
BD-4311S-E2CDA	EPON OLT SFP transceiver, Tx1490nm/ Rx1310nm ,1.25Gbps/1.25Gbps, 1000BASE-PX20
BDTR-GB-P1RC	uplink SFP module,10/100/1000M,copper SFP,1000Base-T

After Sales Services

The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field. Your any questions will be responsed within 12hours!
