Gigabit Ethernet to STM-4 Optical Fiber Multiplexer
Gigabit Ethernet to STM-4 Optical Fiber Multiplexer (BD-EOS-GE/STM-4 in short hereafter) takes SDH technology as its core to provide access, convergence, transmission and management functions of TDM services and broadband IP services, and is a device for comprehensive access conversion in the applications of conventional telecommunicating services and broadband data services.
The Gigabit Ethernet to STM-4 Optical Fiber Multiplexer is an Ethernet over SDH interface conversion equipment supplied with two STM-4 optical interface, two electrical Ethernet and two Optical Ethernet interface.
The design of Gigabit Ethernet to STM-4 Optical Fiber Multiplexer complies with ITU-T and the relevant SDH specifications issued by Ministry of Information Industry, China.
The BD-EOS-GE/STM-4 carries the data services via the container in SDH, realizing the gigabit Ethernet over SDH.
The device applies 19" rack of 1U high, which can be placed on the desktop or installed in a cabinet of 2.2m or 2.6m high, and can directly drive the top-mounted aural-visual alarm unit.
The device can be powered by three power choice: AC 220V, DC -48V, and AC 220V with DC-48V backup.
- Providing standard STM-4 optical interface that complying with G.707 standard;
- Providing two electrical gigabit Ethernet ports and two optical gigabit Ethernet interface(optional);
- Of excellent synchronous characteristics;
- With DC-48V/AC220V optional for power supply;
- Providing two optical STM-4 interface and two optical gigabit Ethernet interface;
- Appling a rack with height 1U and width 19'', can be set on the desk or mounted in a cabinet or rack of height 2.2 m or 2.6 m;
- The optical interface are SFP;
- Supporting CLI management;
- The device provide rich alarm indicator;
Ethernet Interface | |
Interface type |
10/100/1000M Base-Fx |
Port specification |
In accordance with IEEE802.3 10/100/1000M Base-Fx standard |
Transmitting code speed |
1000Mbps |
Type of connector |
SC/FC/LC(can be chosed by customer) |
Transmit distance |
0-120Km |
STM-4 Optical Interface | |
Optic interface velocity |
Optic STM-4, G.957, Frame structure G.707 |
Interface code type |
In accordance with the codes stipulated in G.957 |
Digital signals |
In accordance with G.707 and G.958 |
Type of optical connector |
LC/SC |
Central wavelength |
850 or 1310 or 1550 nm |
Optional transmitting distance |
0~40km (40~120km,to be customized) ( Single-Mode) 0~2km (Multi-Mode) |
Mechanical Specifications | |
Rack Mounting |
Standard 19-inch DIN rack |
Dimension |
Desktop type : 440mm(L)*340mm(D)*43.5mm(H) |
Management | |
Supporting CLI management; |
Power Supply | |
Input AC/DC voltage |
-48V DC ( nominal ) / AC also available |
Range of input |
-36V to -72V DC /90V~260VAC |
Temperature |
0 centi degree to 55 centi degree |
Humidity |
95% RH (non-condensing) |
Cooling |
Convection Cooling |

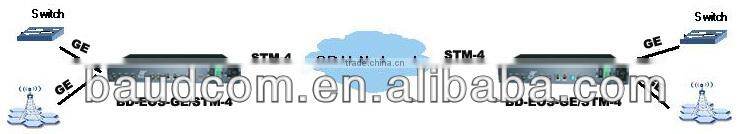

Application
FAQ
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certification
Order information | |
BD-EOS-GE/STM-4 |
Gigabit Ethernet over STM-4 converter, two optical gigabit Ethernet;Two electrical gigabit Ethernet, two optical STM-4 port, power AC220V or DC48V |
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field. Your any questions will be responsed within 12hours!
