High Quality Multi-service SDH/MSTP Multiplexer
US$ 45 - 65
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Baudcom
Model Number:
BD-MUX04-LMXE
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
STM-1 Photo Electric ConverterUS$ 800 - 1,500MOQ: 1 Unit -
EOS Ethernet Over SDH STM-1 MUXUS$ 300 - 460MOQ: 1 Unit
-
155M Stm-1 to Ethernet ConverterUS$ 300 - 460MOQ: 1 Unit
-
Dual Fiber 20km Ethernet STM-1 Optical SDH MultiplexerUS$ 385 - 475MOQ: 1 Unit
-
Baudcom Stm-1 Optical to Stm-1 Electrical ConverterUS$ 800 - 1,500MOQ: 1 Unit
Place of Origin
Shanghai, China
Brand Name
Baudcom
Model Number
BD-MUX04-LMXE
Overview:
High quality Multi-service SDH/MSTP multiplexer / BD-MUX04-LMXE+ is a carrier-class, cost-effective, compact (only 3U high), STM-1/STM-4/STM-16 SDH/MSTP platform that is designed for application in metro and access networks to facilitate the efficient transport of traditional TDM and emerging data traffic for service providers. It is derived from BD-MUX04-LMXE. The difference is that, BD-MUX04-LMXE+ has PCM function and interfaces while LMXE has only SDH and PDH interfaces.
High quality Multi-service SDH/MSTP multiplexer /BD-MUX04-LMXE+ is a card based compact SDH equipment, designed mainly as a gateway node between the core SDH network and a number of remote CPE boxes. It may also be used as a multi service SDH ADM node in a typical ring or mesh network. The 3U high 19 wide chassis of the BD-MUX04-LMXE+ has 19 slots, with 2 slots for the 1+1 power cards, 1 slot for network management card, 2 slots for aggregation(uplink) cards, and 14 slots for service(downlink) unit cards.
Uplink cards support STM-16/STM-4/STM-1 optical interface and STM-1 electrical interface. Service cards support E1/V.35/E3/DS3/FE/GE/FXO/FXS/4W/E&M/OW/RS-232/V.24/ RS-422/485/V.11.
Features:
| 1 | Support up to STM-1/STM-4/STM-16 |
| 2 | SDH/PDH/PCM all integrated |
| 3 | Large cross-connect matrix capacity is 96*96 high order VC-4 cross connection or 2016 2016 VC-12 or 96*96 VC-3 level full cross connection |
| 4 | Support 1+1 MSP, SNCP protection |
| 5 | Management channel can be DCC/E1/VC12 |
| 6 | Clocking mode supports: internal clock / external clock / line clock / clock holdover |
| 7 | Ethernet service supporting GFP encapsulation, VC12 virtual concatenation and LCAS, P VLAN and 801.1Q VLAN |
| 8 | E1 BER tester is embedded |
| 9 | Support up to 110 Ethernet over 8*E1 (EoPDH or EoE) remote CPEs |
| 10 | Support up to 756 Ethernet over 1*E1 (EoPDH or EoE) remote CPEs |
| 11 | Support up to 110 Ethernet over VC-12 (EoSDH or EoS) remote CPEs |
| 12 | Online upgrading |
Technical specification:
Index |
Performance Parameter |
|||
Max |
STM-1 |
4 aggregation + 28 tributary STM-1 optical interfaces |
||
STM-4 |
4 aggregation + 4 tributary STM-4 optical interfaces, SFP |
|||
STM-16 |
4 aggregation STM-16 interface, SFP |
|||
Connector |
SC/PC or FC/PC or SFP |
|||
Spec. |
S-1.1, S1.2, L-1.1, L-1.2, S4.1, S4.2, L4.1, L4.2, S16.1, S16.2, L16.1, L16.2 |
|||
Single fiber bi-directional interface can be optionally supported | ||||
PDH interface |
Max E1 |
336 E1 |
||
Max E3/DS3 |
14 E3/DS3 |
|||
Ethernet |
Interface |
10/100Base-Tx or 100Base-Tx, Comply with IEEE 802.3 |
||
Max FE/FX Interface |
56 FE ports (14 FE01 or FE02 cards support) |
|||
Encapsulation |
Comply with ITU-T G.7041 (VCAT, GFP, LCAS) |
|||
GE(electrical/optical) |
14 GE ports(14 GX01A/GX02A) |
|||
V.35 |
Max Interface |
28 V.35 interfaces (framed or unframed) DCE/DTE |
||
PCM interface |
Max voice interface |
140 FXO/60 FXS/140 4W/60 magnet telephone/60 hotline |
||
Max asynchronous interface |
224 RS-232/ 28 RS422/ 224 V.24/ 28 V.11 |
|||
|
Cross-connect Capacity
|
Uplink STM-1 |
High order 20 20 VC-4s
Low order 1260 1260 VC12s
|
||
Uplink STM-4 |
High order 32 32 VC-4s
Low order 2016 2016 VC-12s
|
|||
Uplink STM-16 |
High order 96 96 VC-4s
Low order 2016 2016 VC-12s
|
|||
Management |
Interface |
10/100 Base-T (can be cascaded) |
||
EOW interface |
Standard socket RJ11 |
|||
Physical Dimension(H/D/W) |
3U: 136 240 440 (mm) |
|||
Power |
Supply |
-48V DC / ~110 V AC/ ~220V AC |
||
Power redundancy supported | ||||
Consumption |
=100W |
|||
Cooling system |
fan embedded |
|||
Environment |
Temperature |
0~50 |
||
Humidity |
=90 %(non-condensing) |
|||
Weight |
=8 kg |
|||

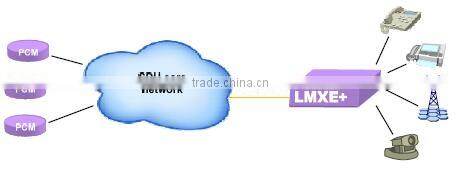

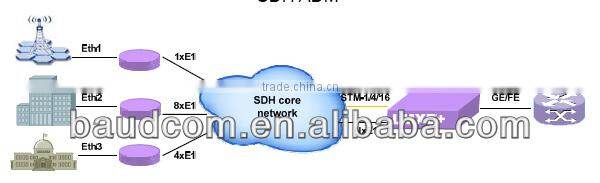

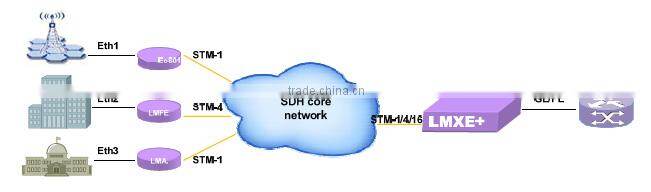

Application
