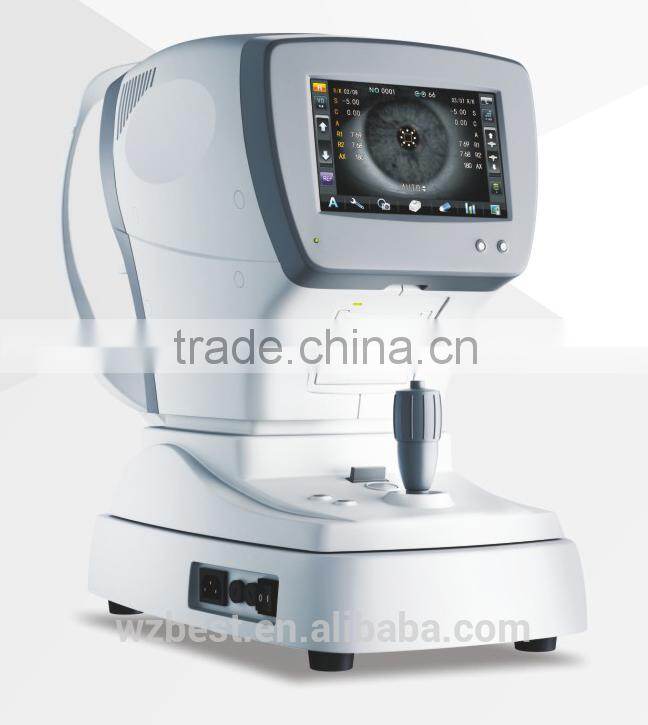

Auto refractometer keratometer FA6500

Specifications

auto refractometer keratometer. bigger,better monitor,icon display in 7" tft lcd.A motorized joystick with auto tracing



• We are offering auto refractometer keratometer. Measured more quikly because the technology of buile-in micro process and quick graphic process.bigger,better monitor,icon display in 7" TFT lcd.
  A motorized joystick with auto tracing, mode is adopted so operation is easier,

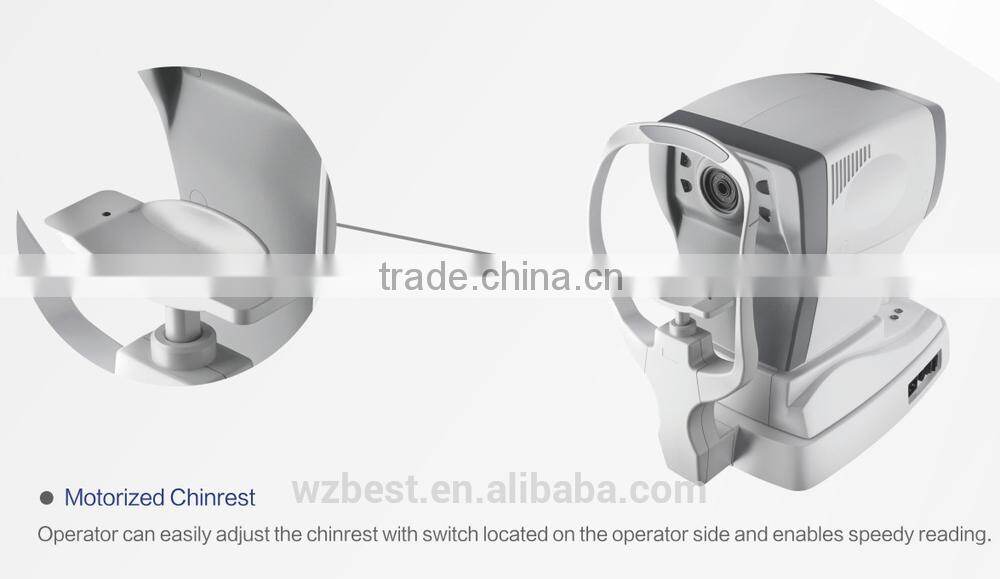

  motorized chinrest, can easily adjust the chinrest with swith located on the operator side and enables speedy reading
  tilt screen function that allows wide variance of access whether the operator is sitting or standing

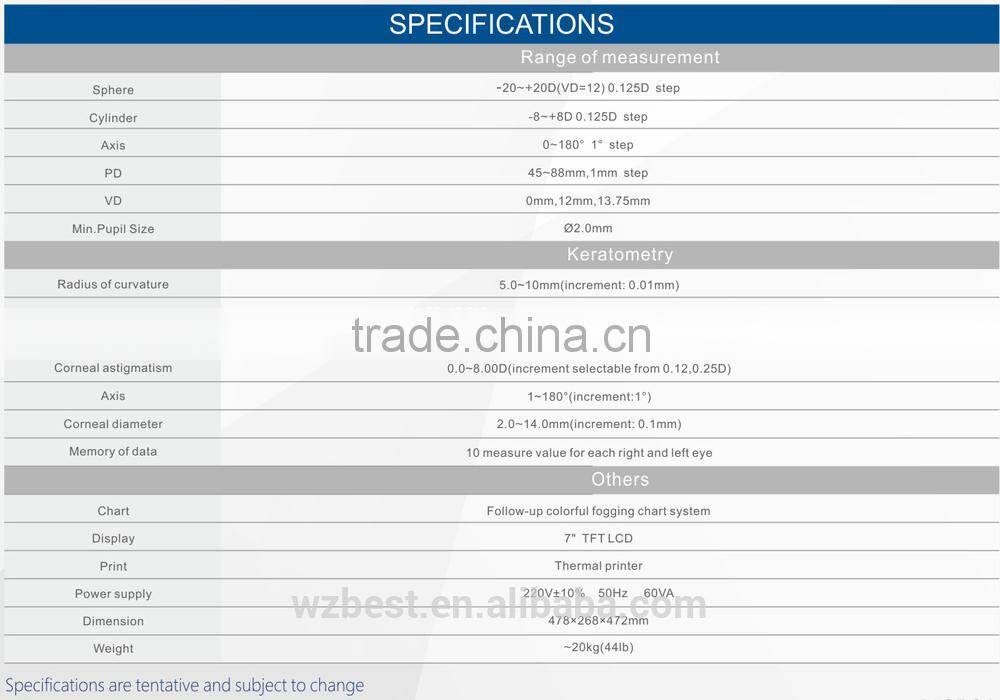

  specifications

  measuring range
  spherical -20~+20d(vd=12) 0.125dsteps

  cylinder -8~+8d 0.125d steps

  axis 0~180°,1°steps

  pupil distance
  45~85mm, 1mm steps

  vertex distance)
  0mm, 12mm, 13.75mm

  min.pupil size
  ø2.0mm

  chart
  auto fog

  keratometry

  radius of curvature: 5.0~10mm (increment:0.01mm)
  corneal power: 33.75~67.50d (when corner equivalent refractive index is 1.337)( increment selectable from 0.12,0.25d)
  corneal astigmatism:0.0~8.00d (increment selecable from 0.12,0.25d)
  axis 0~180°,1°steps
  corneal dismeter: 2.0~14.00mm (increment:0.1mm)
  memory of data: 10 measure value for each right and left eye

  display
  7" tft lcd
  print
  thermal printer

  power supply
  100~120v200~240v, 5060hz

  dimensions
  478(l) x268 (w) x472 (h) mm·mm·mm

  weight
  ~20kg(44 lb)
