Product : one RS232 port over fiber optical modem AC220V or DC48V
The Made in China Rs232 over fiber modems (RS232 / RS485 / RS422 Series) is RS232 to fiber converter which realizes transmission of the RS232 signal on fiber. This product has solved the problem of contradiction between communication distance and communication rate of RS232 port. At the same time, it also has solved the problem of electromagnetic interference, earth link disturbance and thunder/lightning destruction, thus greatly enhancing reliability, security and privacy of data communication. The Top Product RS232 To Fiber Modem (RS232 / RS485 / RS422 Series) can be widely used in various kinds of situations such as industrial control, process control and transportation control, and especially suited in bank, electric power as well as departments and systems which have special request to the electromagnetic interference environment.

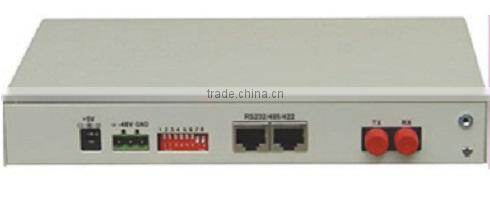

Made in China Rs232 over fiber modems picture:
Top Product RS232 To Fiber Modem (RS232 / RS485 / RS422 Series)
- Based on self copyright IC.
- Serial date creates receive and send signal automatically.
- RS232/RS485/RS422 interface can be optional by dip switch.
- Serial port supports 0-115.2KBps baud rate auto-negotiation.
- Combination of PDH technology and digital lock loop clock technology.
- Unique serial port for circuit protection, supporting hot-plugging.
- Data transmission is stable and reliable with integrated light-receiving and transmitting module.
- Complete surface paste and install craft, industrial grade design, and production-runs with piece-pasting machine.
| Optical interface | |
| Wavelength: | single-mode: 1310nm/1550nm,multi-mode :850nm/1310nm for option |
| Fiber core number: | double core/single core for option |
| Sending consumption: | -9dBm/-5dBm |
| Transmission range: | 0-50km/120km for option |
| Receiving sensitivity: | <-36dBm (BER <10-11) |
| Fiber Connector: | SC/FC/ST |
| RS232 port | |
| Characteristic: | satisfies ITU-T V.24 V.11 standard |
| Connector: | RJ45 |
| Rate: | asynchronous mode:0-115200bps auto-negotiation |
| Environment:The device operate temperature range wide, can work normally and stable in different environments, No causticity and impregnant gas, no rising dust, and no strong magnetic field disturbing | |
| Operate temperature: | 0°c~50°c |
| Relative humidity: | 95% (no condensation) |
| Power supply | |
| DC-48V | voltage range -36V~-72V |
| AC220V | voltage range 175V~265V |
| power consumption: | <5w |
| Dimension: | 85(W)×121(D)×27(H)mm |
Application diagram
FAQ
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
WHY CHOOSE our Baudcom
1.Baudcom has been working hard in supplying various Communication products for 14 years
2.Getting trusted by more and more customers home and abroad
3.One of the most reliable communication device distributors for brands like Cisco Finsar brocade etc in China
4.Stable channel ensures the products quality and competitive pricing
We look forward to reaching a cooperation with esteemed your company, by providing the top-class quality products and 100% whole-hearted services!
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
