Product: high quality 1.25G fiber optic module
Baudcom 1.25G fiber optic transceiver is a series Single mode fiber module designed for optical data communication applications. It is electrically compatible with the two fibers MSA transceiver.
The transceiver can achieve up to 40km point-to-point multimode fiber application, the transceiver modules support data rates up to 1250Mbps.
The transceiver module supplies the Differential PECL of 3.3/5.0 Voltage. They can provide the system designer with products to implement a range of FDDI and ATM designs at the 1250Mbps rate and SONET/OC-24 for Telecommunication. The transceiver has excellent reliability.
Commercial level transceiver module which operating at 0℃ to 70℃ and Industrial level which operating extended temperature as -40℃ to +85℃ for available.
Multi-sourced 1X9 package with Duplex SC receptacle,FC or ST can be also be available;
1310nm DFB-LD,
Single mode fiber transmission
up to 40km on single mode fiber;
PECL signal input and output;
Single +3.3V or +5V power supply;
Wave solderable and washable with process plug inserted;
Two temperature ranges: 0°C to +70°C for commercial level, -40°C to +85°C for industrial level;
Operates at data rates of 1250Mbps;
Passive optical network (PON)
Fiber-to-the-Home (FTTH) and Fiber-to-the-Business (FTTB) Broadband Access Systems
Order information:
| BDTR-024L | Single mode fiber module ,Single +3.3V or +5V power supply, Operates at data rates of 1250Mbps |

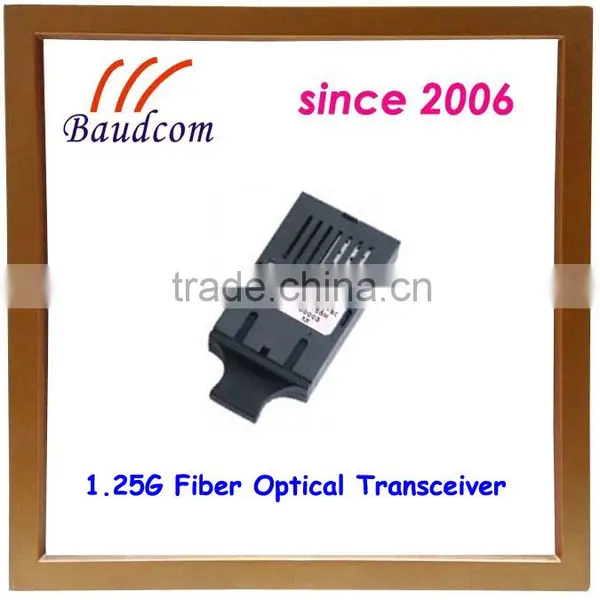

high quality 1.25G fiber optic module picture:
1.How can i get a sample?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping for fiber optic transceiver ?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
The devices will be well packaged by carton with Foam or other shock proof materials.
Product testing
After-Sales Service
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
