V.35 to E1 Converter

V.35 to E1 Converter thumbnail-1
V.35 to E1 Converter thumbnail-2
V.35 to E1 Converter thumbnail-3
V.35 to E1 Converter photo-1
V.35 to E1 Converter photo-2

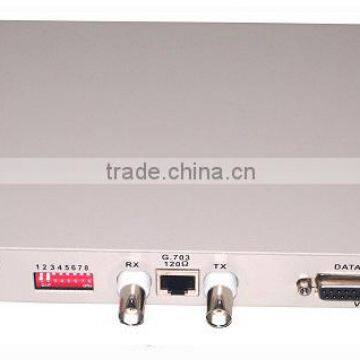

V.35 to E1 Converter photo-3
US$ 45 - 65 MOQ: 2 Units
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Baudcom-V.35 to E1 Converter
Model Number:
BD-E1-v35
Contact Supplier Request Quote Chat Now
Shanghai Baudcom Communication Device Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
V.35 to E1 Converter be sipped from Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Baudcom-V.35 to E1 Converter
Model Number BD-E1-v35

Product: V.35 to E1 Converter



Overview:

      V.35 to E1 Converter  provides conversion between E1 and V.35 interface.



Product introduction:

  V.35 to E1 Converter  provides physical level conversion between ITU-T G.703 standard E1 interface and standard V.35 interface, it can receive synchronous 2.048 Mbps data from E1channal and transmit the data to router, DDN, multiplexer or other equipment, thus providing secure and seamless communicating connection between equipments with different interfaces in the network. It is widely applied in the interface between WAN and LAN and in video monitoring. The pattern of data interface is DCE, which can be connected with DTE or DCE equipment.

Technical Specifications:

E1 Interface - Technical Specifications

Interface Standard

comply with protocol ITU-T G.703

E1 Impedance

120Ω (balance);

Jitter tolerance

In accord with protocol G.742 and G.823

Maximum Transmission Distance

up to 500m

Interface rate

64Kbps

Impedance

75hom/120 Ohms

Connectors

BNC(75ohm) or RJ45(120ohm)



Working condition

Input voltage: AC220V;

Power consumption:

Operating temperature:

Storing temperature:

Relative humidity:

DC-48V;

<=5W

0C ~ 50C

-40C ~ +70C

95 %

E1 to V.35 Converter Dimension

2units per carton,55*35*24cm/carton

1.25KG



Working environment


Working temperature:-10°C ~ 50°C

Working Humidity:5%~95 % (no condensation)

Storage temperature:-40°C ~ 80°C

Storage Humidity:5%~95 % (no condensation)



Packing information

E1/V35/V24

interface converter

E1 to V.35 Converter BNC

connector (male)

E1/V35/V24

users manual

DB25-M34

wire

Order information

E1-V35/AC

E1-V35/V24 converter, 75ohm, 120 ohm, 220V

E1-V35/ DC48

E1/V35/V24 converter, 75 ohm, 120 ohm, DC-48V

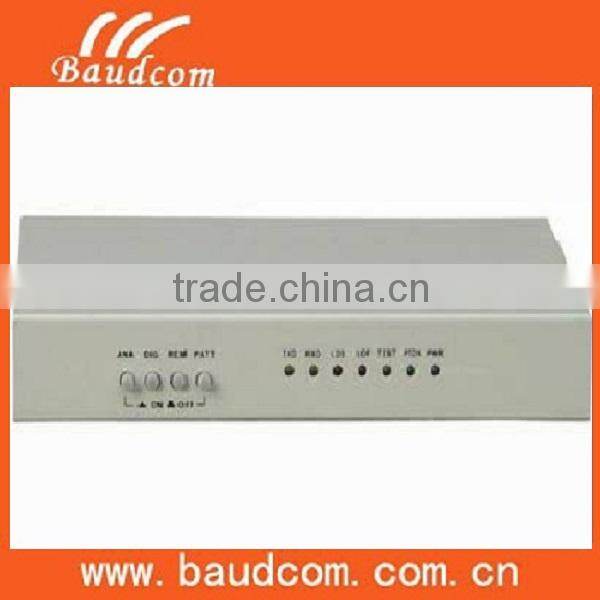

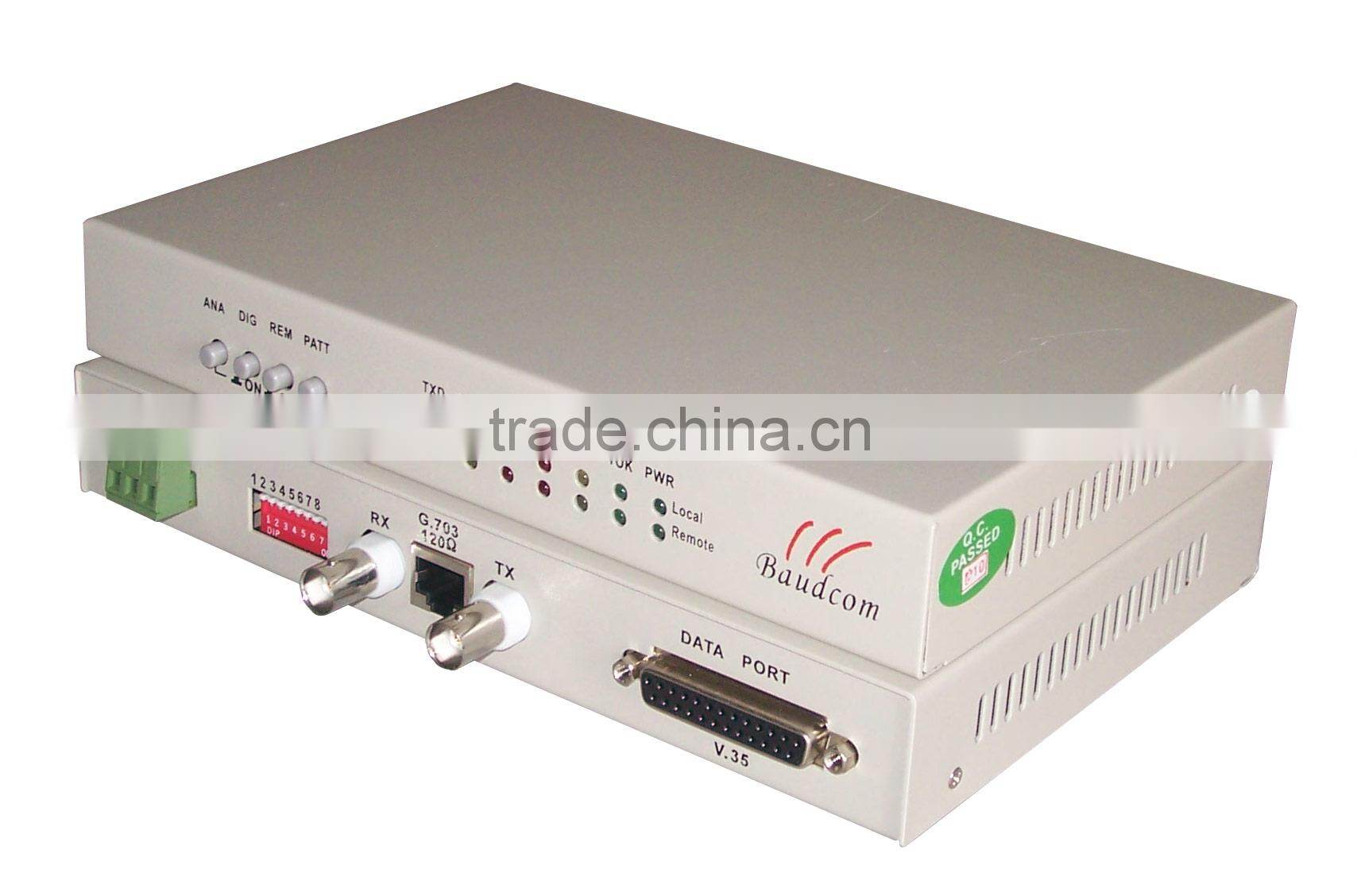

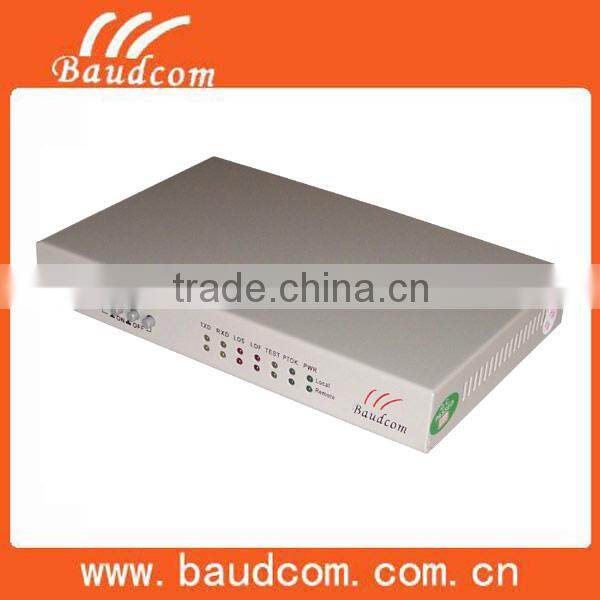

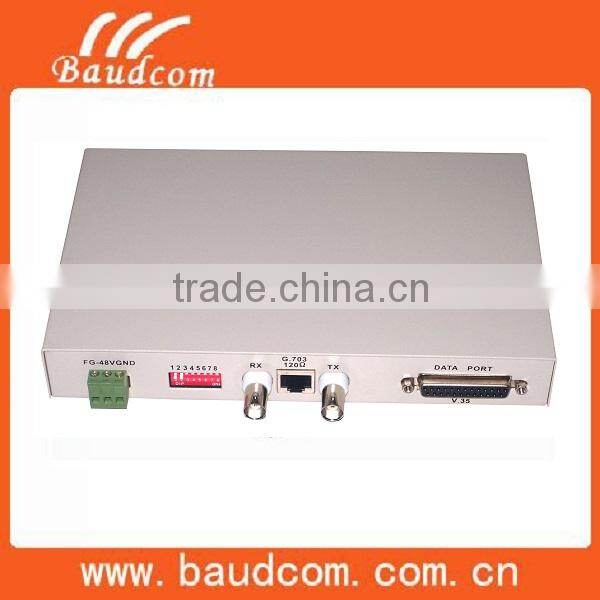

V.35 to E1 Converter  picture:





V.35 to E1 Converter



 V.35 to E1 ConverterV.35 to E1 ConverterV.35 to E1 Converter

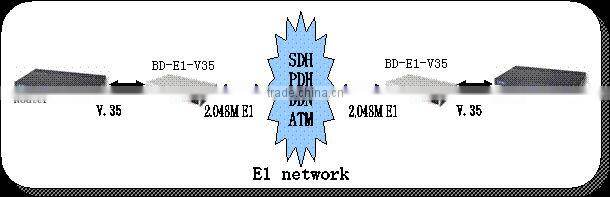

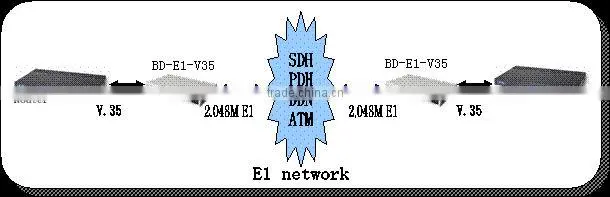

Application Diagram:

V.35 to E1 Converter







Certificates



V.35 to E1 ConverterV.35 to E1 Converter







V.35 to E1 ConverterV.35 to E1 Converter
