Product: BD-2RS232-ETH 2 port Serial RS232 to Ethernet Converter
Overview:
The RS232 Converter is the best choice for simple serial to Ethernet connectivity applications. Delivering a cost effective solution in a compact size, the serial server offers flexibility making it ideal for applications that require an authentic serial connection across an Ethernet network.
The RS232 Converter can implement the conversion between 2channel RS232/RS485/RS422 serial ports and 10/100M Ethernet ports, and two models are available: complete machine and embedded module. It can be extensively used for data collection of supervision and control system for power in machine room and base station of operators, automatic supervision and control for plant, automation of medical treatment and medicine, networking control of electromechanical instrument, networking control of attendance checking, networking control of security/access control and other occasions.
Features:
1. RS232 Converter has a compact structure, adopting high-performance processor and high-capacity memory;
2. DeviceManager software for centralized management and control;
3. WEB browser for remote setup of the equipment;
4. It can support three communication modes: virtual serial port application, controls developed by our Company and Socket;
5. It can support 2channel RS232 or RS485 or RS422
6. The serial port1 is general serial port (TxD/RxD/GND),the serial port2 is the full signal serial port(TxD/RxD/RTS/CTS/DTR/DSR/DCD/GND)
7. Rating of serial port reach 50BPS ~ 460800BPS;
8. Isupport three operating modes: TCP Server, TCP Client and UDP; the working port, destination IP and port can be set;
9. Ethernet supports 10M/100M, full-duplex / half-duplex and adaptive modes;
10. It can support multiple protocols: ETHERNET, ARP, IP, ICMP, IGMP, UDP, TCP, HTTP etc.
Specification:
| Application | Connect serial devices to server based applications over an IP network | |
| Manage remote serial console ports over an IP network | ||
| Virtual modem capability for modem-based applications | ||
| Ethernet Interface | Rate | 10/100Mbps |
| Full/duplex auto-negotiation | ||
| Protocol | Support IEEE 802.3 | |
| Connector | RJ45 | |
| Serial Interface | Seletable RS232/RS422/RS485 | |
| Software and hardware flow control | ||
| Connector | RJ45 | |
| TX and RX activity indicators | ||
| Power Supply | working voltage range wide, good anti-disturb and Isolation, work stable | |
| Power Option | AC220V,range AC165V~AC240V or AC110V(optional) | |
| Power Consumption | <=5 Watts | |

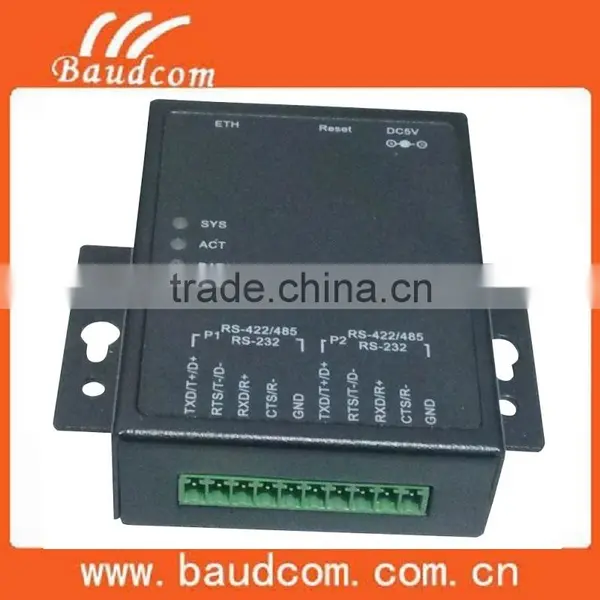

RS232 Converter picture:
RS232 Converter Application Diagram:
Using Raw UDP Sockets
UDP based applications, convert serial equipment data for transport across UDP packets either on a point to point basis or shared across multiple devices.
Console Server
