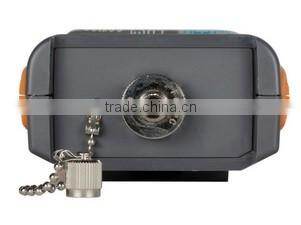

Baudcom BD-POW-D02 1310/1550/850/1300/nm Handheld Optical Laser Source
The series Laser source are advanced version of DLS series Laser Source, with better features and more functions.
The optical laser source can transmit with a wavelength-identification digital encrypted protocol,enabling the BAUDCOM Power Meter to automatically use the proper calibration parameters. This feature reduces the need for communication between the two technicians and decreases the potential for error.
Easy-to-use, straight forward operation
Eye-catching handheld package
LCD backlight for easy operation in darker environments
±3dB Adjustable by the user.
Rechargeable battery inside
850 & 1300 availale for multimode testing
Three-year warranty and recommended calibration interval.
BD-POW-D02 |
BD-POW-D03 |
|
Output wavelength(nm) |
1310&1550 |
850&1300 |
Emitter Type |
LD |
|
Output Stability |
Short Term (15min.): ±0.05dB @ 1300 / 1310 / 1550 nm ±0.1dB @ 850 nm Long Term ( 8 hrs.) : ±0.1dB @ 1300 / 1310 / 1550 nm; ±0.2dB @ 850 nm
|
|
Central Wavelength |
1310&1550±20nm |
850&1300±20nm |
Spectral Width |
3 nm |
|
Output Frequency(Hz) |
270,1k,2k |
|
Output power |
-5dBm |
|
Adjustable Range |
±3dB, 0.1dB/step |
|
Auto Power-off |
Yes |
|
Back-light |
Yes |
|
Operating Temperature |
-10 to +50 |
|
Storage Temperature |
-20 to +70 |
|
Power Supply |
2pcs * Ni-MH AA(2500mAh) |
|
Dimension(mm) |
160L*76W45H |
|
Net Weight |
270g |
|
FC/PC, SC/PC, ST/PC interchangeable connector, Manual, Carrying Bag, and Battery, Worldwide compatible AC/DC adapter, Test Report
Optional Accessories:
Description |
Ordering Number |
Description |
Ordering Number |
FC/PC male-LC/PC female Adaptor |
LC |
Carrying Box |
PS
|
FC/PC male-LC/PC female Adaptor |
LC |
Silicon Boot |
RP |
Ordering Information:
| BD-POW-D02 | optical laser source,Output wavelength 1310&1550nm,output optical power -5dBm |
| BD-POW-D03 | optical laser source,Output wavelength 850&1300nm,output optical source -5dBm |
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
The devices will be well packaged by carton with Foam or other shock proof materials.
Product testing
After-Sales Service
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
