TOPLINK LZ-4001A 800W Hot Wedge Jointing Machine for Geomembrane

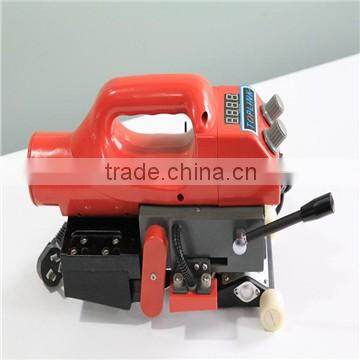

TOPLINK LZ-4001A 800W Hot Wedge Jointing Machine for Geomembrane photo-1

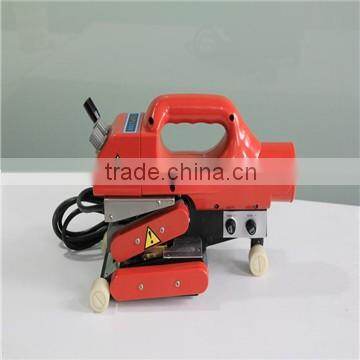

TOPLINK LZ-4001A 800W Hot Wedge Jointing Machine for Geomembrane photo-2

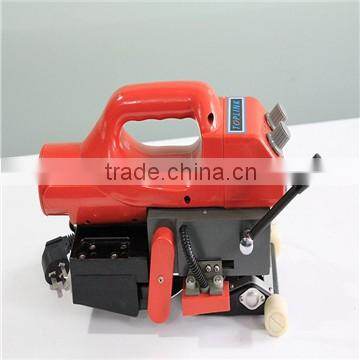

TOPLINK LZ-4001A 800W Hot Wedge Jointing Machine for Geomembrane photo-3
TOPLINK LZ-4001A 800W Hot Wedge Jointing Machine for Geomembrane photo-4
US$ 1,450 - 1,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
TOPLINK
Model Number:
LZ4001A/A+
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name TOPLINK
Model Number LZ4001A/A+
Voltage 230V
Power 800W
Frequency 50/60HZ
Welding Area Depend
Dimensions 295*250*245mm
Weight 5.0kg(including 3m power line)
Usage geomembrane welding
After-sales Service Provided Engineers available to service machinery overseas

TOPLINK 800W LZ-4001A hot wedge jointing machine

Product Description

LZ-4001A(A+) has compact structure,with integrated control box,is the smallest and lightest hot wedge welder in TOPLINK.It guarantees the best welding quanlity with the wedge which has the best heat transfer.This geomembrane machine has the advanced hot wedge structure,light body and big power,apply to weld HDPE,LDPE,PVC,EVA,ECB,PP and all other kind of hot melt material.This machine get stable performance,easy on operating,high efficient on welding and reliable.Be widely used in tunnel,railway,water conservancy,aquacluture,landfill,chemical

Technical data

Voltage 230V
Power 800W
Frequency 50/60HZ
Temperature 0-450 degree
Speed 0.5-5.0m/min
Welding Pressure 100-1000N
Material Thickness 02-1.5mm
Size  295*250*245mm
Weight 5.0kg(including 3m power line)
Certificate CE  CCA



Applications

*Apply to weld HDPE,LDPE,PVC,EVA,ECB,PP and all other kind of hot melt material.
*Be widely used in tunnel,railway,water conservancy,aquacluture,landfill,chemical engineering,sewage treatment,waterproof.



Function

1.Mature driving technology,high power motor
2.Temerature and speed display at the same time-----for LZ4001A+
3.Light body,easy to operate by single hand.
4.Temperature and speed adjustable.
5.Solid and practical transpot box.



Photoes

TOPLINK LZ-4001A 800W hot wedge jointing machine for geomembrane           TOPLINK LZ-4001A 800W hot wedge jointing machine for geomembrane                                                        TOPLINK LZ-4001A

                                      TOPLINK LZ-4001A 800W hot wedge jointing machine for geomembrane

                                          TOPLINK LZ-4001A+(With Digital Screen)



TOPLINK LZ-4001A 800W hot wedge jointing machine for geomembraneTOPLINK LZ-4001A 800W hot wedge jointing machine for geomembraneTOPLINK LZ-4001A 800W hot wedge jointing machine for geomembrane

Packaging & Shipping

 Packing information

      Packed in a paper carton

     Carton Size:40*26*29cm

     Gross Weight:9kg

TOPLINK LZ-4001A 800W hot wedge jointing machine for geomembrane



Company Information

Why choosing us?

Ocean Technology is a professional manufacture of plastic welders and hand tools.We focus on research,design and manufacture,and after 8 years development,our products have been widely used in waterproof for tunnel,railway,water conservancy,cultivation,landfill,chemicals,mines,sewage treatment,and truck tarpaulin,banner and outside plastic sheet structure,Coated fabric etc,have been sold to over 60 countries and wins high praise from our clients.

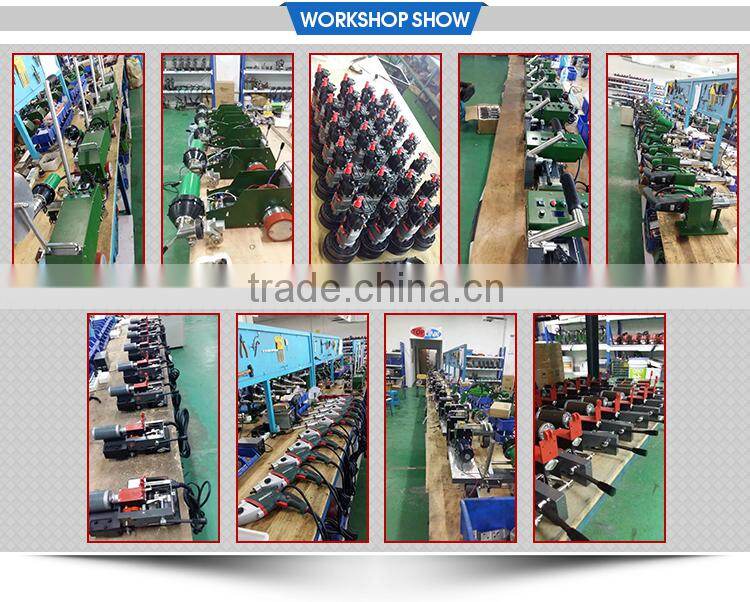

Warehouse
