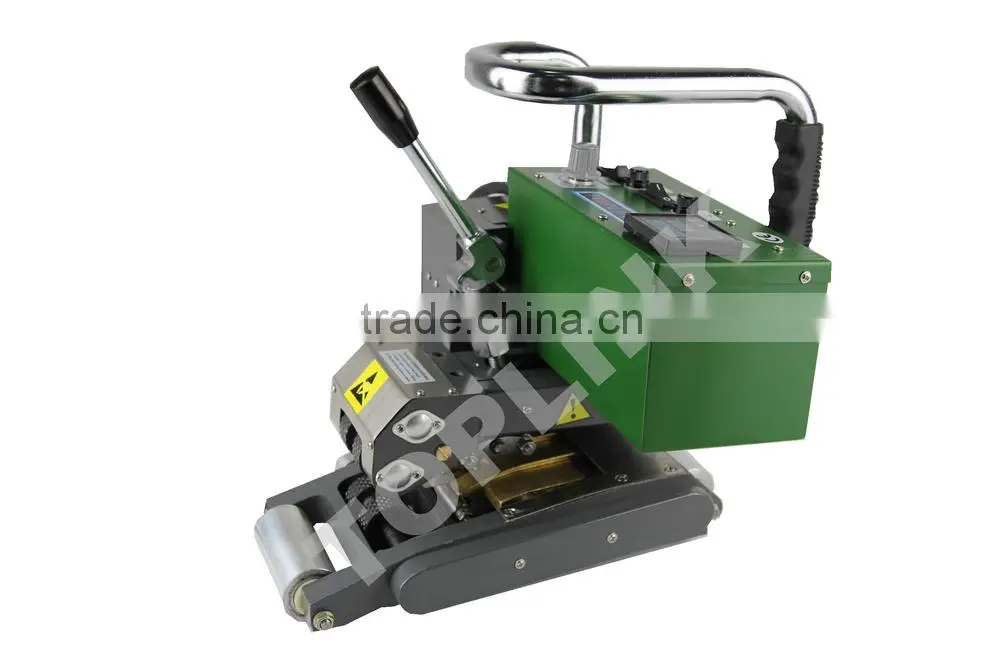

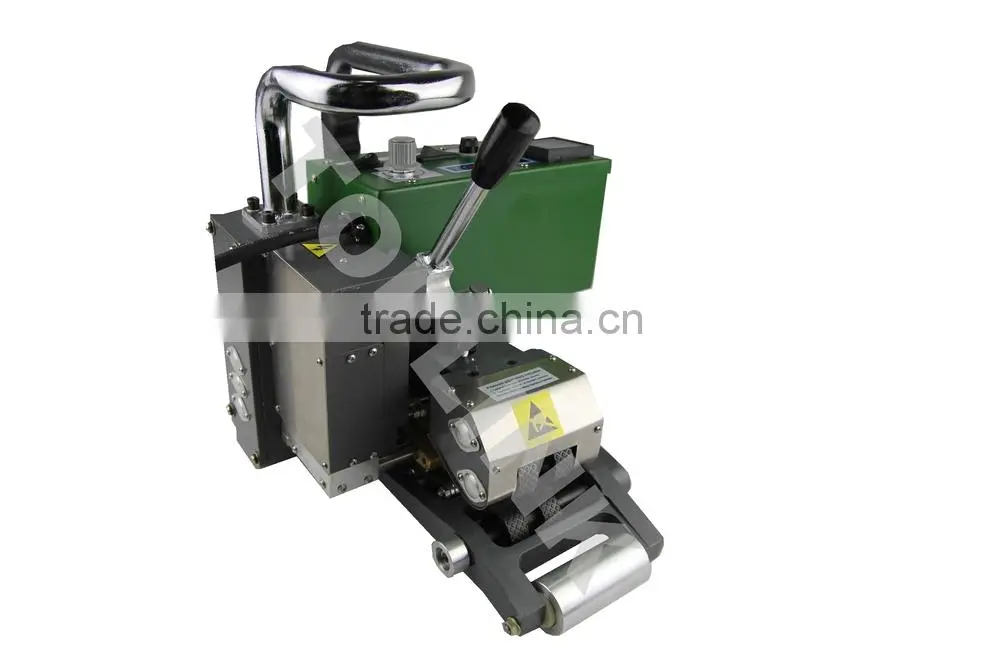

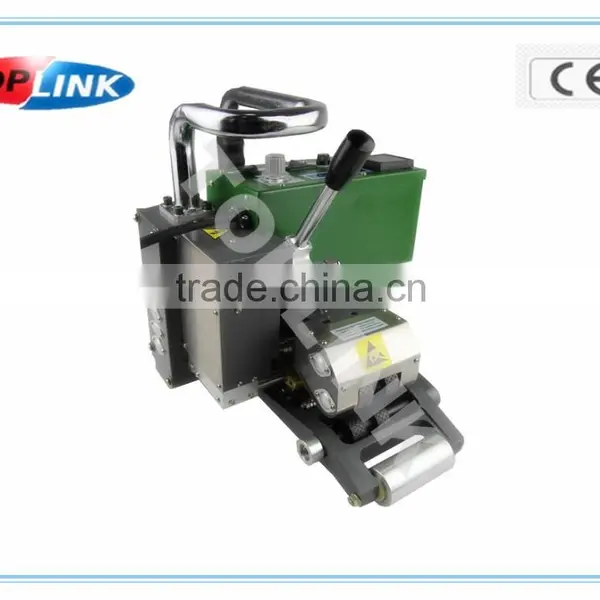

HDPE Hot Wedge Welder
Type: LZ-4001B
1. introduction:
Welding speed could reach 5m/min, is the fastest equipment for geo-membrane in TOPLINK, welding material could reach 3mm.
1. Mature driving technology, high power motor

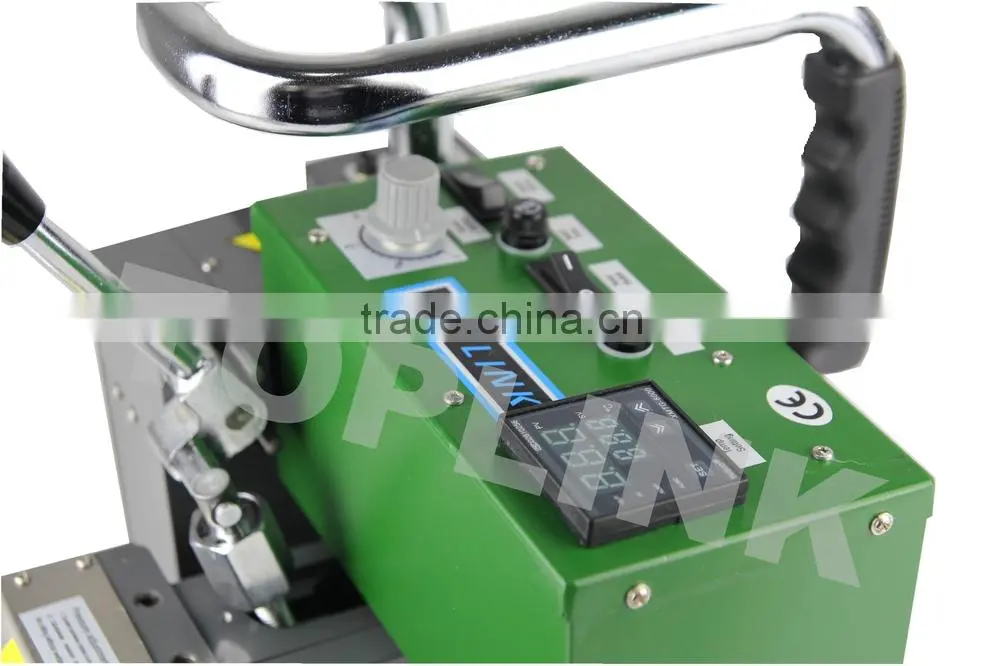

2. Temperature and speed display at the same time
3. Easy to operate by single hand
4. Temperature and speed adjustable
5. Solid and practical transport box.
2. Technical data:
voltage |
V |
230 |
power |
W |
1800 |
frequency |
Hz |
50/60 |
temperature |
℃ |
20-450 |
speed |
M min |
0.5-5.0 |
welding pressure |
N |
Max. 1500 |
Material thickness |
mm |
1.5-3.0 |
size |
mm |
430x270x310 |
weight |
kg |
15.0(include 3m power line) |
certificate |
CE |
|
3. Application and advantage:
They can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE, PVC, HDPE, EVA, PP and PVC,HDPE,EVA,PP. This series of welding machine is excellent in performance and easy for operating, with high welding speed and good work quality. It is extensively used in engineering projects such as expressways, tunnels, reservoirs, waterproof of construction and so on.
sketch map of hot wedge welding
