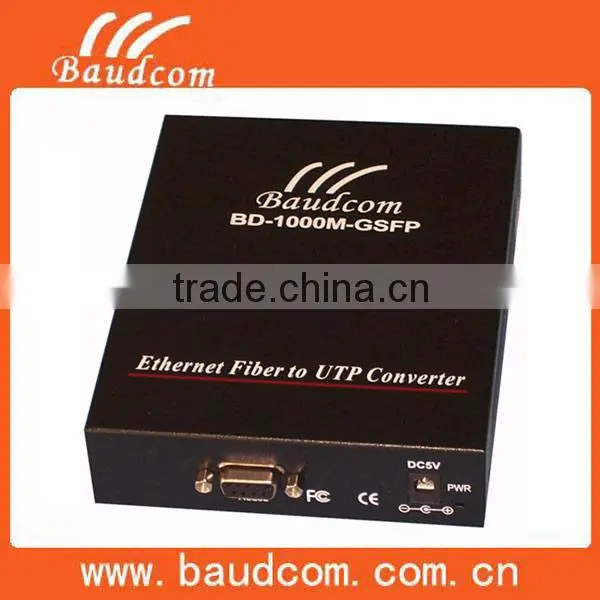

Multi-mode 20Km 6Port SFP Fiber Converter
US$ 65 - 80
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Baudcom-fiber Converter
Model Number:
BD-1000M-TSFP
Payment & Shipping
Payment Methods:
Port of Shipment:
fiber Converter will be shipped from shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10/100M WDM Fast Ethernet Media ConverterUS$ 7.5 - 13.8MOQ: 1 Unit -
Single Fiber WDM Fast Ethernet ConverterUS$ 7.5 - 13.8MOQ: 2 Units
-
10 100M Ethernet WDM Fiber Media ConverterUS$ 7.5 - 13.8MOQ: 2 Units
-
Dual Fiber 20km 10/100M Ethernet Fiber Media ConverterUS$ 7.5 - 13.8MOQ: 1 Unit
-
Baudcom Media Fiber ConverterUS$ 45 - 65MOQ: 1 Unit
Place of Origin
Shanghai, China
Brand Name
Baudcom-fiber Converter
Model Number
BD-1000M-TSFP

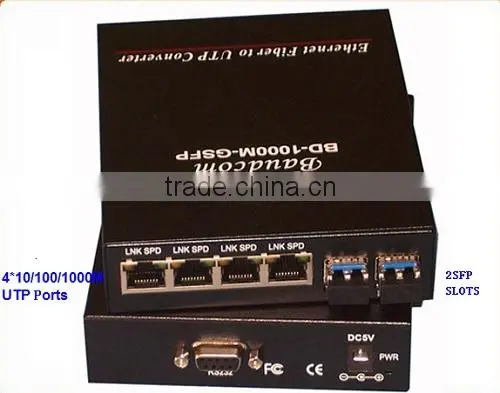

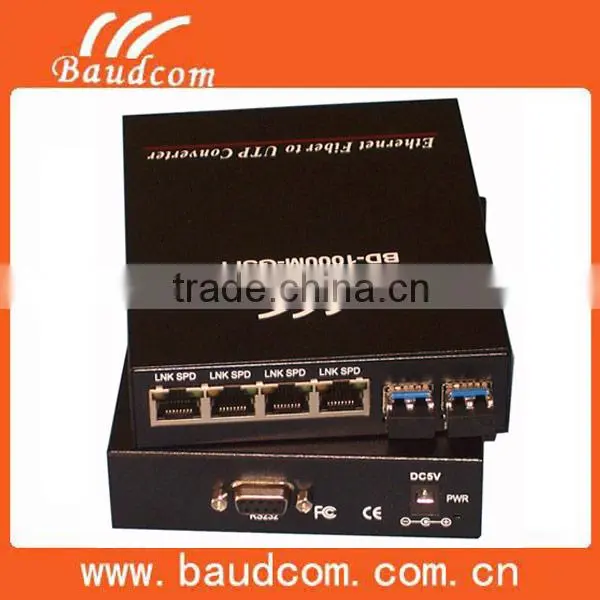

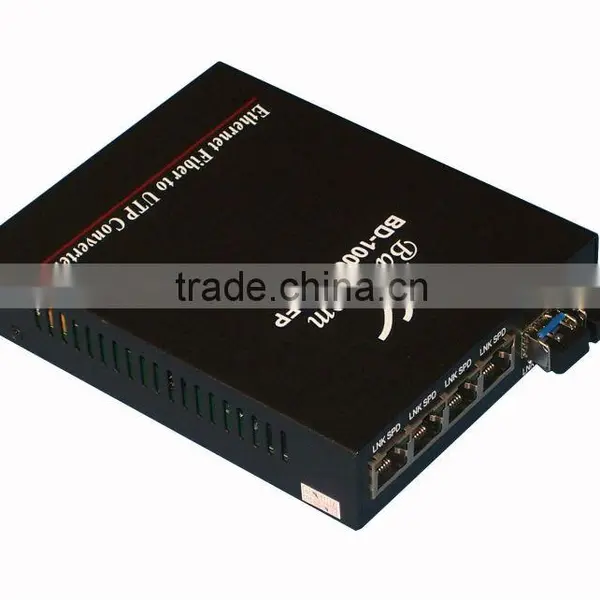

Product: Multi-mode 20Km 6Port SFP fiber converter
Highlight:
BD-1000M-TSFP Gigabit SFP media converter convert 10/100/1000M ethernet to SFP fiber. The 10/100/1000M SFP media converter can provide four 10/100/1000M UTP ports and two 1000M SFP slots.Customer can choose different 1000M SFP modules according to requirement, such as single mode or multimode,long transmission distance(1000Base-LX) or short transmission distance(1000Base-SX) or copper SFP module(1000Base-T) .
The 10/100/1000 SFP Media Converters allows flexible network configurations using SFP transceivers supplied by BAUDCOM, Cisco or other manufacturers of MSA compliant SFPs.
Feature:
- Supports 10/100/1000Base-T, 1000Base-X protocol.
- 10M/100M/1000Mbps or automatically negotiation
- Multi-mode and Single-mode optional easy installation
- Supports Full/Half duplex operatio
- Supports up to 10k byte JUMBO frame.
- Suppots Fiber Port Trunking, Increasing Fiber Channel Bandwidth and Supply Fiber Channel Redundancy.
Product parameter:
| Ethernet interface | RJ-45 (coaxial, twisted pair) Support IEEE802.3u 1000Base-TXand 1000Base-FX |
| Ethernet connector | 10/100/1000Base-TX:Four UTP RJ45 connector |
| Fiber connector | 1000Base-FX:Two SFP SLOTS, LC,SC connector |
| Cable type | non-shielded 5 class cable Cat.5UTP, can transmit 100 meters |
| Optical fiber category | single-mode 8.3/125, 9/125, 10/125um, multi-mode 50/125, 62.5/125µm |
| Operating Temp | 0~60°C |
| Storage Temp | -20~85°C |
| Relative Humidity | 5% to 95% non condensing |
| Power supply | 3A 5VDC±5% |
| Dimension | 140mm*110mm*40mm |
6Port SFP Media Converter |6Port Fiber optic Switches
Application diagram
Ordering information:
| BD-1000M-TSFP/AC | 6ports Gigabit SFP media converter,4*10/100/1000M copper ethernet ports,2 SFP slots,power AC 220V |
| SFP module | single fiber (WDM),single mode,20km |
| SFP module | BDTRP413L1SN-20,1.25G/1000M,duale fiber,single mode,20KM |
Certified Certificates
Please note:
Working Environment:
