Product: 24 port 10/100M Ethernet PoE Switch with 2Gigabit Ethernet port
Overview:
The 24port Ethernet Switch is a modularized hi-performance workgroup-level or enterprise-scale switch, with 24 Fast Ethernet ports,plus maximum 4 gigabit ports. The 24port Ethernet Switch can connect all (Fast) Ethernet devices so that your investment is protected.The hi-speed connection it provides among workgroups can boost the capability of server clusters, and solves the bottleneck caused by increasing users and limited bandwidth, making network resources more readily available to you.
Application:
- Hi-performance, network manageable inter-workgroup or enterprise-edge switching
Features:
Performance
- 36 Gbps switch fabric, hardware routing, wire-speed L2 forwarding rate: 9.5 Mpps
- 80-km transfer by Gigabit optical fiber, direct connection to WAN
Security and reliability
- IEEE 802.1x and other methods for user authentication
- Powerful ACL supports L2-L7 data filtering
- QinQ support. Double VLAN security
Easy maintenance
- Automatic recognition for straight-through or cross-over cables
- Stackable through cluster technology. Central management with unified IP address saves IP addresses
- Management via CONSOLE port, SNMP and other methods
- Support(Baudcom)BroadDirector,HP Open View, Cisco Works 2000
Traffic and broadcast control
- Auto-detection and restraining of broadcast storm, IGMP snooping, effectively restrict broadcast flooding
- Full- and half- duplex traffic control
- Ethernet port rate limiting with 64 K step size (1M step size for rate over 1.8M)
- Qos support
- Jumbo frame
Specifications:
|
S2228 |
S2228F |
S2228PoE |
Processor |
MPC 50MHz |
||
FLASH |
4 MB |
||
Memory |
64 MB |
||
Port & Slot |
24 * 10/100M TX 2 * 10/100/1000M TX 2 * GSFP/TX combo 1 * Console Port |
24 * 100M SFP slots 2 * 10/100/1000M TX 2 * GSFP/TX combo 1 * Console Port |
24 * 10/100M TX 4 * GSFP/TX combo 1 * Console Port |
Switch Fabric |
36 Gbps |
||
Standard |
IEEE 802.3x Flow control, 802.1d STP, 802.1w RSTP, 802.1p, 802.1Q, 802.3ad, 802.1ad VLAN Stacking |
||
Forwarding Rate |
All wire-speed forwarding and filtering |
||
Switching Mode |
Store-and-forward |
||
MAC address Table Size |
8K |
||
Queuing Buffer |
64 MB |
||
Jumbo frame |
2048 |
||
Dimensions (L*W*H) |
442 mm*225 mm*44 mm |
||
Weight |
6.6kg |
||
Power Consumption |
28 W (max) |
||
Power Input |
AC 100 ~ 240 V, 47 ~ 63 Hz, 1A/230V |
||
LED Indicators |
Power, system, link, activity, 10/100M |
||
Temperature |
Operating: 0 ~ 50C, non-operating: -40 ~ 70C |
||
Humidity |
0 ~ 90% (no condensing) |
||
Functions: | |||
Spanning Tree |
IEEE 802.1D STP, IEEE 802.1w RSTP, 802.1s MSTP |
||
VLAN |
Port-based VLAN, 802.1Q tag VLAN, Private VLAN, GVRP dynamic VLAN configuration, QinQ |
||
Quantity VLAN |
4094 |
||
VLAN IDs |
4000 |
||
ACL |
MAC/IP/TCP/UDP |
||
MAC filtering |
MAC filtering, the number of MAC on each port limit. |
||
Stacking switch |
Stacking switch to manage as a only switch |
||
Traffic Control |
Back pressure at half-duplex, 802.3x at full-duplex, CAR support, 64K step size for 100-M ports, 8 M step size for Gigabit ports |
||
Storm Control |
Stop sending at threshold to restrict broadcast/multicast/unicast storms |
||
Multicast Control |
IGMP snooping |
||
DHCP |
DHCP snooping, DHCP option 82, IP source guard |
||
Port Trunking |
Up to 6 groups with up to 8 ports per group, dynamic LACP or static aggregation |
||
Port Mirroring |
Supported. Can be based on flow classification |
||
Clustering |
Up to 256, manageable through single IP |
||
Security |
IEEE 802.1x port-based user authentication Port Security Hardware support for IP ACL, MAC ACL, VLAN ACL Remote authentication through RADIUS User privilege classification and password protection |
||
EAPS |
Ethernet Automatic Protection Switching, ethernet ring protectionensure the network convergence time when such errors do not exceed 50ms protocol RPR (IEEE 802.17), ITU G8032 |
||
QoS |
Head Of Line (HOL) blocking prevention mechanism 4 dispatching queues per port, mapping the 8 priority queues in 802.1p Best Effort Service Differentiated Service Strict Priority Weighted Round Robin First Come First Serve TOS re-tagging RTS Prevent DoS attacks on the CPU |
||
Network Management |
SNMP v1/v2 RMON (Group 1, 2, 3, 9) Telnet Command Line Interface (CLI) Web interface Support BDCOM network management tools suite: Broad Director NTP SSH LLDP |
||
Software Upgrade |
TFTP/FTP |
||
Configuration Upload/download |
TFTP/FTP |
||

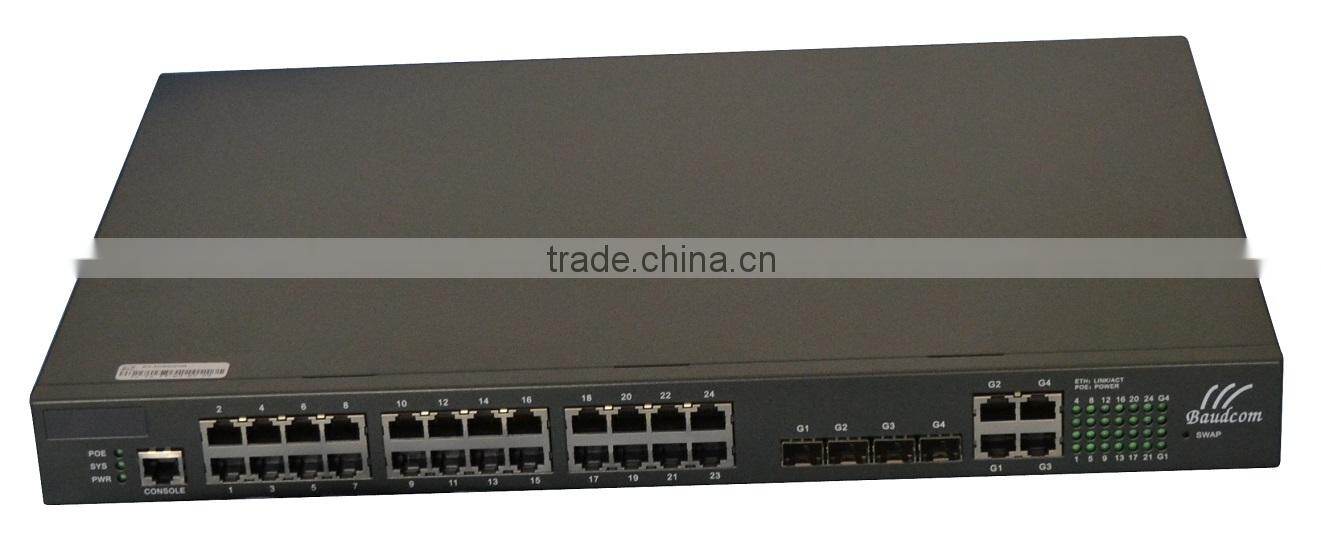

24port Ethernet Switch picture
