Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > AC Power Supply Splitter Built-in 48ports ADSL2 IP Multiplexer

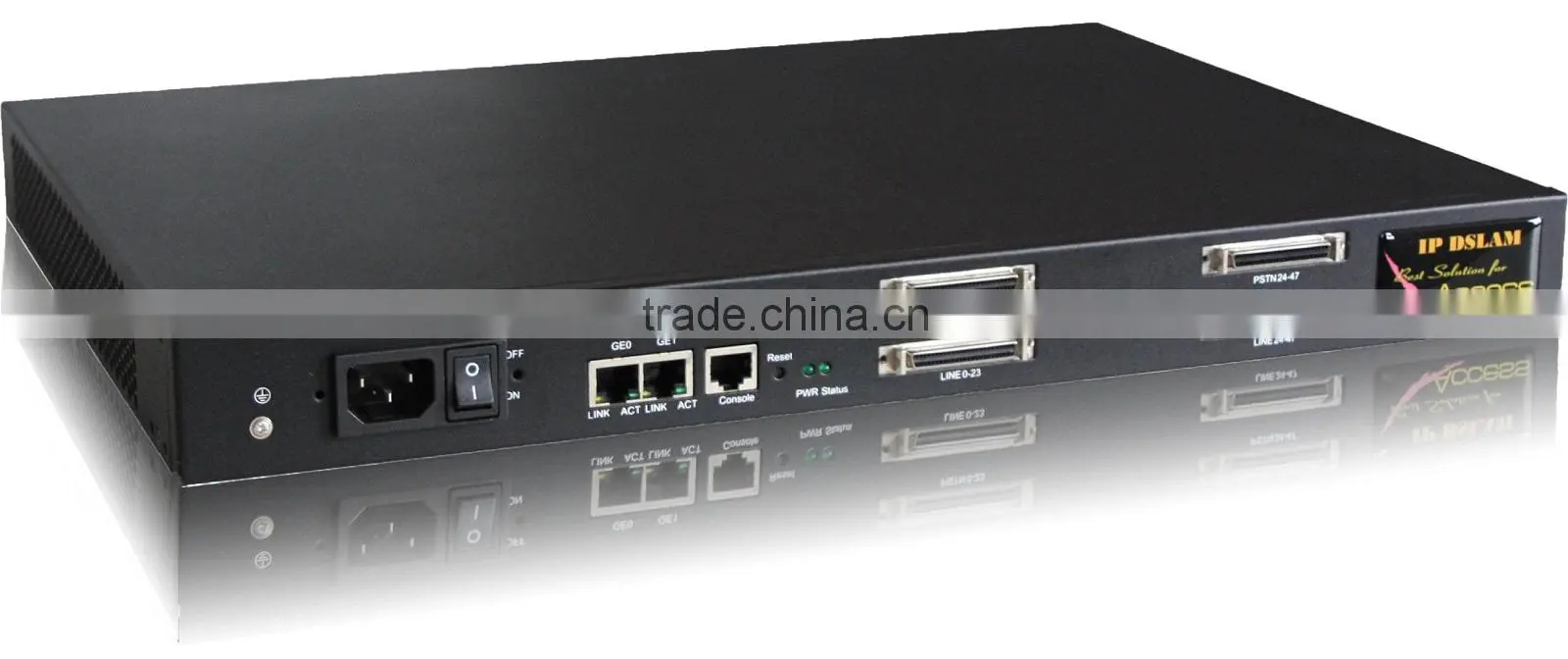

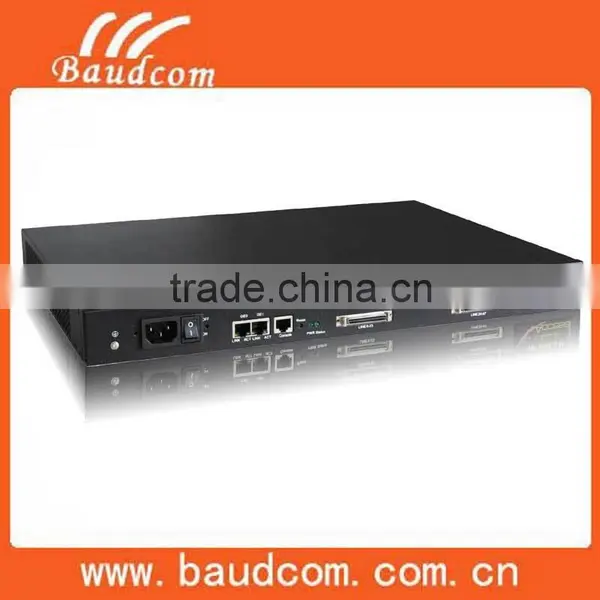

AC Power Supply Splitter Built-in 48ports ADSL2 IP Multiplexer

Name: AC Power Supply Splitter Built-in 48ports ADSL2 IP Multiplexer
Brand: Baudcom
SKU: 100390609

AC Power Supply Splitter Built-in 48ports ADSL2 IP Multiplexer thumbnail-1

AC Power Supply Splitter Built-in 48ports ADSL2 IP Multiplexer thumbnail-2

AC Power Supply Splitter Built-in 48ports ADSL2 IP Multiplexer photo-1

AC Power Supply Splitter Built-in 48ports ADSL2 IP Multiplexer photo-2

US$ 45 - 65 MOQ: 1 Unit

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Baudcom

Model Number:

BD-DSLAM-5048

Contact Supplier Request Quote Chat Now

Shanghai Baudcom Communication Device Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Baudcom

Model Number BD-DSLAM-5048

AC power supply splitter built-in 48ports ADSL2 IP Multiplexer

Overview

48 ADSL/ADSL2/ADSL2+ Ports with splitter built,support web-based management and SNMP-based management.

48ports IP DSLAM is a special pizza box designed for outdoor application with the physical depth about 320mm and the operating temperature up to 60degree. It terminates all the ATM circuits and converts traffic directly to deliver the most popular broadband IP services.

48ports IP DSLAM offers better bandwidth utilization, ease of use, as well as the low-cost advantage and provides the least initial investment solution for internet service providers who want to start providing broadband service in a low subscriber density location.

48ports IP DSLAM is compliant with ITU G.992.5, G.992.3,G.992.1, and backwards compatible with early version of ADSL.Its maximum downstream/upstream rate is up to 24/1.2Mbps and maximum reach distance is over 6Km. It is most suitable to provide high speed Internet access on existing copper twisted pair telephone lines.

With the highly compact (1U height) and temperature-hardened design, simple installation and easy adaptation to local POTS/ISDN splitter requirements,BD-DSLAM-48 is an ideal solution for Triple-play requirements deployed in indoor and outdoor enclosures.

ADSL2+ Interfaces:

48 ADSL/ADSL2/ADSL2+ Ports with splitter built

Supports ANSI T1.413 Issue 2, ITU G.992.5, G.992.3,G.992.1 (G.dmt), ITU-T G.992.2 (G.lite)
Provides optimal rate/reach performance
Rates up to 24.0 Mbps
Distance up to 6.0 Km
Multimode (automatic modulation detection)
Supports packets transmit and receive statistics report
Bandwidth Management control on each port at 32kbps interval
Extended power management capabilities to optimize power consumption for each application

Management

Web-based management

SNMP-based GUI EMS
Local RS-232 CLI
Remote in-band SNMP/TELNET management
Firmware upgradeable via FTP or TFTP

Protocol Support

IGMP snooping/ GMRP/ GVRP/ LACP

SNMP/UDP/IP/MAC/Ethernet

System Features:

2 10/100/1000 BASE-TX ports, one for uplink and another one for cascade

Support up to 8 units to be cascaded
? SNMP Management Agent and MIB II
TFTP
BOOTP Client, Boot Server
IP packet size 64 byte to 1522 byte
PPPoE Intermediate Agent
DHCP Relay Agent
8 VCs per ADSL port
Support multiple PVC QoS configuration
128 MAC address per ADSL port
48*128 MAC address

Bridging

1. Ethernet Bridging : Broadcast, Flooding/ Dropping.

2. VLAN bridging
A. 512 VLAN support
B. Static VLAN
C. VLAN Stacking
D. VLAN Trunking

? Multicast

1. Up to 256 multicast addresses

2. IGMP v1, v2, v3
3. Multicast VLAN mapping
A. Independent VLAN multicast (IVM)
B. Shared VLAN Multicast (SVM)
4. handle PPPoE Encapsulated IGMP

Security

1. Throttling Control

2. Sticky Bridge Ports

3. MAC Address Access Control List
4. IP Address Access Control List

Inter-Working

1. IPoA to IPoE Tunneling

2. PPPoA to PPPoE inter-working

QoS

1. Input Rate Limiting (IRL) on a per-AAL5 Interface

2. Output Rate Limiting (ORL) on a per ATM-port and Ethernet basis
3. Rate Limiting

Hardware Configuration

2 RJ45 for Uplink and Cascade

2 TELCO-50 connectors for 48-port ADSL/ADSL2/ADSL2+
2 TELCO-50 connectors for phone line
1 RJ45 interface for Local Management

Input Power

1. AC Power Model: 90VAC ~ 260 VAC, 50-60 Hz

2. DC Power Model: -40VDC ~ -60 VDC
3. Power Consumption: 90 watts

Operation Parameters

Operating Temperature: -10 to 60degree

Storage Temperature: -30~+85degree
Operating Humidity: 5% to 95% non-condensing
Operating Altitude: -200ft.to +15,000ft
Reliability: MTBF 140,000 hrs minimum

Physical Specification

Dimensions: 440mm(W) x 320mm(D)in x 44.5mm(H)

Weight: 6.0Kg

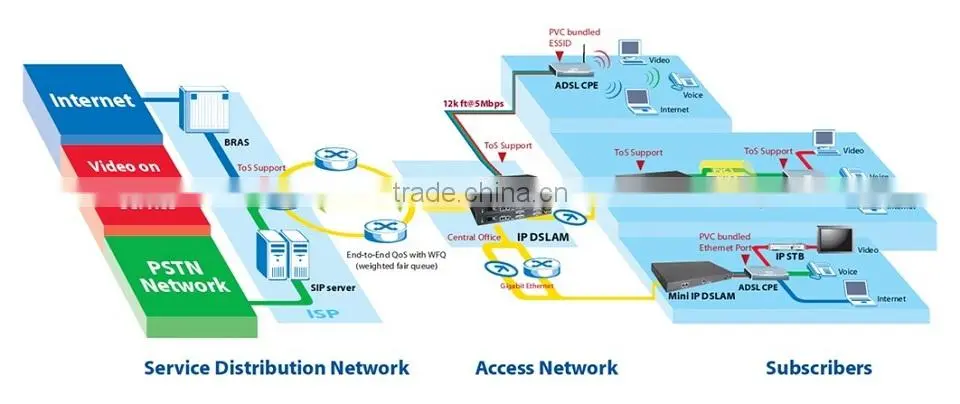

Applications:

FAQ

1.How can i get a sample ?

You need place sample order to us.We will arrange the sample production for you.

2.Could you do design for us?

Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.

3.How can we place order?

After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.

If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.

4.How about the shipping?

For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.

5.what's your products' advantages ?

A. good quality and competetive prices.

B. Strictly quality control when producing.

C. Professional team work, from design, development, producing,assemble,packing and shipping.

D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.

Packaging & Shipping

The devices will be well packaged by carton with Foam or other shock proof materials.

Certifications

Factory production

After Sales Services

The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.

Your any questions will be responsed within 12hours!
