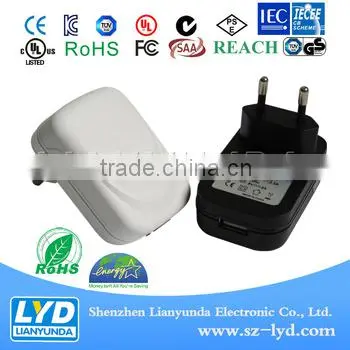

Help CenterUS Plug CE FCC BS SAA RoHS 5V2A Micro USB Wall Mounted Power Adapter
Related Products
-
Factory Hot Sale ! With CE FCC Rohs ac dc Phone Charger Power Adapter 5V 1000mAUS$ 1 - 99MOQ: 1000 Pieces -
5V 5port 12a 60W USB Charger Multi Port USB Charger For Tablet PC With FCC CE CertificationUS$ 1 - 99MOQ: 100 Pieces
-
LYD 2015 New Product 5V 3000mA 15W 5 Port Usb Wall Charger,multi Usb ChargerUS$ 1 - 99MOQ: 100 Pieces
-
Manufacturer Adaptor Cans Humidifier/the USB Mini Humidifier/mini Spray Water Cup Humidifier Power SupplyUS$ 1 - 12MOQ: 1000 Pieces
-
Power Adaptor 5v 1.2a USB Charger for Small Massager Humidifier CE,Rohs,Fcc,KC CertifiedUS$ 1 - 99MOQ: 500 Pieces
Why Choose Us---our Advantages
1.We are Chinese Leading power adapter Manufacturer;
2.Alibaba Assessed Gold supplier;
3.Our Certifications are the most comprehensive ;
4.100%QC inspection Before Shippment;
5.Best Quality&Best Service with Factory Price;
6.Anti-interference, reliable.
7.High efficiency and energy saving
8.Raw materials imported from TDK STON,Toshiba,Rubycon,IR,fuji, AUK...
9.Input voltage 36V,with the standards of global use.
10.Withstand voltage 3750V
11.Protection function of short circuit, over-voltage and over temperature.
12.100% of ageing test.
13.Without or not exceed the prescribed content of Cadmium, Chromium, Lead, Mercury, PBB and PBDE.
14. Certificated by UL (America),CUL/CSA(Canada),TUV/GS/CE(Europ),BS(United Kingdom),SAA(Australia),KC(Korea),PSE(Japan),ROHS,LVD,CEC,EMC,FCC,CB.

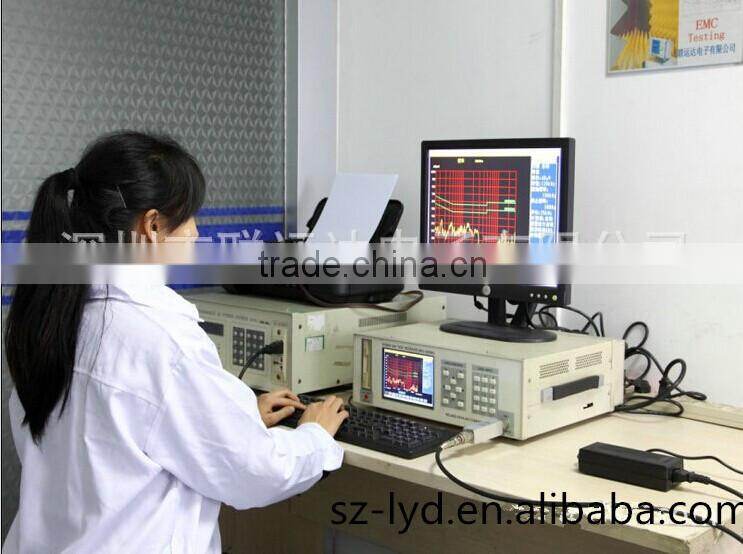

Factory Pictures

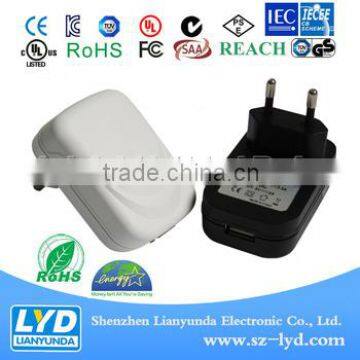

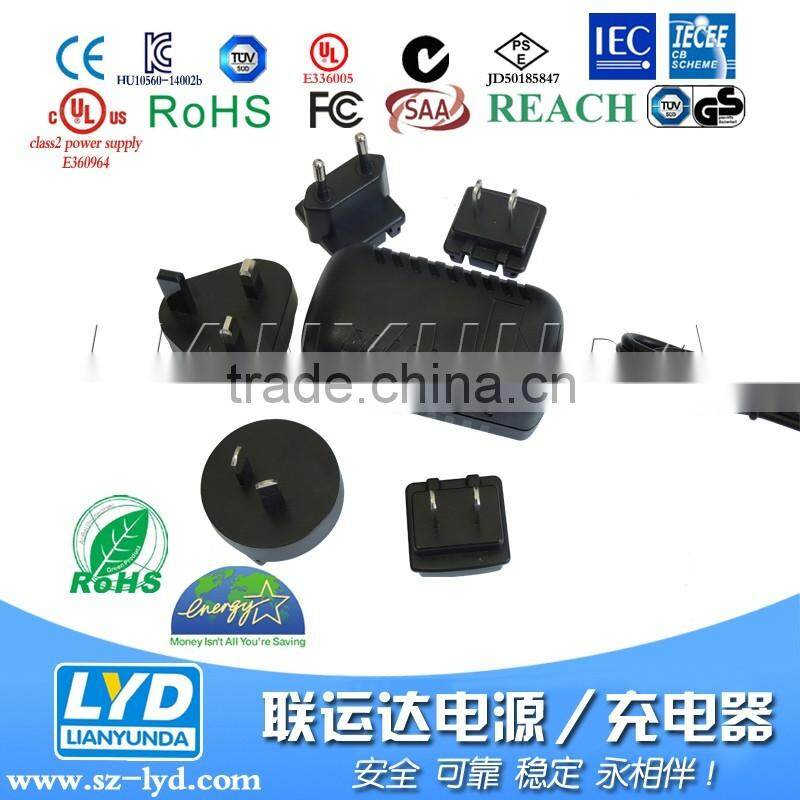

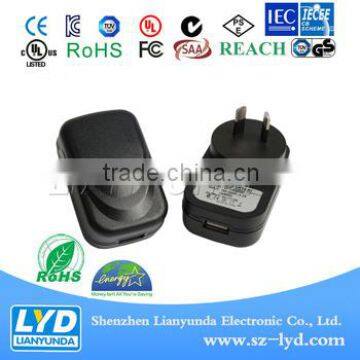

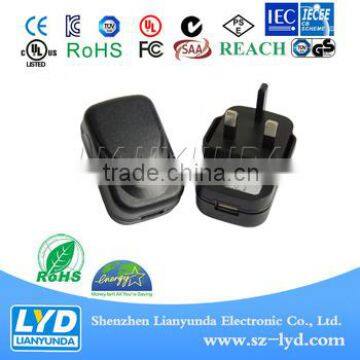

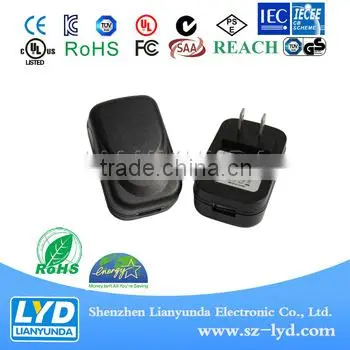

Product Picture
Details
1) input voltage: AC 100-240V 50/60HZ
2) range voltage: AC 90-264V 47/63HZ
3) output Power:10W
4) output voltage:5V
5) output currency:2A
Safety Approvals
UL/CUL CLASS II 1310 CSA TUV GS CE BS SAA C-Tick KC PSE Rohs FCC LVD EMC CEC MEPS ERP CB CCC Certifications
Protections
1)over voltage protection: 120%min
2)over current protection: 120%min
3)over protection
4Short-circuit protection: automatic recovery
5Load regulation: ±5%
Environmental requirement
1)operating temperature: 0-40
2)storage temperature: -20-85
3)opera ting relative humidity:595%RH
4) Withstanding voltage: AC 3,000V (minimum), 5mA (maximum)
5Insulation resistance: DC 500V 100MΩ (minimum)
Brand name: LYD
Product Features
1. AC input power suitable for the world
2. Soft-start current can reduce the AC input impact efficiency
3. With short-circuit and overload protection
4. Compact size ,light weight
5. 100%full-load burning test
6. Installed with EMI filter ,minimum wave
Output Power Range |
5V,0-2A,5-10W(also have those models for selection) |
Input Rated Voltage |
100Vac~240Vac |
Input Frequency Range |
50Hz~60Hz |
Input Current |
less than 0.5A |
Input Inrush Current |
less than 50A |
Efficiency |
90%(MIN)at Rated Voltage |
Leakage Current |
less than 5mA |
Standby power |
less than 0.5w |
Ripple and Noise |
less than 120Mv at full road with 20MHz bandwidth |
Turn On Delay Time |
less than 3S (AC:110V and full load) |
Dielectric Voltage |
A IEC320 three pin input---output(FG)3000Vac one minute |
Safety protection |
output voltage protection (150%-180% rated output current) |
output current protection (150%-180% rated output current) | |
short current protection | |
Operating Temperature |
-10°C - +45°C |
Storage Temperature |
-20°C - +40°C |
Safety Standard |
EN60950-1 UL60950-1 ESD (EN61000 3-3) |
CAS (60950 ITE/TE) FCC Part 15 subpart B Class B | |
ISO 9001: 2008 |
About Fair Pictures
Erika Liu
Mob:86 136 5140 8113
QQ: 2851331859
