Home > Products > Switching power supply > 2016 New style LYD LED driver 120W - 500W cob led grow light plastic switching power supply
2016 New style LYD LED driver 120W - 500W cob led grow light plastic switching power supply
- 10000 Piece / Pieces per Month
- shenzhen
Product Details
Place of Origin: | Guangdong, China | Brand Name: | LYD | Model Number: | LYD2408000 |
Output Power: | Other, 150W - 500W | Output Type: | Single | Input Voltage: | Other, 100V - 240V |
Output Voltage: | 12V 18V 24V 36V | Output Frequency: | 50/60Hz | Output Current: | 0~20A |
Product Description
2016 New style LYD LED driver 120W - 500W cob led grow light plastic switching power supply
Your Best Partner-LYD
1,High efficiency and energy saving--Meeting US DOE VI levels
2,Our raw materials imported from TDK STON,Toshiba,Rubycon,IR,fuji, AUK---Making sure our high quality
3,Input voltage 90-264V 47/63HZ ,with the standards of global use
4,Hi-pot 3kV
5,Several hours ageing test
Product Details
Product features:
1 wide voltage input: 90-264V, 100-240V, the largest available for all the countries in the world use.
2 with short circuit, overload, over-current protection function, use more safety.
3 100% full load test, stable performance.
4 good insulation properties, high dielectric strength.
5 the anti-jamming good strength, high reliability.
6 switching power supply performance of DC ripple small, high work efficiency, energy saving and environmental protection.
7 products through international certification requirements.

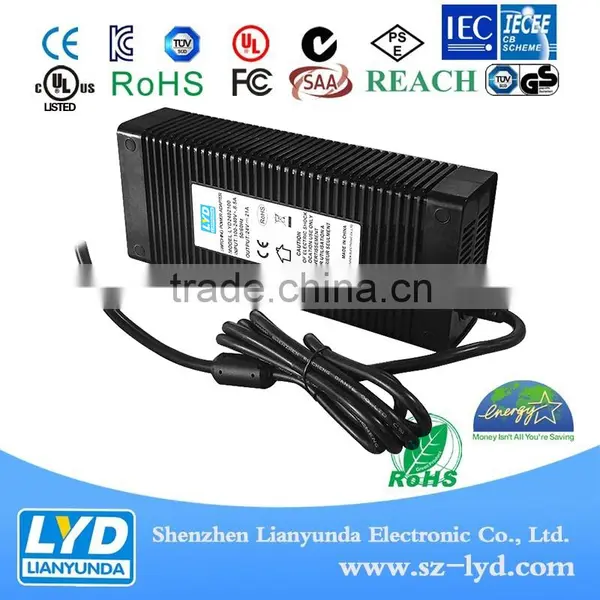

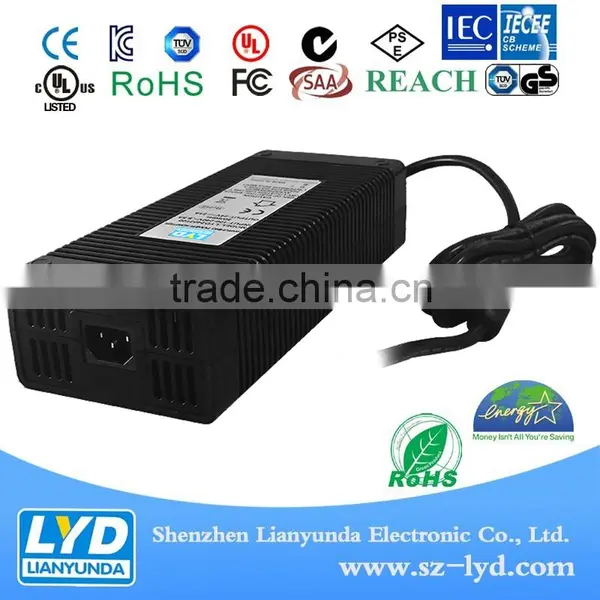

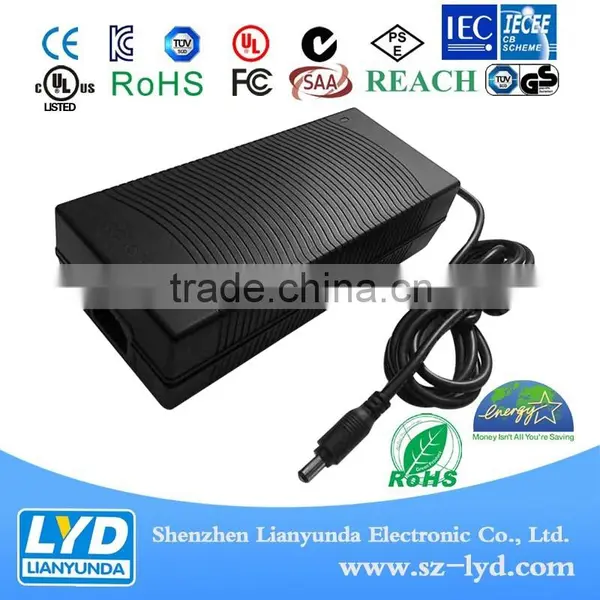

Product picture:
Output Power Range | 5V 12V 24V 150W - 500W (also have those models for selection) |
Input Rated Voltage | 100Vac~240Vac |
Input Frequency Range | 50Hz~60Hz |
Input Current | less than 0.5A |
Input Inrush Current | less than 50A |
Efficiency | 85%(MIN)at Rated Voltage |
Leakage Current | less than 5mA |
Standby power | less than 0.5w |
Ripple and Noise | less than 120Mv at full road with 20MHz bandwidth |
Turn On Delay Time | less than 3S (AC:110V and full load) |
Dielectric Voltage | A IEC320 three pin input---output(FG)3000Vac one minute |
Safety protection | output voltage protection (150%-180% rated output current) |
output current protection (150%-180% rated output current) | |
short current protection | |
Operating Temperature | -10°C - +45°C |
Storage Temperature | -20°C - +40°C |
Safety Standard | EN61347 UL/cUL 60950-1 CLASS2 1310 ESD (EN61000 3-3) |
CAS (60950 ITE/TE) FCC Part 15 subpart B Class B | |
ISO 9001: 2008 |
Different DC Jack:5.5*2.5*10mm / 5.5*2.1*10mm / 3.5**1.35*10mm/Aviator connector / XLR connector
Product safety for wideworld country
UL60950:From 3W To 230W (Certification No.:E336005)
UL CLASS II 1310: P<100W (Certification No.:E360964)
EN61347:NTEK-2013DG1203558
EN55015
EN61547
EN61000-3
KC:From 3W To 150W (Certification No.:HU10560-14002B)
GS:From 3W To 120W
PSE:From 3W To 200W
SAA/C-TICK:From 5W To 150W
Certifications Picture
Shenzhen LianYunda Electronics Co., Ltd. is a professional manufacturer in developing producing and marketing of switching power supply, power adapter, LED power supply, waterproof LED power supply and battery chargers, Our logo (POADAPTOR) means power adaptor. Relying on a 30 years experienced engineer team, all of our products are safety compliance such as IEC950,60335,61558,EN60335,61558,UL1950,1310,1012. More than 800 varies kinds of products covered 3W to 150W power supply which are UL,CUL,TUV,GS,CE,CB,BS,SAA,PSE,C-Tick,EK,CEC,EMPS,ERP safety certificated.
Choosing LYD is your good choice in seriously economic environment,it will help you save money and time,then enjoy life.
Application:
If you want goods in fast delivery time,choose us.
If you want highest quality,choose us.
If you want highest efficiency,choose us.
If you want to developing new project,choose us.
We will do our best to cooperate for your project,because we believe in our products and our strong R&D team.
Don't Hesitate,contact with me:
Julie zhu
Tel:86-755-27825520-639
Mobile Phone :8613632735825
Skype : Julie zhu1227
