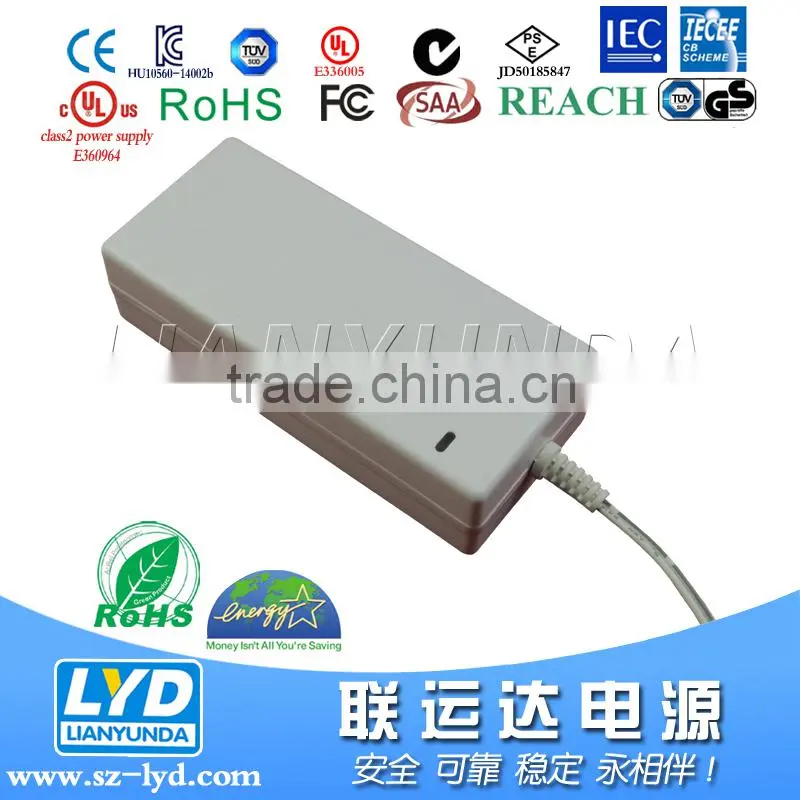

Switching power supply 29V 2A ac dc adapter 58W for electric scooter motor with UL, PSE certificates
Oupt power range |
29V2A 24V2A 12V5A (also have those models for selection) |
The adapter size |
123*55*35MM |
The adapter weight |
360g/pcs |
Input Rated Voltage |
100Vac~240Vac |
Input Frequency Range |
50Hz~60Hz |
Input Current |
less than 0.5A |
Input Inrush Current |
less than 50A |
Efficiency |
80%(MIN)at Rated Voltage |
DC Output Voltage |
29V± 5% (option) |
DC Output Current |
2A (option) |
DC Output Power |
58w (optional) |
Leakage Current |
less than 5mA |
Standby power |
less than 0.5w |
DC connector |
5.5*2.1*10mm (optional) |
DC cable |
1.2m 2464UL 20AWG cable (optional) |
Ripple and Noise |
less than 120Mv at full road with 20MHz bandwidth |
Turn On Delay Time |
less than 3S (AC:110V and full load) |
Certificates |
CE GS UL/CUL FCC ROHS SAA PSE TUVGS KC CLASS2 UL1310 |
Dielectric Voltage |
A IEC320 three pin input---output(FG)3000Vac one minute |
Safety protection |
output voltage protection (150%-180% rated output current) |
output current protection (150%-180% rated output current) | |
short current protection | |
Operating Temperature |
-10°C - +45°C |
Storage Temperature |
-20°C - +40°C |
Safety Standard |
EN60950-1 UL60950-1 ESD (EN61000 3-3) |
CAS (60950 ITE/TE) FCC Part 15 subpart B Class B | |
ISO 9001: 2008 |
1. Used TDK, ST, ON, Rubycon, IR, Toshiba imported materials.
2. 100% of full load burn-in test through the long period of time, effectively guarantee the stability of product quality.
3. Product has overvoltage, overcurrent, overload, under voltage, over temperature protection function.
4. Strong R&D team.
5. The stability of the international quality.
6. The one and only design.
7. All products have passed the UL, cUL, TUV/GS, PSE, SAA, C-Tick, CE, FCC, CB, KC, RoHS certification; the factory passed ISO9001 quality system certification, and has dozens of patents.
Q1. What are the main products in your company?
A1: Our main products include switching power supply, power adapters, battery chargers.
Q2. Can you supply OEM or ODM service?
A2: We can supply OEM/ODM service of any charger or power adapter absolutely!
Q3. Which shipment available?
A3: Normally, we ship goods by sea,air and express. Special requirement also acceptable
Q4. Do you inspect the finished products?
A4: Yes. Each product is 200% tested and inspected before package.
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
