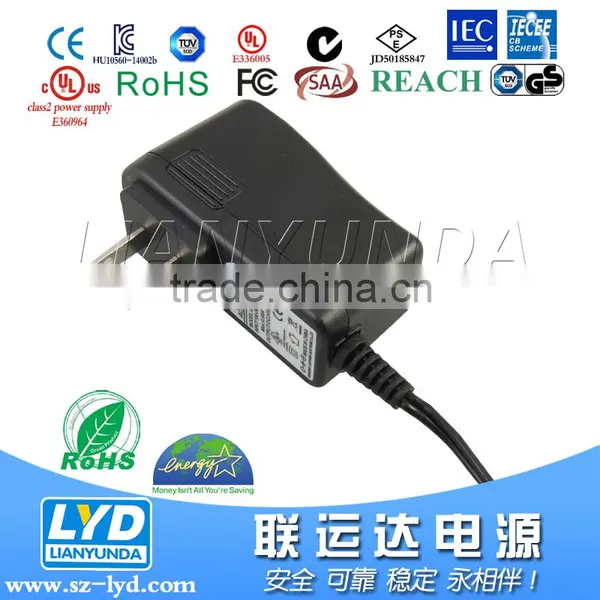

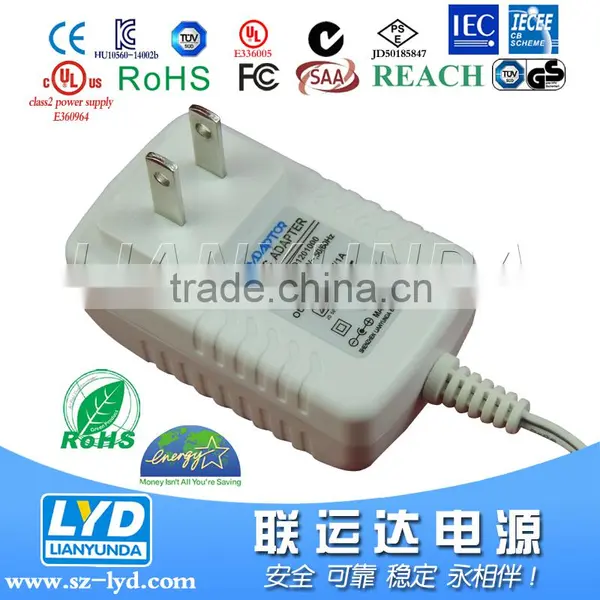

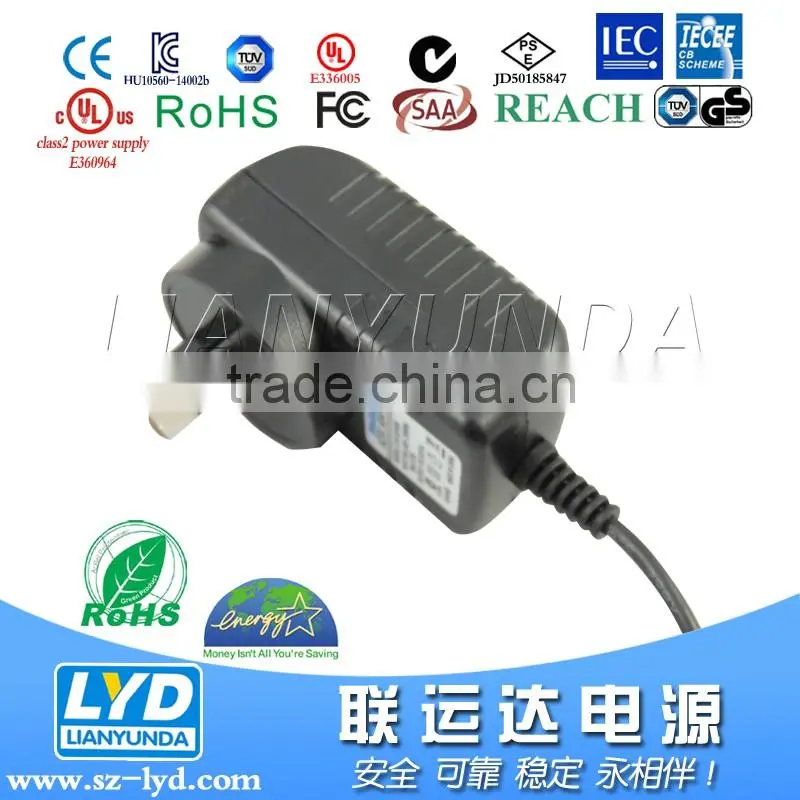

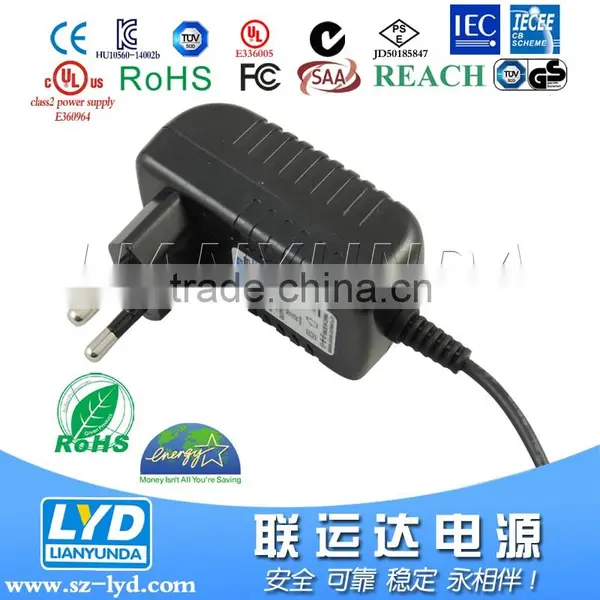

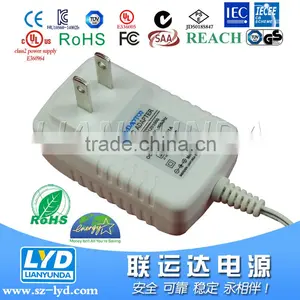

Made in China Plug In Connection and Game Player Usage 12v 1A ac /dc power adapter CE FCC SAA GS approval
Oupt power range |
12v1a,12v0.5a (also have those models for selection) |
The adapter size |
72*43*31mm |
The adapter weight |
90g/pcs |
Input Rated Voltage |
100Vac~240Vac |
Input Frequency Range |
50Hz~60Hz |
Input Current |
less than 0.5A |
Input Inrush Current |
less than 50A |
Efficiency |
80%(MIN)at Rated Voltage |
DC Output Voltage |
12V± 5% (option) |
DC Output Current |
1A (option) |
DC Output Power |
12w (optional) |
Leakage Current |
less than 5mA |
Standby power |
less than 0.5w |
DC connector |
5.5*2.1*10mm (optional) |
DC cable |
1.5m 2464UL 22AWG cable (optional) |
Ripple and Noise |
less than 120Mv at full road with 20MHz bandwidth |
Turn On Delay Time |
less than 3S (AC:110V and full load) |
Certificates |
CE GS UL/CUL FCC ROHS SAA PSE KC CLASS 2 UL1310 |
Dielectric Voltage |
A IEC320 three pin input---output(FG)3000Vac one minute |
Safety protection |
output voltage protection (150%-180% rated output current) |
output current protection (150%-180% rated output current) | |
short current protection | |
Operating Temperature |
-10°C - +45°C |
Storage Temperature |
-20°C - +40°C |
Safety Standard |
EN60950-1 UL60950-1 ESD (EN61000 3-3) |
CAS (60950 ITE/TE) FCC Part 15 subpart B Class B | |
|
ISO 9001 : 2008 |

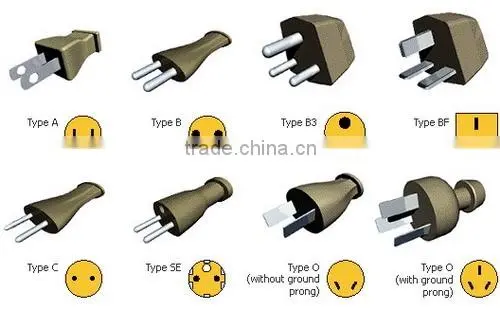

Types
Packing and delivery
Inner package: PE bags and white box or as you demand; Outer package: Carton or according your requirement
Shipping details: 7~12 days
Product certification
FAQ
1. Payment
You can pay for the order via :T/T,L/C.
2. Warranty
1~2 years
3. How to Contact US?
Send your Inquiry Details in the below for free sample, Click "Send" Now!
Contact US
Spring Liu
Tel: 86-0755-27825520-639
QQ: 2851331870
Made in China Plug In Connection and Game Player Usage 12v 1A ac /dc power adapter CE FCC SAA GS approval
