Home > Products > LED drivers > Output Power and Single Output Type 12 volt 4 amp power supply led driver plastic case

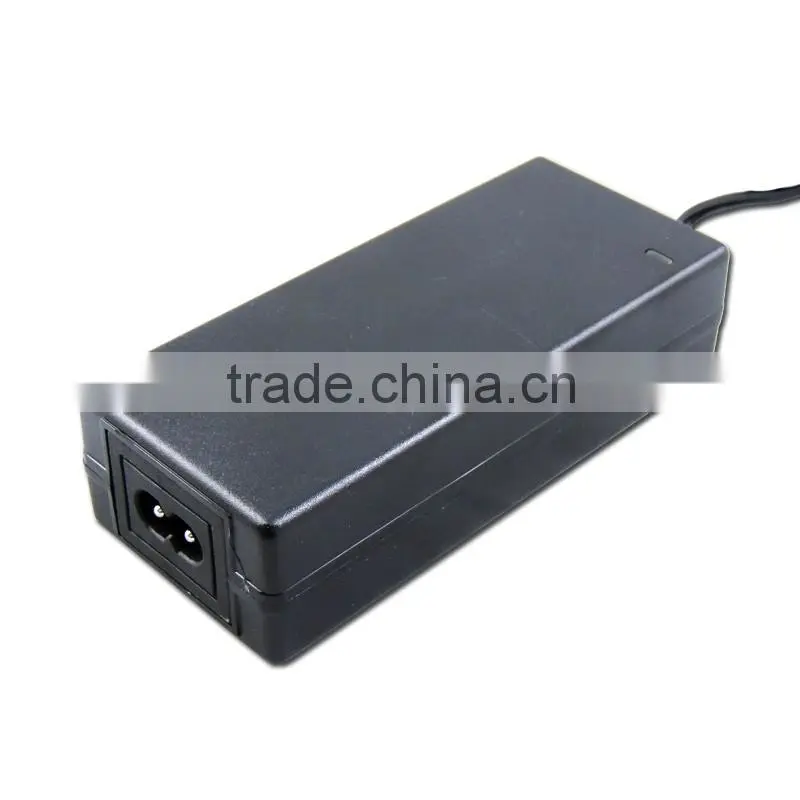

Output Power and Single Output Type 12 volt 4 amp power supply led driver plastic case
- 100 Piece / Pieces per Month
- shenzhen
- T/T
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | LYD | Model Number: | LYD1204000 |
| Output Power: | 1 - 50W | Output Type: | Single | Input Voltage: | Other, AC 100-240 |
| Output Voltage: | 12V | Output Frequency: | 50/60Hz | Output Current: | 2A |
Product Description
Output Power and Single Output Type 12 volt 4 amp power supply led driver plastic case
(click here,you will look similar products)
12 volt 4 amp power supply led driver plastic case(OEM/ODM) :
Input Voltage:
Rated Voltage:100-240Vac
Variation Range:90-264Vac
Input Frequency:
Rated Frequency:50/60Hz.
Variation Frequency:47-63Hz
Input Current:0.5Arms At any input voltage and rated. DC output rated load.
Inrush Current: 30 Amps Max. Cold start at 240Vac input, with rated load and 25°C ambient.
Output power range | 12v 4a (also have those models for selection) |
Input Rated Voltage | 100Vac~240Vac |
Input Frequency Range | 50Hz~60Hz |
Input Current | less than 0.5A |
Input Inrush Current | less than 50A |
Efficiency | 82%(MIN)at Rated Voltage |
DC Output Voltage | 12V± 5% (option) |
DC Output Current | 4A (option) |
DC Output Power | 48W (optional) |
Leakage Current | less than 5mA |
Standby power | less than 0.5w |
DC connector | 5.5*2.1*10mm (optional) |
DC cable | 1.2m 2464 UL 18AWG cable (optional) |
Ripple and Noise | less than 120Mv at full road with 20MHz bandwidth |
Turn | less than 3S (AC:110V and full load) |
Certificates | CE GS UL/CUL FCC ROHS SAA PSE TUVGS KC CLASS2 UL1310 |
Shipping & packing
Shipping :
UPS,DHL,Fedex,TNT,EMS(global Express),Shunfeng(Unite state,Korea,Japan, Southeast Asia)
Packing of 12 volt 4 amp power supply led driver plastic case :
white box+carton,carton size:105*42*148MM,50PCS/carton
12 volt 4 amp power supply :DC connector
C8/C6/C14
How to contact us?if you have any requirement,send inquiry to me!
Kate
TEL:13651409973
QQ:2851331858
Skype:Kate_liu1993
