Wholesales Good Price Ultra Light Slim P3.91 Led Screen Panel, Indoor Led Large Screen Display, Led Advertising Panel

Wholesales Good Price Ultra Light Slim P3.91 Led Screen Panel, Indoor Led Large Screen Display, Led Advertising Panel thumbnail-1
Wholesales Good Price Ultra Light Slim P3.91 Led Screen Panel, Indoor Led Large Screen Display, Led Advertising Panel photo-1
US$ 400 - 450 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LIYI
Model Number:
128*128 dots
Contact Supplier Request Quote Chat Now
Shenzhen Liyi Optoelectronic Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN/HONGKONG
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LIYI
Model Number 128*128 dots
Usage Indoor
Tube Chip Color Full Color
Display Function Other, animation/graphics/video/word/picture/time/date/temperature/humidity
Pixels Other, 3.91mm
Screen Dimension 500*500*75mm





Product Description

Professional led display manufacturer, covering all pixels

Complete facilities, factory price

Skype:liyisales03

wholesales good price ultra light slim p3.91 led screen panel, indoor led large screen display, led advertising panel



1.P3.91 SMD LED Module

Model:P3.91-ID-FC

Use:indoor

Module size:250*250mm

Pixel component:1R1G1B(SMD2020)

Resolution:64*64dots

Drive mode:1/16scan

Data inteface:HUB75



2.Features

 ·65536 pixel dots per square meter resolution

·With super-high brightness LED, high contrast

·High frame frequency, wider view angel

·With module development and distributed scan technology, high reliability

·Universal AC input / full range

·IP43 protection level, indoor solution

·PC synchronous or asynchronous control(optional)

·Use common video play software, easy to use

·2 years warranty



3. Technical Parameters for P3.91 LED Display

Item LIYI-ID-P3.91SMD
Pixel pitch 3.91 mm
Pixel density 65536 dots/m2
Pixel configuration 1R1G1B(2020SMD)
Max brightness 1200nit
View angle(horizontal) ±60°
Gray scale 65536 (16 bit)
Colors 16.7M
Color temperature 6500K-9300K
Refresh rate 3000HZ
Contrast ratio 4000:01:00
Frame rate 60HZ
Standard cabinet size 500×500mm
Weight 35KG/sqm
Cabinet resolution 128×128 pixels
Cabinet material die-casting aluminum cabinets
Protection level IP43
Max power consumption 600W/m2
AVE. consumption 250W/m2
Drive Method 1/16 scan, constant current
Malfunction dot rate 0.1≤‰
Control mode PC synchronous control
Input voltage(AC) AC90—240V
Operation voltage DC5V
Operation temperature -20~50℃
Operation humidity 10%~90%
MTBF 5000h
Life span 100000h

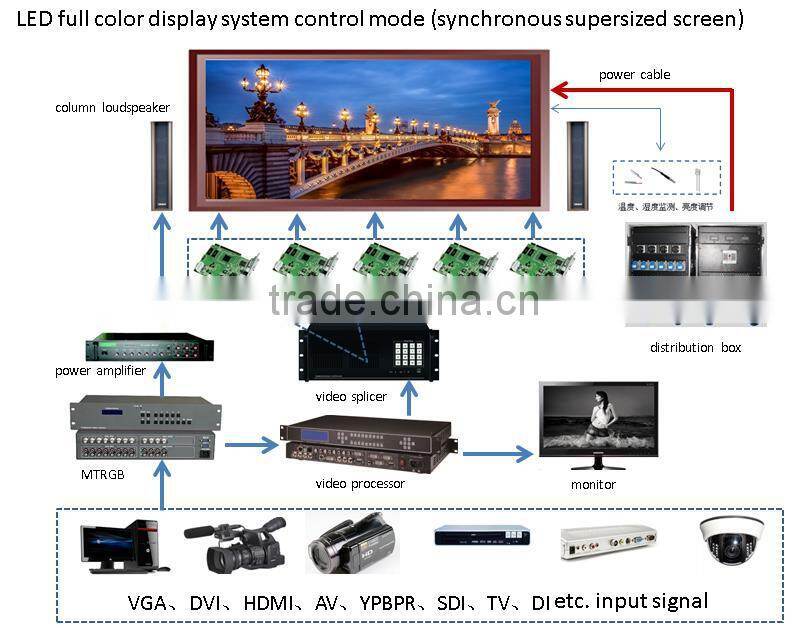

4.Control Mode

synchronous control

wholesales good price ultra light slim p3.91 led screen panel, indoor led large screen display, led advertising panel

super size synchronous control

wholesales good price ultra light slim p3.91 led screen panel, indoor led large screen display, led advertising panel



5.Cabinets and Other Types

wholesales good price ultra light slim p3.91 led screen panel, indoor led large screen display, led advertising panel

Use Environments

Model

Resolution (dots/m2)

Cabinet Size(mm)

Max. Power Consumption(W/m2)

Brightness(cd/m2)

Weight(kg/pc)







INDOOR

LIYI-ID-P3.91

65410

500*500*75

600

1200

8

LIYI-ID-P4

62500

512*512*75

650

1200

9

LIYI-ID-P4.81

43222

500*500*75

600

1300

9

LIYI-ID-P5

40000

640*640*75

700

1300

11

LIYI-ID-P6

27777

576*576*75

500

5000

9

LIYI-ID-P6.25

25600

500*500*75

550

1400

9

LIYI-ID-P10

10000

640*640*75

600

1300

15

LIYI-ID-P12.5

6400

500*1000*75

600

1000

10

OUTDOOR

LIYI-OD-P8

15625

640*640*75

900

5000

16

LIYI-OD-P10

10000

640*640*75

900

5500

16



wholesales good price ultra light slim p3.91 led screen panel, indoor led large screen display, led advertising panel

wholesales good price ultra light slim p3.91 led screen panel, indoor led large screen display, led advertising panel

wholesales good price ultra light slim p3.91 led screen panel, indoor led large screen display, led advertising panel

wholesales good price ultra light slim p3.91 led screen panel, indoor led large screen display, led advertising panel

wholesales good price ultra light slim p3.91 led screen panel, indoor led large screen display, led advertising panel



Packaging & Shipping

6.Packing&Shipping

p3.91 led screen panel, indoor led large screen display, led advertising panel

-small quantity, use carton boxes; big quantity,use plywood boxes.

-shipping: small quantity by EXPRESS-DHL,UPS,TNT,FEDEX; for big quantity, air shipping and sea shipping will be more suitable.

wholesales good price ultra light slim p3.91 led screen panel, indoor led large screen display, led advertising panel

wholesales good price ultra light slim p3.91 led screen panel, indoor led large screen display, led advertising panel

wholesales good price ultra light slim p3.91 led screen panel, indoor led large screen display, led advertising panel



Our Services

7.Our Service

1) shipping way will be confirmed by the customer: usually EXPRESS(DHL, FEDEX,TNT...) AIR shipping and sea shipping.

2) We can support you from product design, drawing, structure, technices and after-sales service to solve your question timely.

3) Accept custom design; professional R&D team design the most suitable product for you.

4) Factory production capacity guarantees your order delivery.



Company Information

8.Factory Profile

p3.91 led screen panel, indoor led large screen display, led advertising panel

SHENZHEN LIYI OPTOELECTRONIC Co., Ltd is a Chinese high-tech optoelectronics display enterprise which specializes in the research, development, production, sales, construction and service.

Specializing in LED field since 2009, we took innovation in the market and product classification and innovative products already have strong core competitiveness. LIYI Tech established strict quality control over all of LED components, LED display and the whole set of video systems, devoting to provide the most suitable indoor or outdoor display system solutions from design, manufacturing, installation and maintenance.

Main products: LED pharmacy cross, LED glasses sign, LED sign, LED display, LED taxi/bus sign, LED display accessories and LED lighting.

wholesales good price ultra light slim p3.91 led screen panel, indoor led large screen display, led advertising panel

FAQ

9.After-sale Service

-2 years warranty,if broken in warranty time,we will supply free technical support or free spare parts to prepare or replace.

-For installation and operation, any question, contact anytime via email&skype&phone call.

-Direclty remote control via team viewer.



10.Certificate

wholesales good price ultra light slim p3.91 led screen panel, indoor led large screen display, led advertising panel
