p10 smd outdoor led display, rental led screen, die-casting LED Stage display
1.Rental Led Display Introduction
Indoor full color display is one kind of matrix LED display composed of light emitting diode (SMD LED), driving circuit, data processing circuit and cabinet, taking SM technology and diverse control modes. The main application areas: shopping centers, hospitals, banks, enterprises and public institutions, exhibition hall, ticket hall, hotel, securities companies, malls, businesses, schools, stage, bank, securities, public security, transportation, Industry and Commerce, electricity, customs, hospitals, parks, airports, stations, stadiums and so on.
2.Features
· User can arrange any display modes at will, like display text, graphics,images,animations, video information, with unlimited display amount
· With super-high brightness LED, high contrast
· High frame frequency, wider view angel
· With module development and distributed scan technology, high reliability
· Universal AC input / full range
· exhibition modular design makes installation and maintenance more easier
· PC synchronous or asynchronous control(optional)
· Common video play software, easy to operate
· 2 years warranty
3.Technical Specifications
Item | LIYI-OD-P10 |
Pixel pitch | 10 mm |
Pixel density | 100000 dots/m2 |
Pixel configuration | 1R1G1B(3535SMD) |
Max brightness | 5500nit |
View angle(horizontal) | ±60° |
Gray scale | 65536 (16 bit) |
Colors | 16.7M |
Color temperature | 6500K-9300K |
Refresh rate | 3000HZ |
Contrast ratio | 4000:1 |
Frame rate | 60HZ |
Standard cabinet size | 640×640×75mm |
Weight | 16KG |
Cabinet resolution | 64×64 pixel |
Cabinet material | Die-casting Aluminum alloy |
Protection level | IP65 |
Max power consumption | 900W/m2 |
AVE. consumption | 300W/m2 |
Drive Method | 1/2 scan, constant current |
Malfunction dot rate | 0.1≤‰ |
Control mode | PC synchronous or asynchronous control(optional) |
Input voltage(AC) | AC110/240V |
Operation voltage | DC5V |
Operation temperature | -10~50℃ |
Operation humidity | 10%~90% |
MTBF | 5000h |
Life span | 100000h |
4.Control mode:
Asynchronous control mode
cable, U disk (USB), Wireless (WIFI), LAN, Internet, mobile networks (3G/4G), 8 control modes (can be freely selected according to the actual scene). As follows:
Synchronous control mode
synchronous convenience control and synchronous supersized-screen control (can be freely selected according to the scene). As follows:

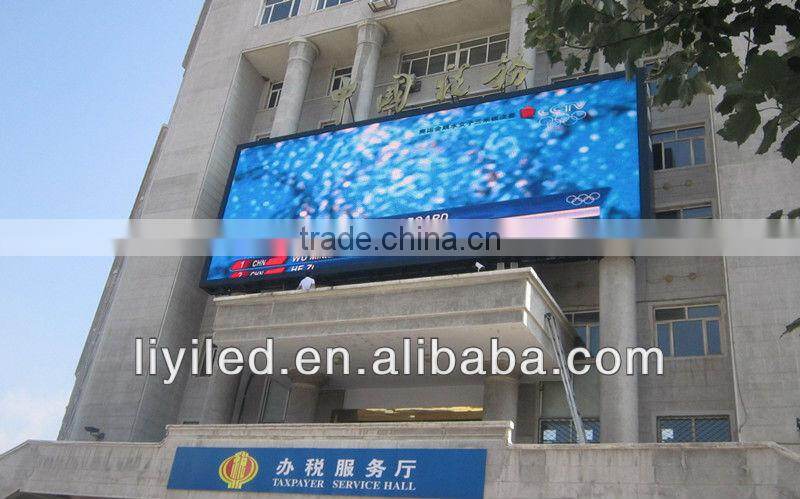

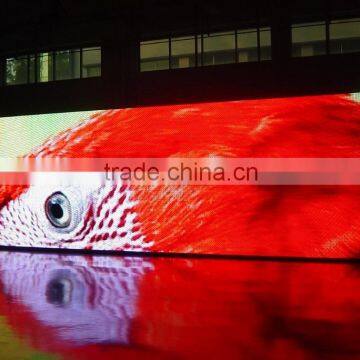

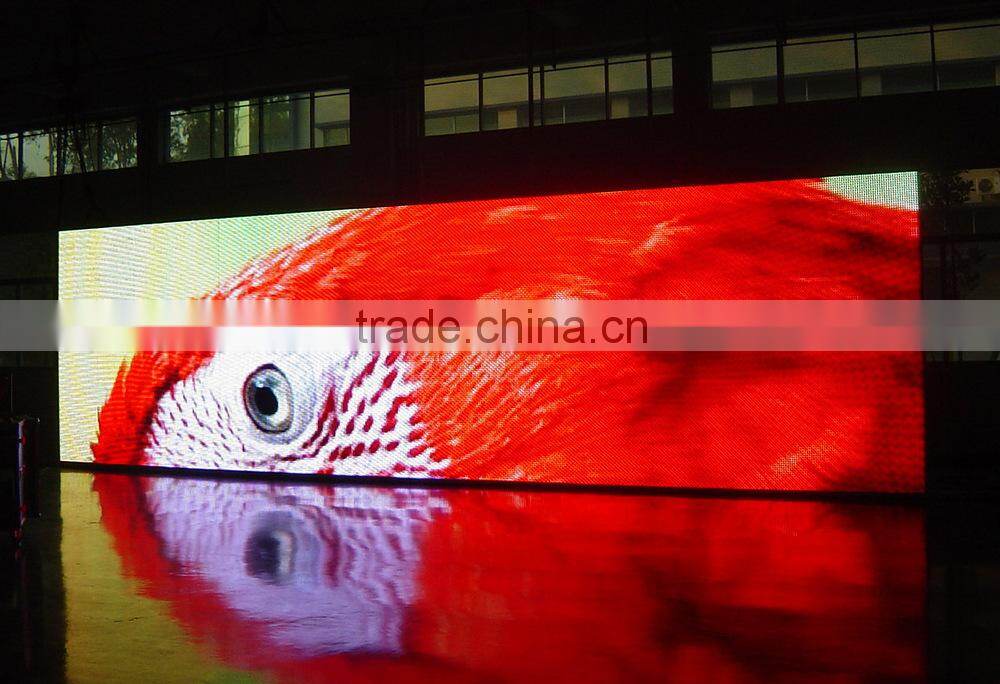

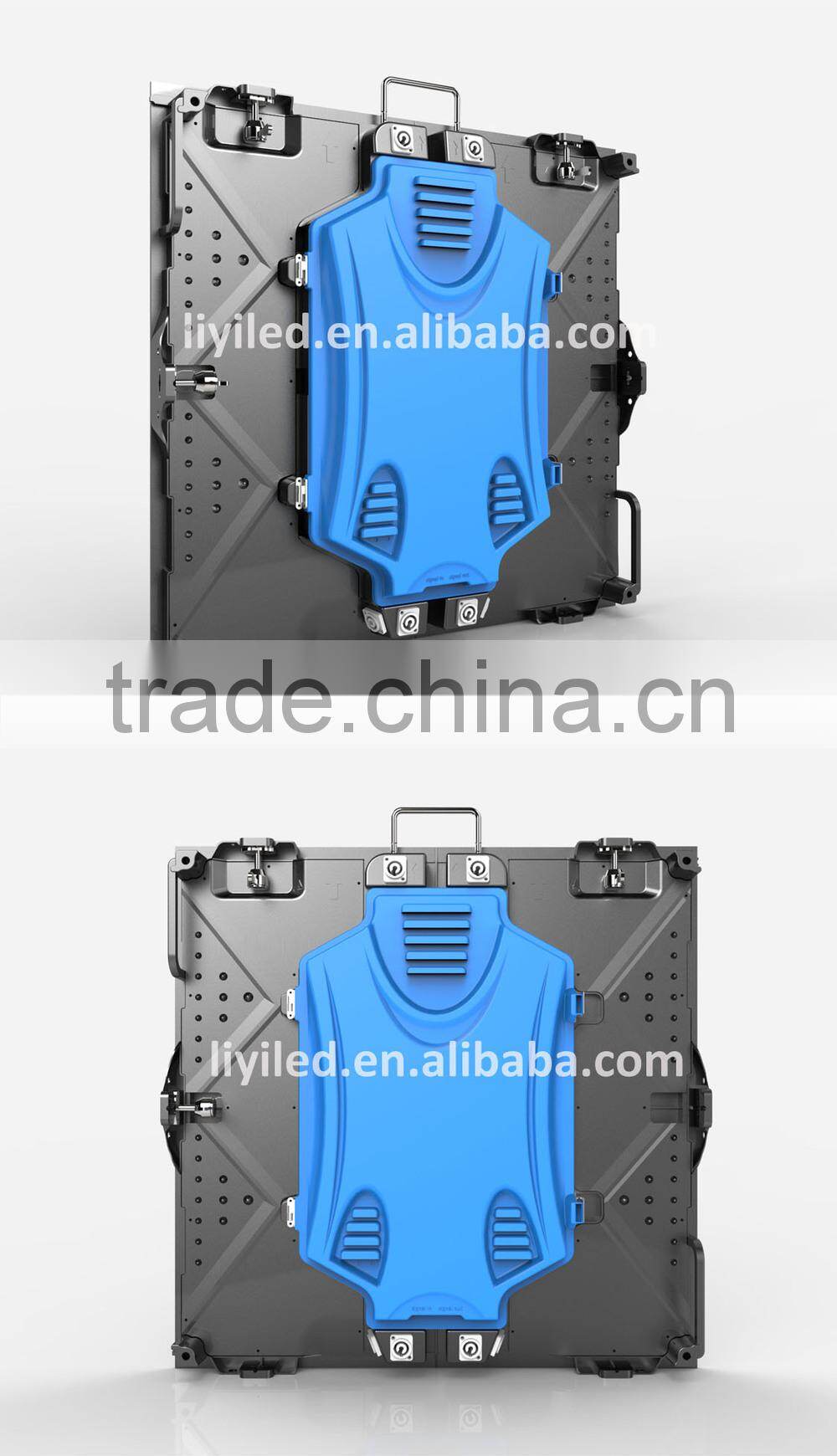

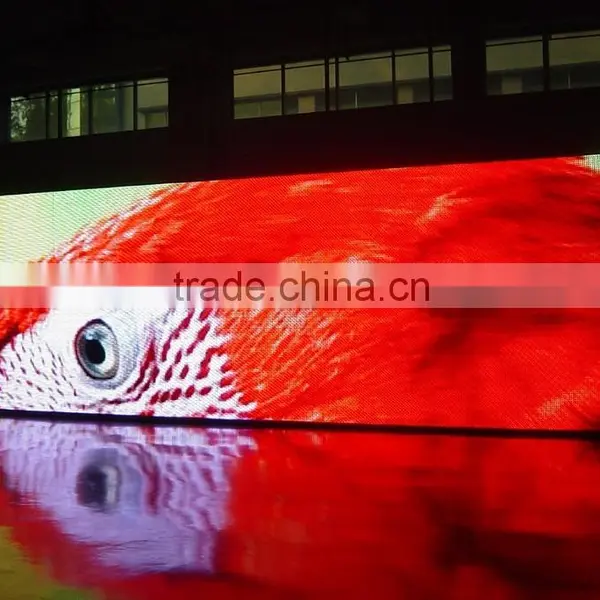

5.Cabinets and Projects
6.Other Types Available
Use Environments | Model | Resolution (dots/m2) | Cabinet Size(mm) | Max. Power Consumption(W/m2) | Brightness(cd/m2) | Weight(kg/pc) |
INDOOR | LIYI-ID-P3.91 | 65410 | 500*500*75 | 600 | 1200 | 8 |
LIYI-ID-P4 | 62500 | 512*512*75 | 650 | 1200 | 9 | |
LIYI-ID-P4.81 | 43222 | 500*500*75 | 600 | 1300 | 9 | |
LIYI-ID-P5 | 40000 | 640*640*75 | 700 | 1300 | 11 | |
LIYI-ID-P6 | 27777 | 576*576*75 | 500 | 5000 | 9 | |
LIYI-ID-P6.25 | 25600 | 500*500*75 | 550 | 1400 | 9 | |
LIYI-ID-P10 | 10000 | 640*640*75 | 600 | 1300 | 15 | |
LIYI-ID-P12.5 | 6400 | 500*1000*75 | 600 | 1000 | 10 | |
OUTDOOR | LIYI-OD-P8 | 15625 | 640*640*75 | 900 | 5000 | 16 |
LIYI-OD-P10 | 10000 | 640*640*75 | 900 | 5500 | 16 |
7.Packing&Shipping
-Strengthen plywood boxes/Flight cases
-shipping: small quantity by EXPRESS-DHL,UPS,TNT,FEDEX; for big quantity, air shipping and sea shipping will be more suitable.
8.Our Service
1) shipping way will be confirmed by the customer: usually EXPRESS(DHL, FEDEX,TNT...) AIR shipping and sea shipping.
2) We can support you from product design, drawing, structure, technices and after-sales service to solve your question timely.
3) Accept custom design; professional R&D team design the most suitable product for you.
4) Factory production capacity guarantees your order delivery.
SHENZHEN LIYI OPTOELECTRONIC Co., Ltd is a Chinese high-tech optoelectronics display enterprise which specializes in the research, development, production, sales, construction and service.
Specializing in LED field since 2009, we took innovation in the market and product classification and innovative products already have strong core competitiveness. LIYI Tech established strict quality control over all of LED components, LED display and the whole set of video systems, devoting to provide the most suitable indoor or outdoor display system solutions from design, manufacturing, installation and maintenance.
Adhering to the business philosophy of "customer first, pragmatic and efficient ", we believe that technology will create the future, continually play our strengths to win the trust of users with leading technology, excellent quality, exquisite craftsmanship and sincere service to seek goodness and beauty.
9.Factory Profile
10.After-sale Service
-2 years warranty,if broken in warranty time,we will supply free technical support or free spare parts to prepare or replace.
-For installation and operation, any question, contact anytime via email&skype&phone call.
-Direclty remote control via team viewer.
11.Certificate
