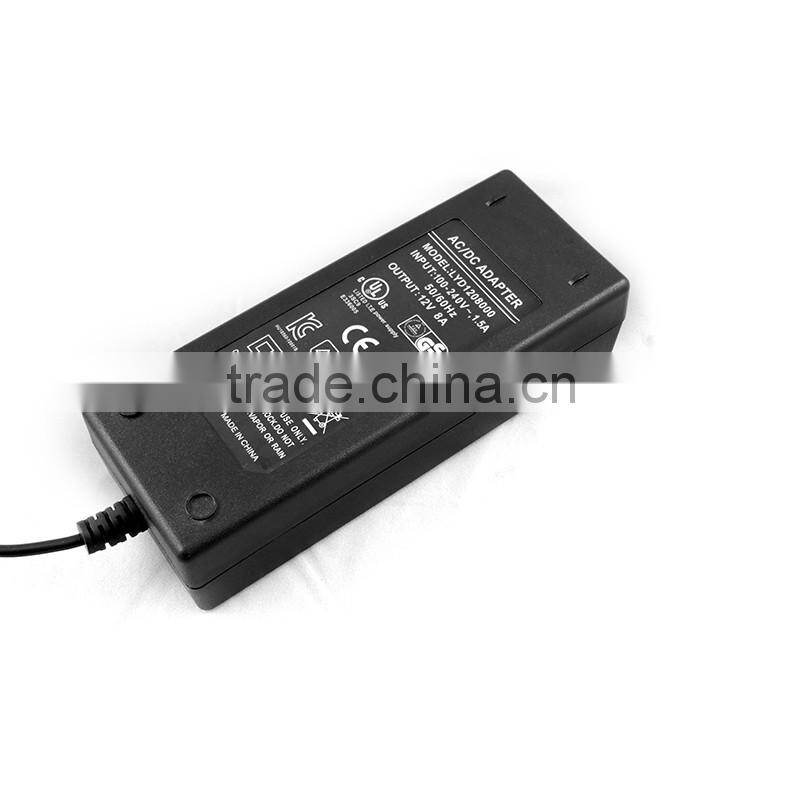

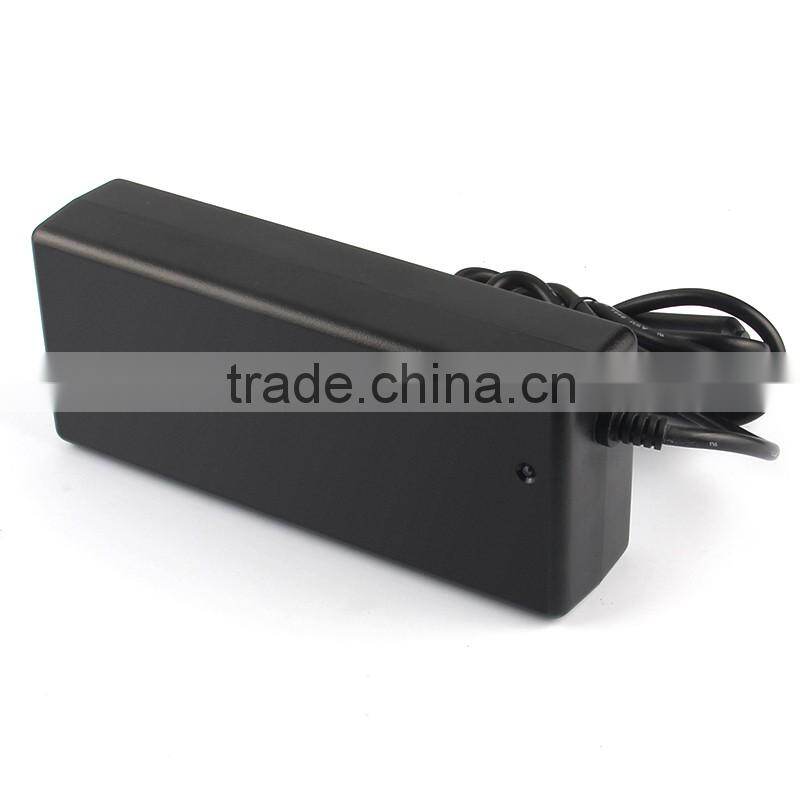

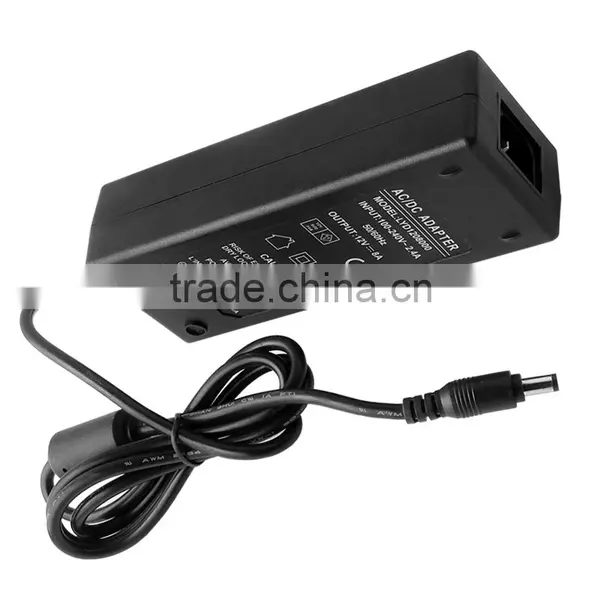

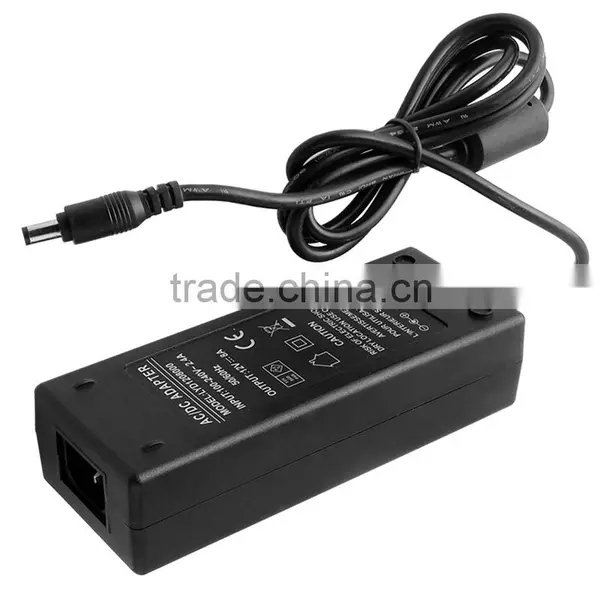

12V 8A Desktop switching power supply AC/DC adapter for hoverboard with CE/FCC approval
Oupt power range |
12V6A 24V4A 36V3A (also have those models for selection) |
The adapter size |
152*62*38mm |
The adapter weight |
560g/pcs |
Input Rated Voltage |
100Vac~240Vac |
Input Frequency Range |
50Hz~60Hz |
Input Current |
less than 0.5A |
Input Inrush Current |
less than 50A |
Efficiency |
80%(MIN)at Rated Voltage |
DC Output Voltage |
12V± 5% (option) |
DC Output Current |
8A (option) |
DC Output Power |
96w (optional) |
Leakage Current |
less than 5mA |
Standby power |
less than 0.5w |
DC connector |
5.5*2.1*10mm (optional) |
DC cable |
1.5m 2464UL 16AWG cable (optional) |
Ripple and Noise |
less than 120Mv at full road with 20MHz bandwidth |
Turn On Delay Time |
less than 3S (AC:110V and full load) |
Certificates |
CE GS UL/CUL FCC ROHS SAA PSE TUVGS KC CLASS2 UL1310 |
Dielectric Voltage |
A IEC320 three pin input---output(FG)3000Vac one minute |
Safety protection |
output voltage protection (150%-180% rated output current) |
output current protection (150%-180% rated output current) | |
short current protection | |
Operating Temperature |
-10°C - +45°C |
Storage Temperature |
-20°C - +40°C |
Safety Standard |
EN60950-1 UL60950-1 ESD (EN61000 3-3) |
CAS (60950 ITE/TE) FCC Part 15 subpart B Class B | |
|
ISO 9001: 2008 |
1. Used TDK, ST, ON, Rubycon, IR, Toshiba imported materials.
2. 100% of full load burn-in test through the long period of time, effectively guarantee the stability of product quality.
3. Product has overvoltage, overcurrent, overload, under voltage, over temperature protection function.
4.Complete the proof: 2-3 days; Complete the rapid response delivery: 7~15 days; Any inquiries will be replied within 24 hours
5. 1~2 years warranty, if there was any default units, take some pictures, we will replace the related quantity.
6. Our products with UL, CUL, TUV/GS, PSE, SAA, C-Tick, CE, FCC, CB, KC, RoHS approved.
Inner package: PE bags and white box or as you demand;
Outer package: Carton or according your requirement
Shipping details: 7~12 days
