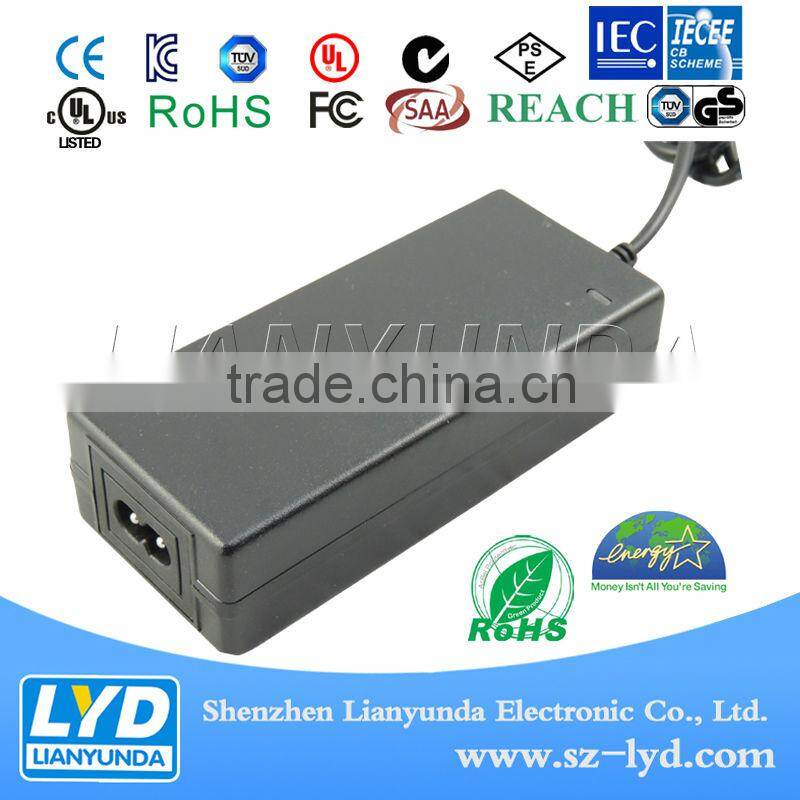

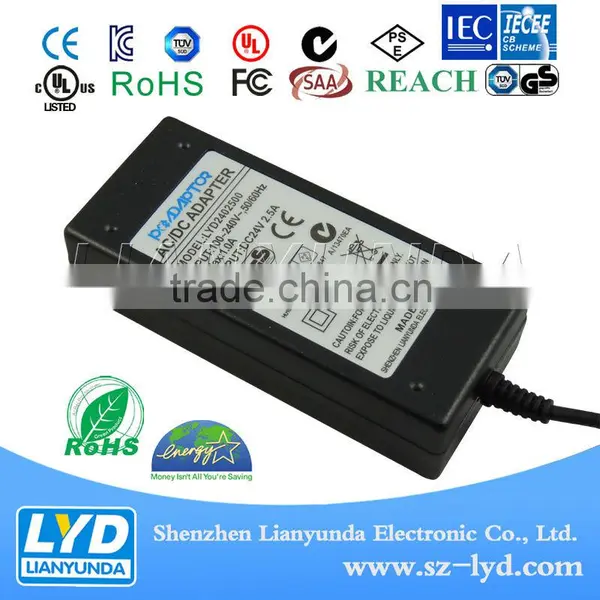

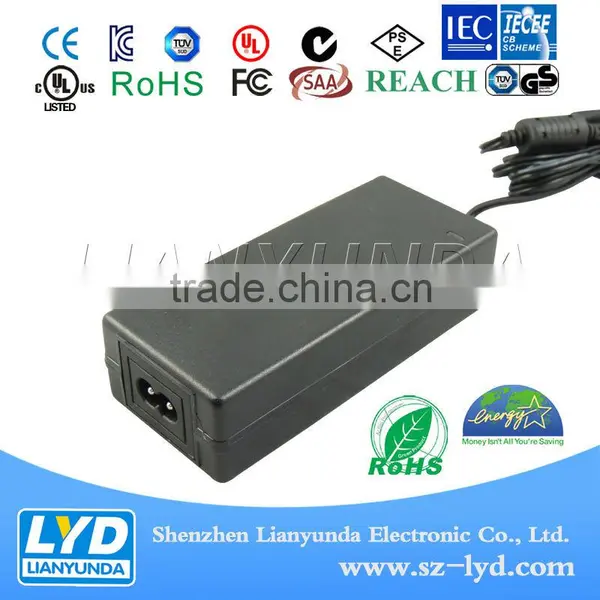

CCTV Power Supply 12V 5A 60W Power Supply

US$ 6.5 - 8.5 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

LYD

Model Number:

LYD1205000

Shenzhen Lianyunda Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name LYD

Model Number LYD1205000

Input Voltage 100-240V

Output Voltage 12V

Output Power 50W

Output Frequency 50/60HZ

Output Current 5A

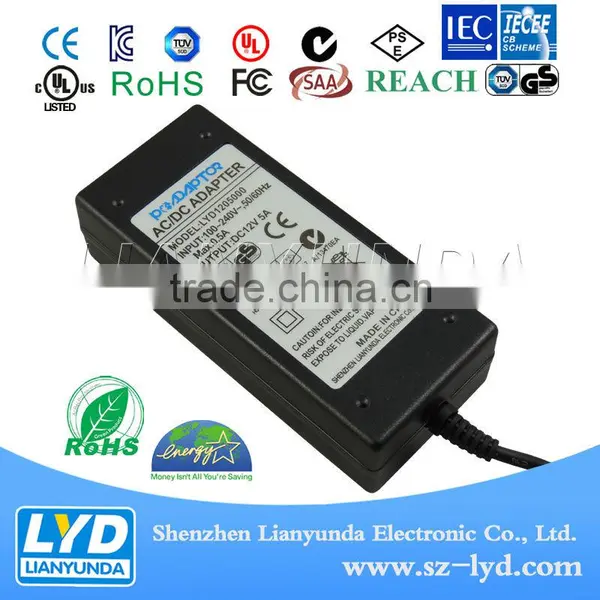

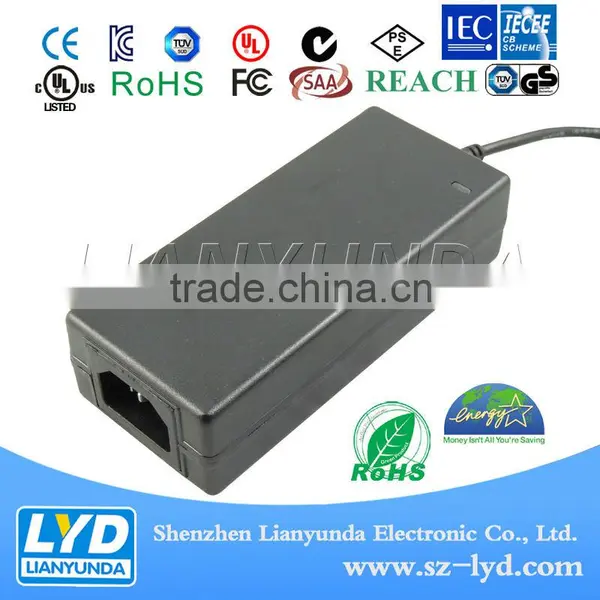

CCTV Power supply 12V 5A 60W Power supply

Oupt power range	12V 4A 24V2.5A 24V3A (also have those models for selection)
The adapter size	1235535mm
The adapter weight	360g/pcs
Input Rated Voltage	100Vac~240Vac
Input Frequency Range	50Hz~60Hz
Input Current	less than 0.5A
Input Inrush Current	less than 50A
Efficiency	80%(MIN)at Rated Voltage
DC Output Voltage	12V± 5% (option)
DC Output Current	5V (option)
DC Output Power	60w (optional)
Leakage Current	less than 5mA
Standby power	less than 0.5w

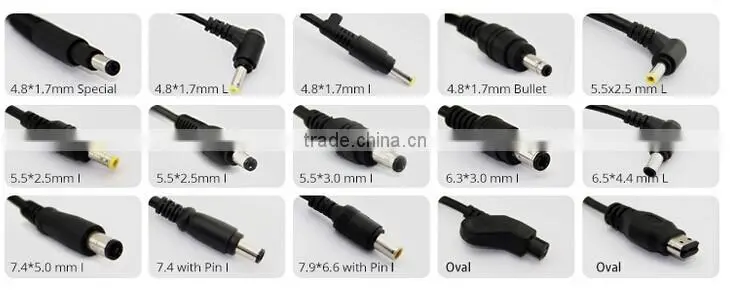

DC connector	5.52.110mm (optional)
DC cable	1.5m 2468UL 18AWG cable (optional)
Ripple and Noise	less than 120Mv at full road with 20MHz bandwidth
Turn On Delay Time	less than 3S (AC:110V and full load)
Certificates	CE GS UL/CUL FCC ROHS SAA PSE TUVGS KC CLASS2 UL1310
Dielectric Voltage	A IEC320 three pin input---output(FG)3000Vac one minute
Safety protection	output voltage protection (150%-180% rated output current)
	output current protection (150%-180% rated output current)
	short current protection
Operating Temperature	-10°C - +45°C
Storage Temperature	-20°C - +40°C
Safety Standard	EN60950-1 UL60950-1 ESD (EN61000 3-3)
	CAS (60950 ITE/TE) FCC Part 15 subpart B Class B
	ISO 9001: 2008
