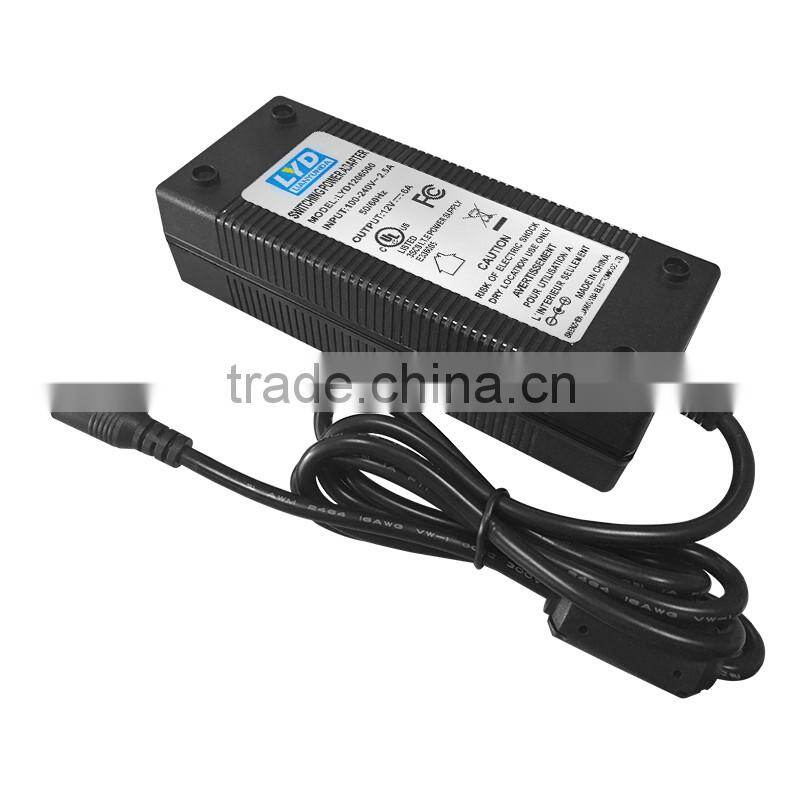

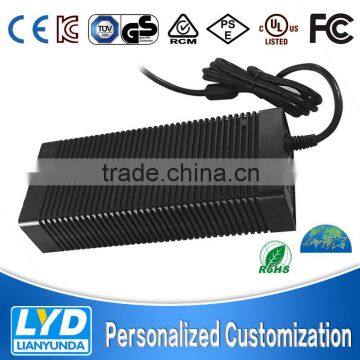

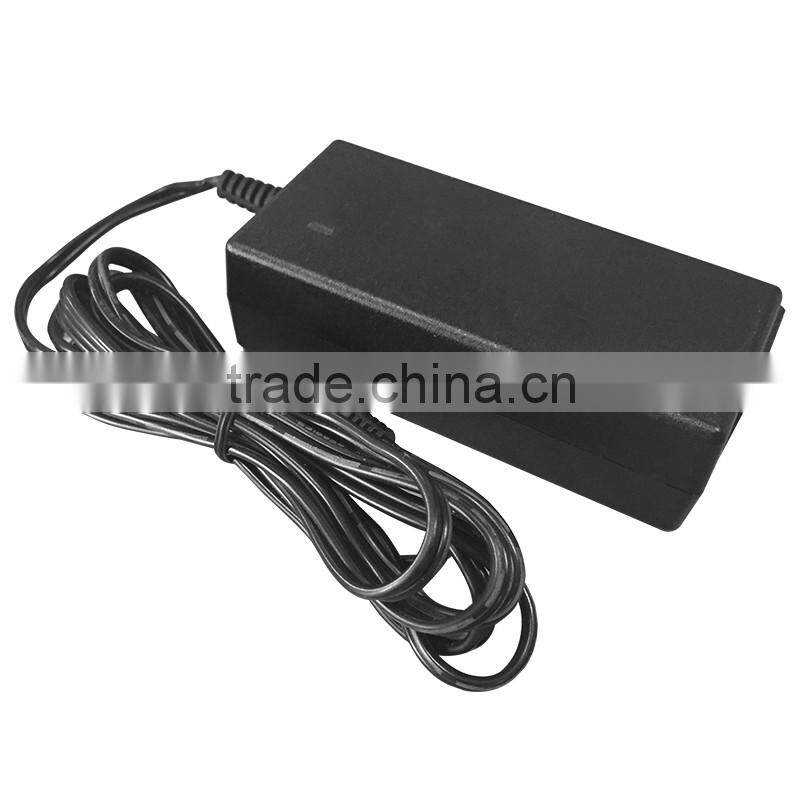

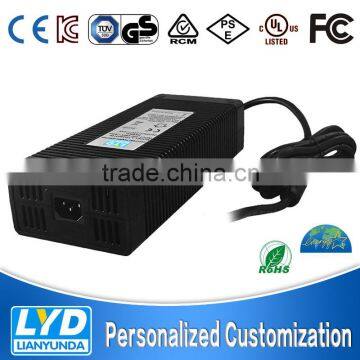

60W Power Adapter 12V 5A AC DC Adapter 220V to 12V power supply for led lighting
Details
1) input voltage: AC 100-240V 50/60HZ
2) range voltage: AC 90-264V 47/63HZ
3) output Powe:60W
4) output voltage:5-48V
5) output currency:0-10A
Safety Approvals
UL/CUL, PSE, GS, BS, CE, CB, FCC, and EK-Mark,CCC Certification
Protections
1)over voltage protection: 120%min
2)over current protection: 120%min
3)over protection
4Short-circuit protection: automatic recovery
5Load regulation: ±5%
Environmental requirement
1)operating temperature: 0-40
2)storage temperature: -20-85
3)opera ting relative humidity:595%RH
4) Withstanding voltage: AC 3,000V (minimum), 5mA (maximum)
5Insulation resistance: DC 500V 100MΩ (minimum)
Brand name: LYD
Advantages
1. AC input power suitable for the world
2. Soft-start current can reduce the AC input impact efficiency
3. With short-circuit and overload protection
4. Compact size ,light weight
5. 100%full-load burning test
6. Installed with EMI filter ,minimum wave
Oupt power range |
5-48V,0-10A,72W(also have those models for selection) |
The charger size |
5.5*2.1*10 cm |
The charger weight |
90g/pcs |
Input Rated Voltage |
100Vac~240Vac |
Input Frequency Range |
50Hz~60Hz |
Input Current |
less than 0.5A |
Input Inrush Current |
less than 50A |
Efficiency |
90%(MIN)at Rated Voltage |
DC Output Voltage |
12V (option) |
DC Output Current |
5A (option) |
DC Output Power |
60W (optional) |
Leakage Current |
less than 5mA |
Standby power |
less than 0.5w |
Ripple and Noise |
less than 120Mv at full road with 20MHz bandwidth |
Turn On Delay Time |
less than 3S (AC:110V and full load) |
Certificates |
CE GS UL/CUL FCC ROHS SAA PSE TUVGS KC CLASS2 UL1310 |
Dielectric Voltage |
A IEC320 three pin input---output(FG)3000Vac one minute |
Safety protection |
output voltage protection (150%-180% rated output current) |
output current protection (150%-180% rated output current) | |
short current protection | |
Operating Temperature |
-10°C - +45°C |
Storage Temperature |
-20°C - +40°C |
Safety Standard |
EN60950-1 UL60950-1 ESD (EN61000 3-3) |
CAS (60950 ITE/TE) FCC Part 15 subpart B Class B | |
ISO 9001: 2008 |
