Transformer Australia Safety Certification 12v ac to dc 3a 3.5a 4a 5a 5.5a Led Driver With SAA C-TICK RCM

US$ 4 - 8 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

LYD

Model Number:

LYD1203500

Shenzhen Lianyunda Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name LYD

Model Number LYD1203500

Output Type DC

Connection Desktop

Transformer australia safety certification 12v ac to dc 3a 3.5a 4a 5a 5.5a led driver with SAA C-TICK RCM

Product Description

Your Best Partner-LYD

1,High efficiency and energy saving--Meeting US DOE VI levels

2,Our raw materials imported from TDK STON,Toshiba,Rubycon,IR,fuji, AUK---Making sure our high quality

3,Input voltage 90-264V 47/63HZ ,with the standards of global use

4,Hi-pot 3kV

5,Several hours ageing test

Product Details

Product features:

1 wide voltage input: 90-264V, 100-240V, the largest available for all the countries in the world use.

2 with short circuit, overload, over-current protection function, use more safety.

3 100% full load test, stable performance.

4 good insulation properties, high dielectric strength.

5 the anti-jamming good strength, high reliability.

6 switching power supply performance of DC ripple small, high work efficiency, energy saving and environmental protection.

7 products through international certification requirements.

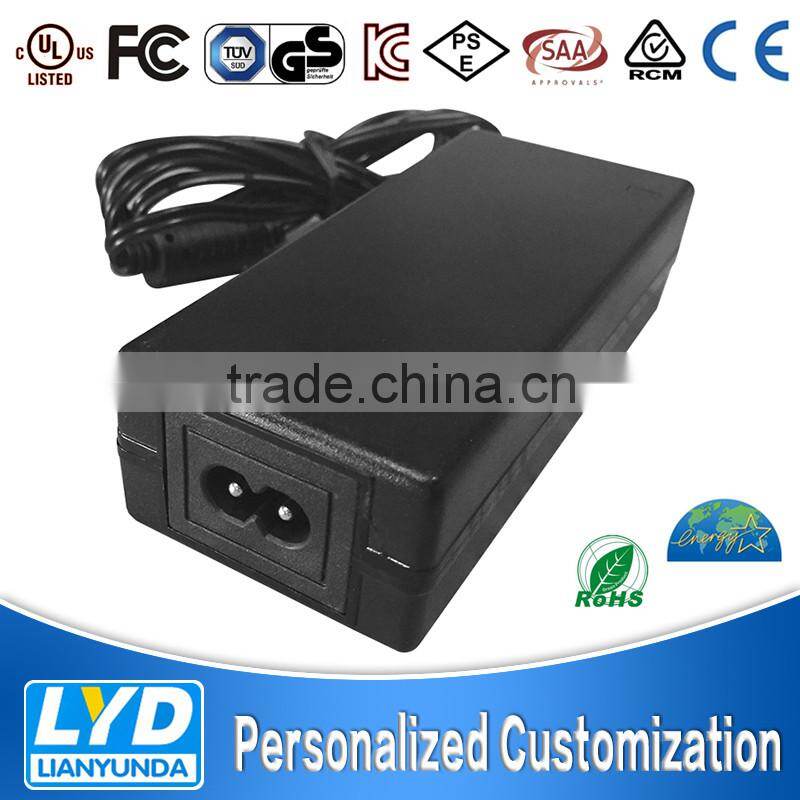

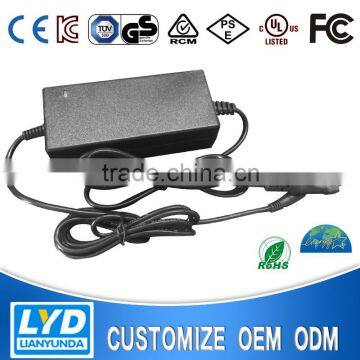

Product picture:

Output Power Range	12v 3a 3.5a 4a 5a(also have those models for selection)
Input Rated Voltage	100Vac~240Vac
Input Frequency Range	50Hz~60Hz
Input Current	less than 0.5A
Input Inrush Current	less than 50A
Efficiency	85%(MIN)at Rated Voltage
Leakage Current	less than 5mA
Standby power	less than 0.5w
Ripple and Noise	less than 120Mv at full road with 20MHz bandwidth
Turn On Delay Time	less than 3S (AC:110V and full load)
Dielectric Voltage	A IEC320 three pin input---output(FG)3000Vac one minute
Safety protection	output voltage protection (150%-180% rated output current)
	output current protection (150%-180% rated output current)
	short current protection
Operating Temperature	-10°C - +45°C
Storage Temperature	-20°C - +40°C
Safety Standard	EN61347 UL/cUL 60950-1 CLASS2 1310 ESD (EN61000 3-3)
	CAS (60950 ITE/TE) FCC Part 15 subpart B Class B
	ISO 9001: 2008
