320*160mm 64*32 3528 HUB75 1/16 scan indoor full color rgb p5 led module, smd led module, led module 24v
- 5000 Piece / Pieces per Month
- ShenZhen/HongKong
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | LIYI LED MODULE | Model Number: | 64*32 dots |
Usage: | Indoor | Tube Chip Color: | Full Color | Display Function: | Other, graphics/animation/video/time/date/temperature |
Pixels: | Other, 5mm | Screen Dimension: | 320*160mm |
Packaging Details
320*160mm 64*32 3528 HUB75 1/16 scan indoor full color rgb p5 led module, smd led module, led module 24v:
standard wooden box/carton boxes
Product Description
Factory price, good quality
Professional led module manufactuer
Skype:liyisales03
320*160mm 64*32 3528 HUB75 1/16 scan indoor full color rgb p5 led module, smd led module, led module 24v

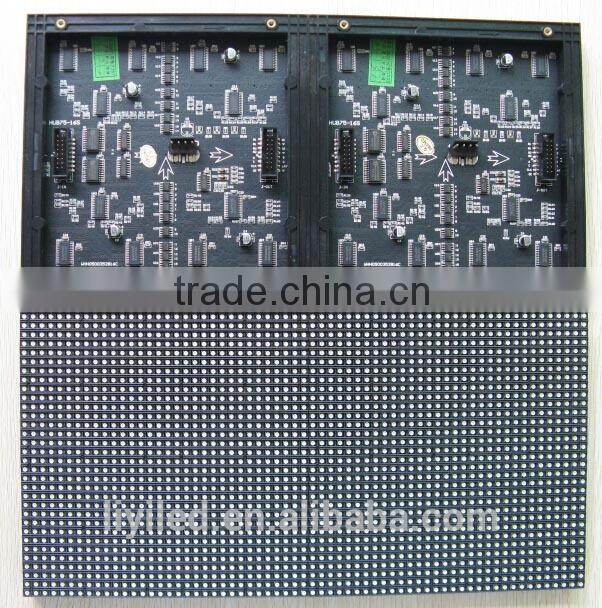

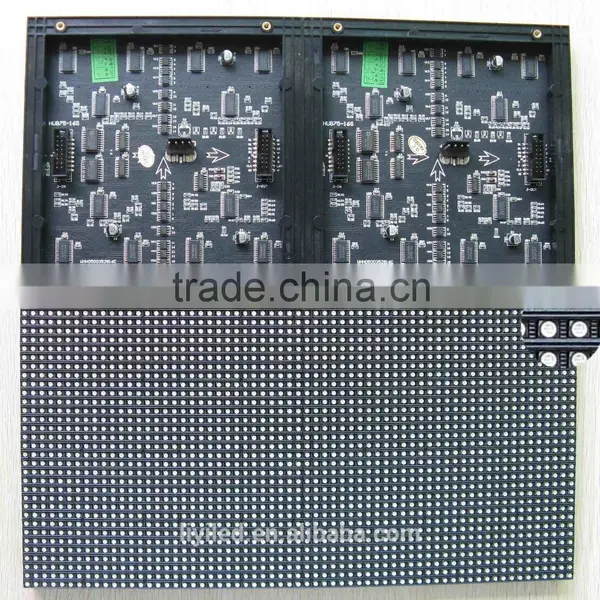

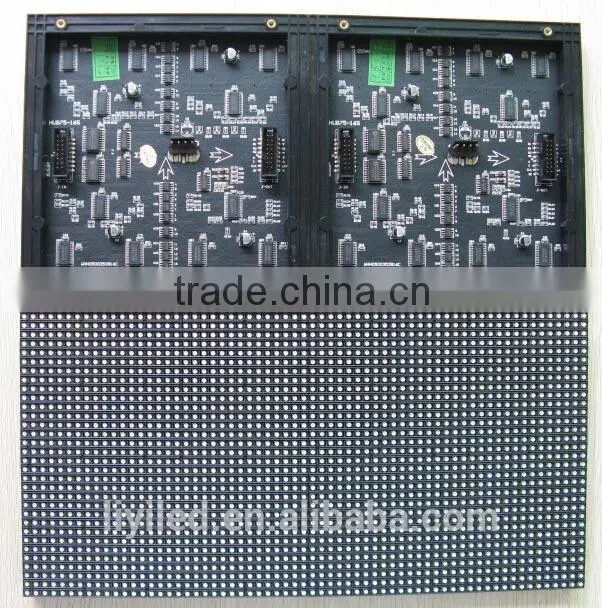

1.P5 SMD LED Module
Model:P5-ID-FC
Use:indoor
Module size:320*160mm
Pixel component:1R1G1B(SMD3528)
Resolution:64*32dots
Drive mode:1/16scan
Data inteface:HUB75
2.Features
·40000 pixel dots per square meter resolution
·With super-high brightness LED, high contrast
·High frame frequency, wider view angel
·With module development and distributed scan technology, high reliability
·Universal AC input / full range
·IP43 protection level, indoor solution
·PC synchronous or asynchronous control(optional)
·Use common video play software, easy to use
·2 years warranty
3. Technical Parameters for P3 LED Display
Item | LIYI-ID-P5SMD |
Pixel pitch | 5mm |
Pixel density | 40000 dots/m2 |
Pixel configuration | 1R1G1B(3528SMD) |
Max brightness | 1800nit |
View angle(horizontal) | ±60° |
Gray scale | 65536 (16 bit) |
Colors | 16.7M |
Color temperature | 6500K-9300K |
Refresh rate | 3000HZ |
Contrast ratio | 4000:01:00 |
Frame rate | 60HZ |
Standard cabinet size | 640×640mm |
Weight | 35KG/m2 |
Cabinet resolution | 128×128 pixels |
Cabinet material | Steel (cold rolled iron) or Aluminum (optional) |
Protection level | IP43 |
Max power consumption | 900W/m2 |
AVE. consumption | 300W/m2 |
Drive Method | 1/16 scan, constant current |
Malfunction dot rate | 0.1≤‰ |
Control mode | PC synchronous or asynchronous control(optional) |
Input voltage(AC) | AC90—240V |
Operation voltage | DC5V |
Operation temperature | -20~50℃ |
Operation humidity | 10%~90% |
MTBF | 5000h |
Life span | 100000h |
4.Control Mode
asynchronous control
synchronous control

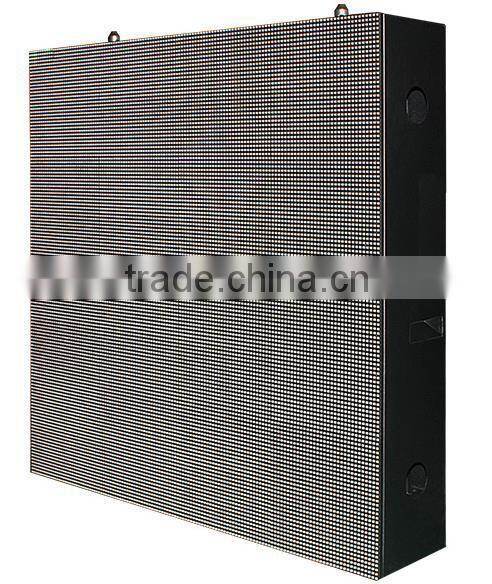

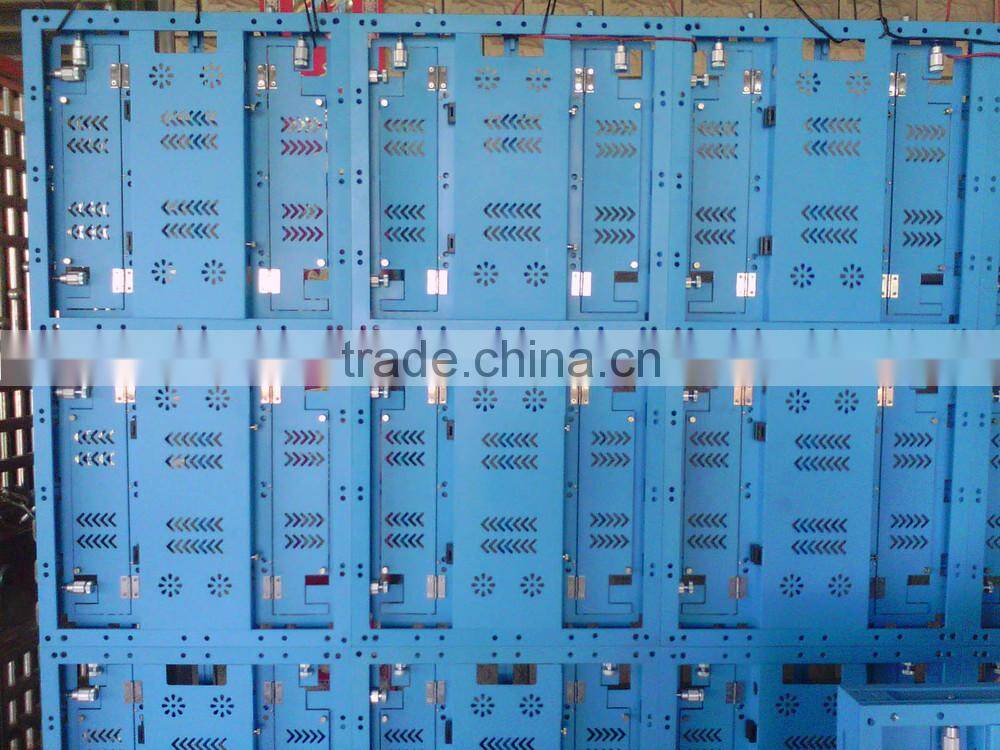

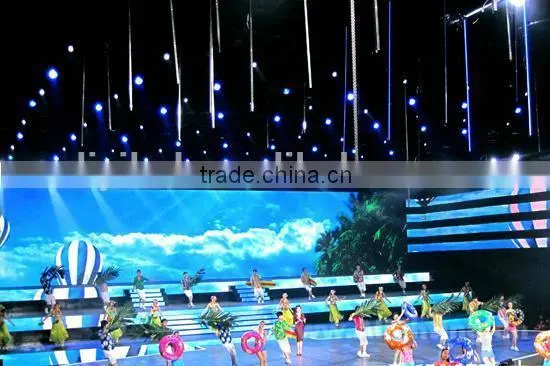

5.Cabinets and Projects
5.Other Module Types
Model | Use environment | Module size | Display color | Module Resolution | Drive mode | Data interface |
P10-OD-SC | Semi-outdoor/Outdoor | 320*160(mm) | Red/ Green/ Blue/ White/ Amber | 32*16 dots | 1/4 scan | HUB 12 |
P16-OD-SC | Outdoor | 256*256(mm) | Red/ Green/ Blue/ White/ Amber | 16*16 dots | 1/4 scan | HUB 12 |
P20-OD-SC | Outdoor | 320*160(mm) | Red/ Green/ Blue/ White/ Amber | 16*8 dots | 1/4 scan | HUB 12 |
P25-OD-SC | Outdoor | 400*200(mm) | Red/ Green/ Blue/ White/ Amber | 16*8 dots | 1/4 scan | HUB 12 |
P10-OD-TC | Semi-outdoor/Outdoor | 320*160(mm) | RG/RB/GB | 32*16 dots | 1/4 scan | HUB 08 |
P16-OD-TC | Outdoor | 256*256(mm) | RG/RB/GB | 16*16 dots | 1/4 scan | HUB 08 |
P20-OD-TC | Outdoor | 320*160(mm) | RG/RB/GB | 16*8 dots | 1/4 scan | HUB 08 |
P25-OD-TC | Outdoor | 400*200(mm) | RG/RB/GB | 16*8 dots | 1/4 scan | HUB 08 |
P6-OD-FC(SMD) | Outdoor | 192*192(mm) | 1R1G1B(3528SMD) | 32*32 | 1/4 scan | HUB 75 |
P8-OD-FC | Outdoor | 256*128(mm) | 1R1G1B | 32*16 | 1/4 scan | HUB 75 |
P10-OD-FC | Semi-outdoor/Outdoor | 160*160(mm) | RGB | 16*16 dots | 1/4 scan | HUB 75 |
P10-OD-FC | Outdoor | 320*160(mm) | RGB | 32*16 dots | 1/4 scan | HUB 75 |
P10-OD-FC | Outdoor | 320*320(mm) | RGB | 32*32 dots | 1/4 scan | HUB 75 |
P16-OD-FC | Outdoor | 256*256(mm) | RGB | 16*16 dots | 1/4 scan | HUB 75 |
P20-OD-FC | Outdoor | 320*160(mm) | RGB | 16*8 dots | static | HUB 75 |
P25-OD-FC | Outdoor | 400*200(mm) | RGB | 16*8 dots | static | HUB 75 |
P31.25-OD-FC | Outdoor | 250*250(mm) | 4R2G2B | 8*8 dots | static | HUB 75 |
6.Packing&Shipping
-small quantity, use carton boxes; big quantity,use plywood boxes.
-shipping: small quantity by EXPRESS-DHL,UPS,TNT,FEDEX; for big quantity, air shipping and sea shipping will be more suitable.
7.Our Service
1) shipping way will be confirmed by the customer: usually EXPRESS(DHL, FEDEX,TNT...) AIR shipping and sea shipping.
2) We can support you from product design, drawing, structure, technices and after-sales service to solve your question timely.
3) Accept custom design; professional R&D team design the most suitable product for you.
4) Factory production capacity guarantees your order delivery.
8.Factory Profile
SHENZHEN LIYI OPTOELECTRONIC Co., Ltd is a Chinese high-tech optoelectronics display enterprise which specializes in the research, development, production, sales, construction and service.
Specializing in LED field since 2009, we took innovation in the market and product classification and innovative products already have strong core competitiveness. LIYI Tech established strict quality control over all of LED components, LED display and the whole set of video systems, devoting to provide the most suitable indoor or outdoor display system solutions from design, manufacturing, installation and maintenance.
Main products: LED pharmacy cross, LED glasses sign, LED sign, LED display, LED taxi/bus sign, LED display accessories and LED lighting.
9.After-sale Service
-2 years warranty,if broken in warranty time,we will supply free technical support or free spare parts to prepare or replace.
-For installation and operation, any question, contact anytime via email&skype&phone call.
-Direclty remote control via team viewer.
10.Certificate
Company Profile
SHENZHEN LIYI OPTOELECTRONIC Co., Ltd is a Chinese high-tech optoelectronics display enterprise which specializes in the research, development, production, sales, construction and service.
Specializing in LED field since 2009, we took innovation in the market and product classification and innovative products already have strong core competitiveness. LIYI Tech established strict quality control over all of LED components, LED display and the whole set of video systems, devoting to provide the most suitable indoor or outdoor display system solutions from design, manufacturing, installation and maintenance.
Our products are widely used in postal, telecommunications, financial securities, electricity, transportation, schools, hospitals, supermarkets, hotels, weather, real estate, sports, stage, restaurants, entertainment, theater, municipal advertising and government departments etc., and exported to Europe, Asia, North America^, with projects across several provinces in Mainland.
Adhering to the business philosophy of "customer first, pragmatic and efficient ", we believe that technology will create the future, continually play our strengths to win the trust of users with leading technology, excellent quality, exquisite craftsmanship and sincere service to seek goodness and beauty.
Main products: LED pharmacy cross, LED indoor display, LED outdoor display, LED single color display, LED moving sign, LED two-side display, LED Banner sign, LED window screen, LED flooring advertising screen, LED display accessories and LED lighting.
Company insist in the core value of "honesty, dedication, win-win basis and transcend" to provide customers with quality service and sincerely thanks to friends' trust around the world!
