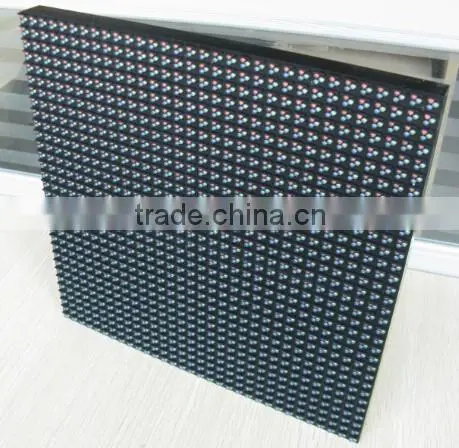

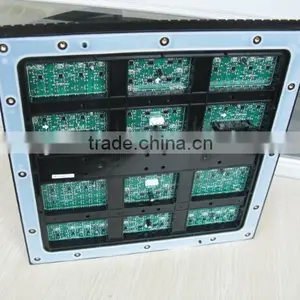

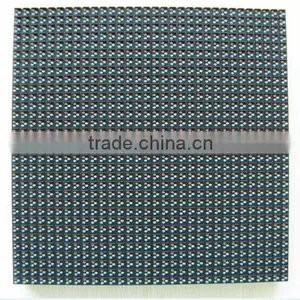

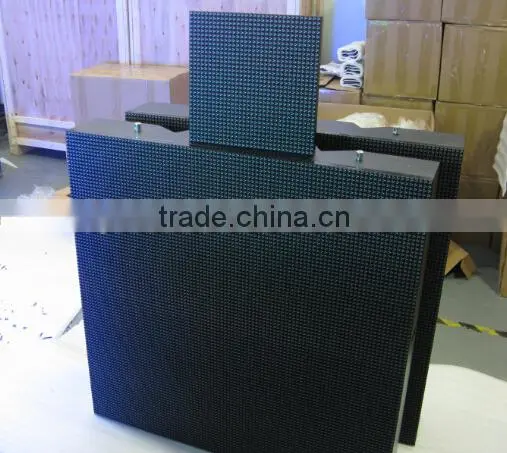

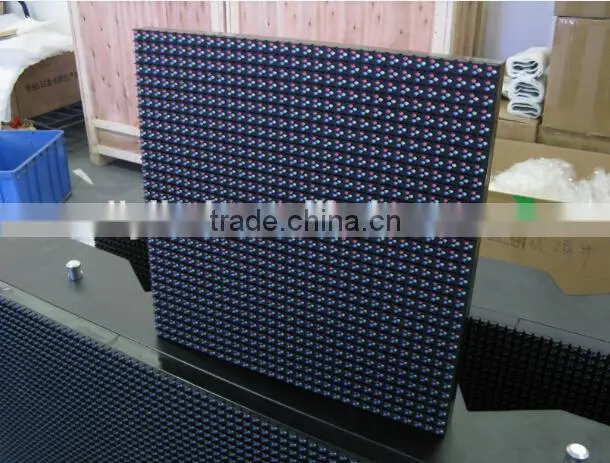

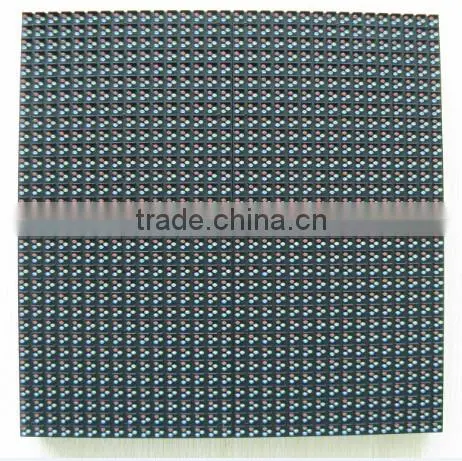

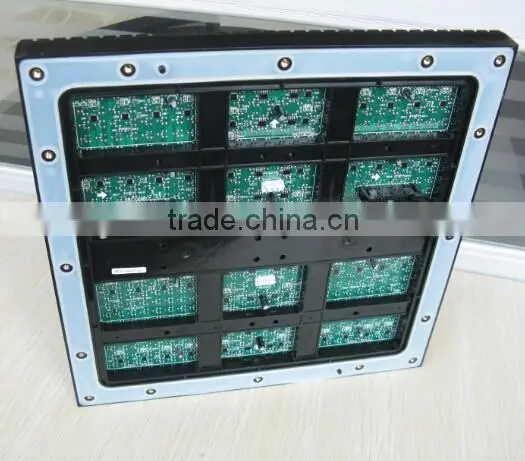

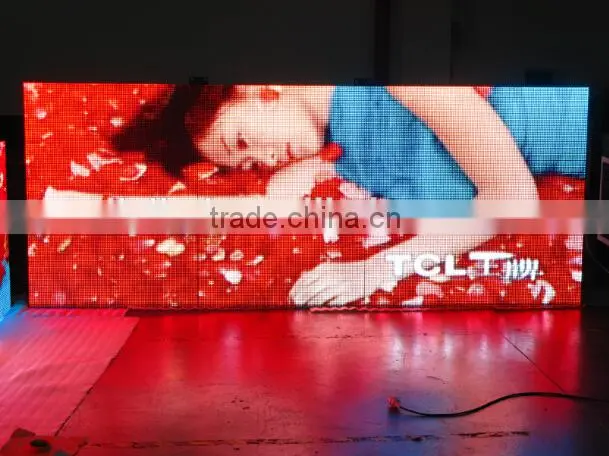

P10 Led Module 320*320 Outdoor LED Display Big Module

Name: P10 Led Module 320*320 Outdoor LED Display Big Module
Brand: LIYI
SKU: 100371563
Availability: InStock

US$ 52 - 60 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

LIYI

Model Number:

LIYI-MD-P10

Shenzhen Liyi Optoelectronic Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name LIYI

Model Number LIYI-MD-P10

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels 10mm

Screen Dimension 320*320mm

Specifications

1. High brightness 8000nits
2. Outdoor waterproof IP65
3. Good flatness
4. Guarantee 2 years
5. big module,Easy to install

Our company is focused LED pharmacy Cross and LED display, more than 100 kinds and Some products in stock.

If you are interested in, pls contact me.

Skype:mumian755

Technical parameter
Unit board	Pixel pitch	10mm
	Module size	320mm*320mm
	Resolution of module	32*32dots
	Density of pixel	10000dots/m2
	Pixel configuration	LED346 1R1G1B
Main Technical parameter	Red wavelength	620nm
	Green wavelength	520nm
	Blue wavelength	470nm
	Colors	16777216
	Best viewing distance	10-100m
	Horizontal/Vertical Viewing angle	120 degree/60 degree
	Gray scale	16bits per color
	Color temperature	6500k
	Brightness	More than 7000cd/sqm
	IP grade	Front :IP65
	Frame frequency	60HZ
	Refresh frequency	≥1000HZ
	Control method	Synchronization/Asynchronization
	Drive method	1/4 Scan
	Temperature	Storage:-30°C-+85°C
	Temperature	Working:-20°C-+65°C
	Operating ambient humidity	10%—95%RH
	Earth leakage current	< 2mA
	Defects rate.	≤0.00001(Led display line standard<0.0001)
	Flatness	Tolerance of interpixel ≤0.3mm
	Flatness	Tolerance of modules clearance ≤0.6mm
	MTBF	More than 10,000 hours
	Life span	More than 100,000hours
Power	Operating voltage	AC110V/220V±10%
	Maximum/Average power consumption	800/350w/m2
	Current	≤20mA(single LED)
	Power switch	Automatic switch
Control system	CPU	Pentium4 or above
	Signal Input	Composite ,S-video,Component,VGA,DVI,HDMI,SDI,HD_SDI,etc
	Controlling system	main controller card+optical fiber transmission
	Control method	Asynchronization
	Systems operating platforms	WinXP,Win2000,Vista, Win7, Win8 etc.
Softer ware	LED media player
