Help CenterDual Sim and RJ45 4g Wifi Router
US$ 65 - 70
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
Wireless
Application:
Soho
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pocket Wifi 4g Lte Router With Sim Card SlotUS$ 54 - 58MOQ: 100 Pieces -
Unlocked 4g Lte RouterUS$ 54 - 60MOQ: 100 Pieces
-
4g Wireless Router With Sim Card SlotUS$ 55 - 68MOQ: 50 Pieces
-
Unlocked 4g Lte Wireless RouterUS$ 54 - 60MOQ: 100 Pieces
-
RJ45 and Power Bank Dual Sim 4g Lte RouterUS$ 68 - 78MOQ: 100 Pieces
Products Status
Stock
Type
Wireless
Application
Soho
Function
Other, dual SIM and RJ45
LAN Ports
Other, 0 for 4g router
WAN Ports
1
Certification
Rohs
Brand Name
OEM
Model Number
LR511A
Place of Origin
Guangdong, China
Specifications
dual sim and RJ45 4g wifi router
| ITEM | Specificatios | |
| product modality | Appearance | |
| Size | 96.0*59.0*14mm | |
| Weight | 160g | |
| Technical specification | TD-LTE | 3GPP/3GPP2 Release9,Category 3,up to 68M DL and 17M bps UL@20MHz bandwidth |
| FDD LTE | 3GPP/3GPP2 Release9,Category3,up to 100M DL and 50M bps UL@20MHz bandwidth | |
| TD-HSPA+ | 3GPP/3GPP2 Release7,up to 4.2Mbps DL and 2.2Mbps UL | |
| DC-HPSA+ | 3GPP/3GPP2 Release8, up to 42Mbps ,category 24,5.76M bps UL | |
| HPSA+ | 3GPP/3GPP2 Release7, up to 14.4Mbps ,category 10,5.76M bps UL | |
| HSPA | 3GPP/3GPP2 Release6, up to 7.2M bps DL,category 7/8,5.76M bps UL | |
| UMTS | 3GPP Release4, up to 384 Kbps DL and UL | |
| EDGE | 3GPP Release4, Multislot class 12, up to 237 Kbps | |
| GPRS | 3GPP Release4, Multislot class 10, up to 85.6Kbps | |
| Frequency | TD-LTE | Band38 (2570-2620MHz) / Band39 (1880-1920MHz) / Band40 (2300-2400MHz)/B41(2496-2690MHz) |
| FDD LTE | B1(1920-1980MHz,2110-2170MHz) / B3(1710-1785MHz,1805-1880MHz) / B7(2500-2570MHz,2620-2690MHz) | |
| TD-SCDMA | Band34 (2010-2025MHz) / Band39 (1880-1920MHz) | |
| UMTS | B1(2100MHz) / B2(1900MHZ) / B5(850MHZ) / B8(900MHz) | |
| GSM | B2(1900MHz) / B3(1800MHz) / B5(850MHz) / B8(900MHz) | |
| DL/UL Ratio of time slot | 2:2 | Support |
| 3:1 | Support | |
| Bandwidth | TD-LTE | Support 5MHz/10MHz/15MHz/20MHz |
| FDD LTE | Support 5MHz/10MHz/15MHz/20MHz | |
| Power | TD-LTE | Power Class 3 |
| FDD LTE | Power Class 3 | |
| WCDMA | Power Class 3 | |
| TD-SCDMA | ||
| GPRS 850/900MHz | Power Class 4 | |
| GPRS 1800/1900MHz | Power Class 1 | |
| EDGE 850/900MHz | Power Class E2 | |
| EDGE 1800/1900MHz | Power Class E2 | |
| Antenna | 3G/LTE main Antenna | built-in |
| 3G/LTE from the Antenna | built-in | |
| WIFI main Antenna | built-in | |
| WIFI from the Antenna | built-in | |
| Frequency switching | TD-LTE System with frequency and across the spectrum of different frequency switching | Support |
| Upstream MIMO transfer mode requirement | Support single antenna port(The antenna ports0)transmission | |
| Downstream MIMO transfer mode requirement | Support single antenna to send(mode1)/Downward 2 antenna transmit diversity(mode 2)/Downward 2 open loop antenna spatial reuse(mode 3)/(mode 4)/The downward flow single beam informs(mode 7)/ | |
| The interoperability requirements | Choose roaming network from TD-LTE to FDD LTE | Support |
| viewing screen | TFT-LCD viewing screen | Colorful 1.44',resolution ratio 128*128, |
| Function keys | Power key | Support |
| Reset button | Support | |
| WIFI Switch button | Support | |
| WPS Shortcut keys | Support | |
| External interface | mirco-USB | Support,USB2.0HS, Using for surfing,charging,download and so on |
| SIM/USIM Card Slot | Support 6PIN,accord with 3GPP 31.101 and 31.102 standard | |
| TFlash Card Slot | Support | |
| 3G/LTE main Antenna interface | N/A | |
| 3G/LTE from the Antenna interface | N/A | |
| Hardware platform | ROM+RAM | 2Gbit + 1Gbit |
| AP+BB | MDM9215 | |
| RF | WTR1605L | |
| PMIC | PM8018 | |
| WIFI | AR6003G | |
Detailed Images

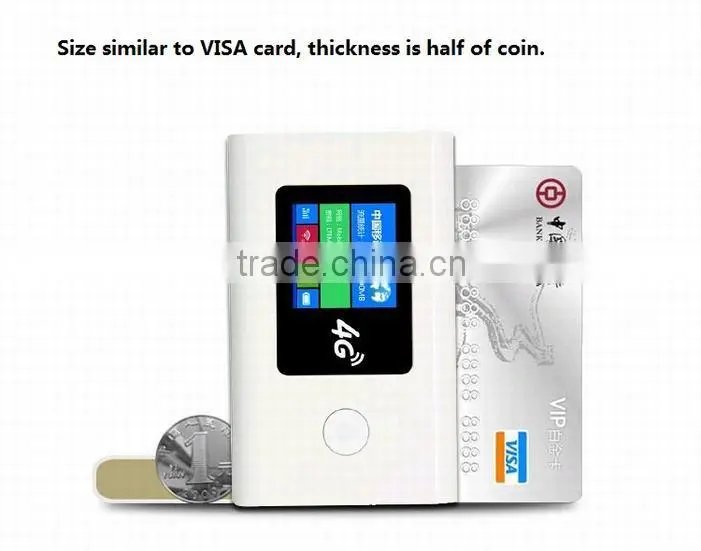

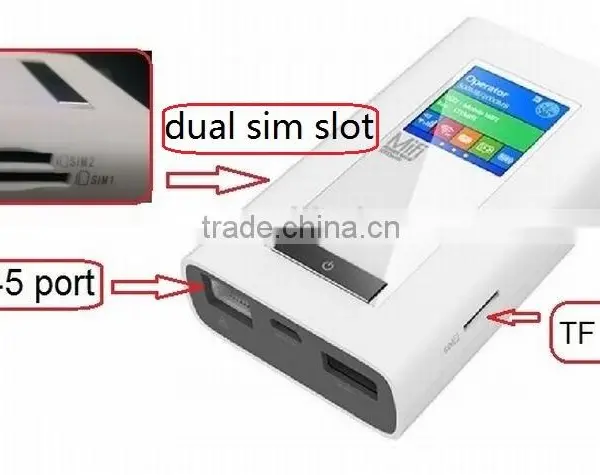

dual sim and RJ45 4g wifi router
Packaging & Shipping
Company Information
We are professional supplier in selling 3g modem and 3g/4g router with high quaity & very competitive price since 2008 in China. ODM or OEM accept.
Recommended slim 4g LTE router without RJ45,
