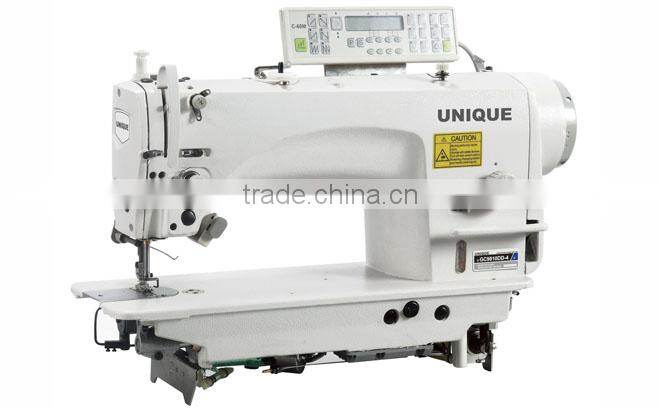

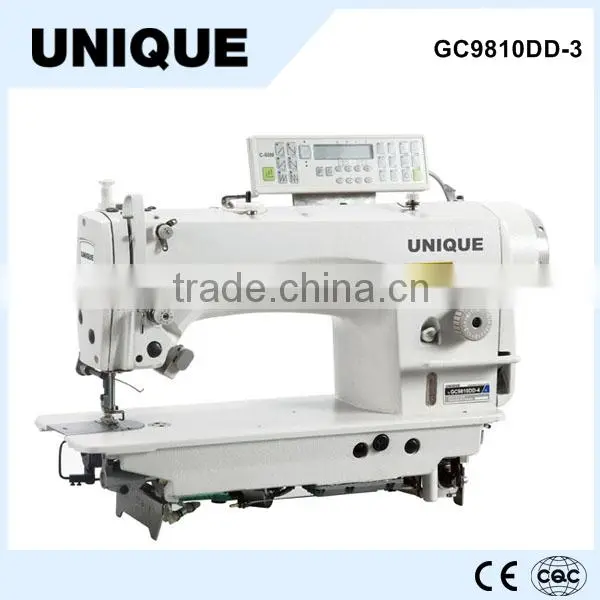

1-needle needle-feed lockstitch industrial sewing machine jack GC9810DD-3
GC9810DD-4 Automatic foot-lifter
GC9810DD-3 lifting foot by knee
Specification:
| Model name | GC9810DD-3 |
| Application | Light to medium heavy materal |
| Max. sewing speed | 5,500 sti/min |
| Max. stitch length | 5 mm |
| Lift of the pressor foot | By hand: 5.5 mm; by knee: 13 mm |
| Needle type | DBX1 |
| Lubrication | Automatic |
| N.W./G.W. | 38 kgs |
| Measurement | 0.088 cbm |
Wide range of application:
Suitable for sewing high class garment like suits.
The machine head has been redesigned to improve the performance of each component. Thanks to the machine’s low tension sewing capability and the adjustment function for the needle feed amount ( 15%), uneven material feeding and puckering rarely occur, thus enhancing the machine’s ability to respond to any change in the material to be sewn.

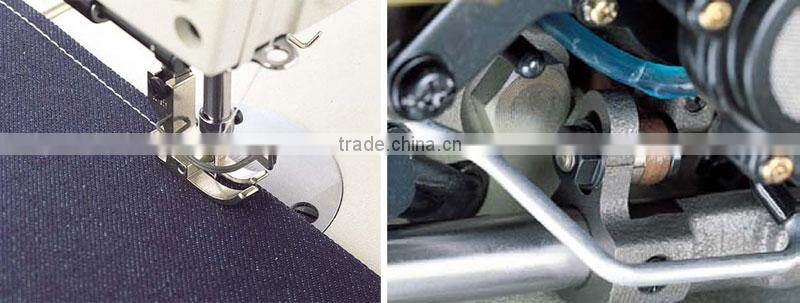

Sewing mechanism that demonstrates outstanding responsiveness to materials to be sewn
The thread take-up mechanism, feed mechanism, thread paths an hook have been further improved to enhance dresponsiveness to material changes and to ensure consistent stitch quality.
The machine has easy to operate functions to achieve improved operability
By providing a presser foot with a higher lift(13mm), a light touch stitch dial, a throat plate with marker grooves that can be used as guide for seam allowance, and other easy-to-operate functions, the burden on the operator is lightened, and productivity is further increased.
