YARMEE YC834 Digital Video Conference System Meeting Room Sound System
YARMEE YC834 digital video conference system meeting room sound system

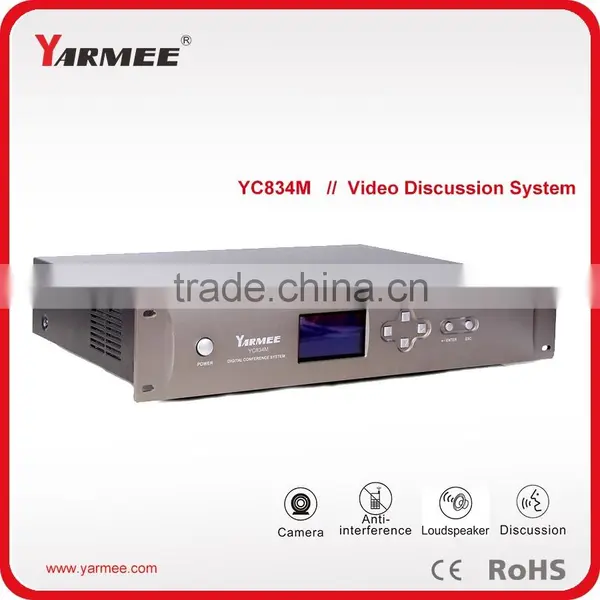

YC834M Main Controller
l Mix discussion, camera tracking
l Teleconferencing is allowed with telephone coincidence
l Built in frequency shifting, restraining screaming
l The rack hole: fixed the main machine in the 19''standard rack
l Supports automatic camera tracking
l Tracking blackout remembering function, still tracking even breaking away from a computer
l The main machine has 4 route can connect 80 units, through extend power machine can connect 2000 units
l The computer and controlling the keyboard could bring about the function of automatic tracking video
l It has LCD display screen menu of Chinese and English. Bring about the control of the meeting function with the function-key
l Support Meeting Mode: Limit (1/2/3/4/5/6), FIFO (1/2/3/4/5/6), Chairman Only, AUTO
Specification:
NAME |
YC834M Main Machine |
input/output |
8P-DIN×4 XLRM×1 RCA×1 6.35mm×1 |
input |
RCA×1 |
power supply |
AC220V-50HZ |
current drain |
120W(MAX) |
frequency response |
100-14KHZ |
weight |
8.5kg |
(W,D,H)dimension |
480×325×88mm |
color |
Dark gray |
YC834C/D Chairman/Delegate Unit
l Match with 2.1M connection cable
l With two microphone input design (adding the lapel microphone hub )
l Built-in speaker, earphone jack and volume adjusting knob
l Anti-interference from mobile phone
l Chairman unit with priority speaking, can shut off each delegate speaking unit
l Chairman can shut down all delegates, and chairmen do not be limited by main machine
l Uni-direction condenser microphone: goose neck microphone with red ring indicator LED
l Open the microphone automatically mute speakers with headphone jack and volume control knob
YC834C/D specification:
NAME |
YC834C/D MIC UNIT |
input/output |
8P-DIN×1(2M) |
input |
Condenser Microphone |
power supply |
DC24V(Supplied by the host) |
current drain |
40mA |
sensitivity |
-47db |
s/n |
65db |
frequency response |
100-10KHZ |
weight |
1.1kg |
(W,D,H)dimension |
190×130×56mm |
colors |
Silver/Gray Black |
installation |
Desktop |
Length of gooseneck |
400mm (Activity) |
