New type bottle pure water filling machine
- 20 Set / Sets per Month
- Shanghai
- T/T
-
Cheapest Automatic Bottle Blowing Machine Prices/factory price automatic bottle shrink wrapping machine
-
PET bottle making machine/nice plastic bottle making machine price/high quality plastic bottle blowing machine
-
Top quality china automatic machines to make plastic bottles/bottle blowing machinery/Pet Bottles Blowing Machine 750ml
-
Chinese PET water bottle blowing machine/equipment / automatic bottle Blowing machinery
-
Low price Beverage drinking PET bottle blowing machinery/fully automatic pet bottle blowing machine
-
high quality bottle blowing machine/automatic shrink wrapping machine/water bottle blowing machine
Product Details
| Condition: | New | Application: | Beverage | Packaging Type: | Bottles, Cans, Cartons |
| Packaging Material: | Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 380V 50Hz or by order | Power: | 5-18kw | Place of Origin: | Jiangsu, China |
| Brand Name: | XINMAO | Model Number: | CGF | Dimension(L*W*H): | up to the capacity |
| Weight: | 2800-15000kg | Certification: | CE and ISO 9001:2000 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
New type bottle pure water filling machine
Products Introduction

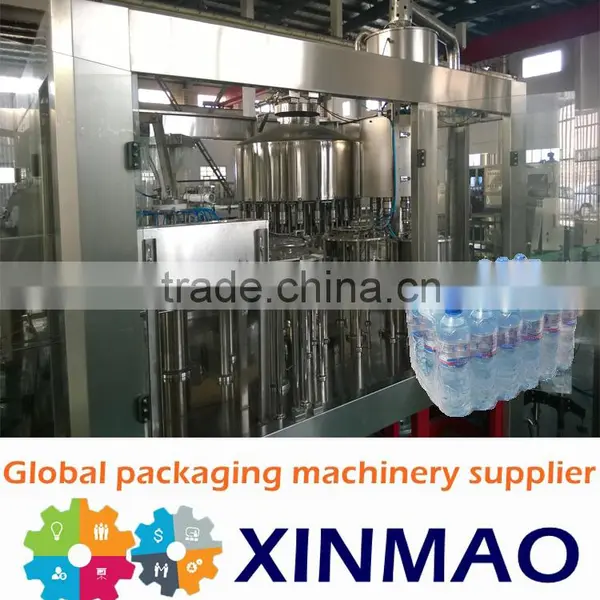

This machine has washing,filling,capping three functions in one body, it is automatic in total process and it is suitable for pure water,mineral water,juice,tea drink and other non-gas containing drink filling. It is make of high quality SUS304. Main parts are processed precisely by CNC tool. The total machine uses advanced photoelectric detection technology to detect each parts operation status.
Characteristics
1. Using the wind sent access, with clamp hanging the bottle neck; which can keep the bottle shape and high-speed.
2. Bottles transmission adopts clip bottleneck technology, clean and fast.
3. Filling uses liquid cylinder feeding structure, filling valve uses new normal pressure filling, ensure the filling correct and stable,
4. Spiraling decline when output bottle, transform bottle no need to adjust the height of conveyor chains. Cap automatically.
5. Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Technical parameters
| Model | Washing heads | Filling heads | Capping heads | Capacity(b/h) 500ml | Motor power (kw) | Overall dimension (mm) | Weight (kg) |
| CGF14-12-5 | 14 | 12 | 5 | 3000-4000 | 5 | 2180*1560*2300 | 2800 |
| CGF18-18-6 | 18 | 18 | 6 | 5000-6000 | 5 | 2250*1670*2300 | 3500 |
| CGF24-24-8 | 24 | 24 | 8 | 8000-12000 | 6 | 2800*1800*2300 | 4500 |
| CGF32-32-10 | 32 | 32 | 10 | 12000-15000 | 8 | 4300*3500*2300 | 5500 |
| CGF40-40-12 | 40 | 40 | 12 | 15000-18000 | 12 | 4600*3800*2300 | 6500 |
| CGF50-50-12 | 50 | 50 | 12 | 18000-22000 | 15 | 5000*4200*2300 | 7500 |
| CGF60-60-15 | 60 | 60 | 15 | 20000-25000 | 18 | 5500*4500*2300 | 9500 |
The flow chart
Washing Part
Filling Part

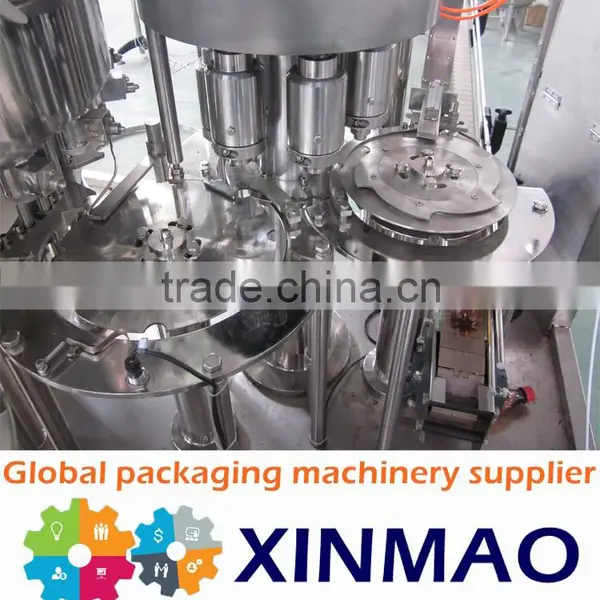

Capping part
Our factory
Packing
Our spare parts supplier
Our certification
choose us
Expericed in beverage filling machine more than 15 years
Free technical support&consultation
Professional & fast after service team
Delivery in time
Contact
Any question about this machine or the production line,please contact with us.
Xinmao staff are glad to be at your service.
Contact Us
- Zhangjiagang City Xinmao Drink Machinery Co., Ltd.
- Contact nameJudy zhu
- Phone86-512-58535869
- AddressRenmin South Road, Jinfeng Town, Zhangjiagang
-
