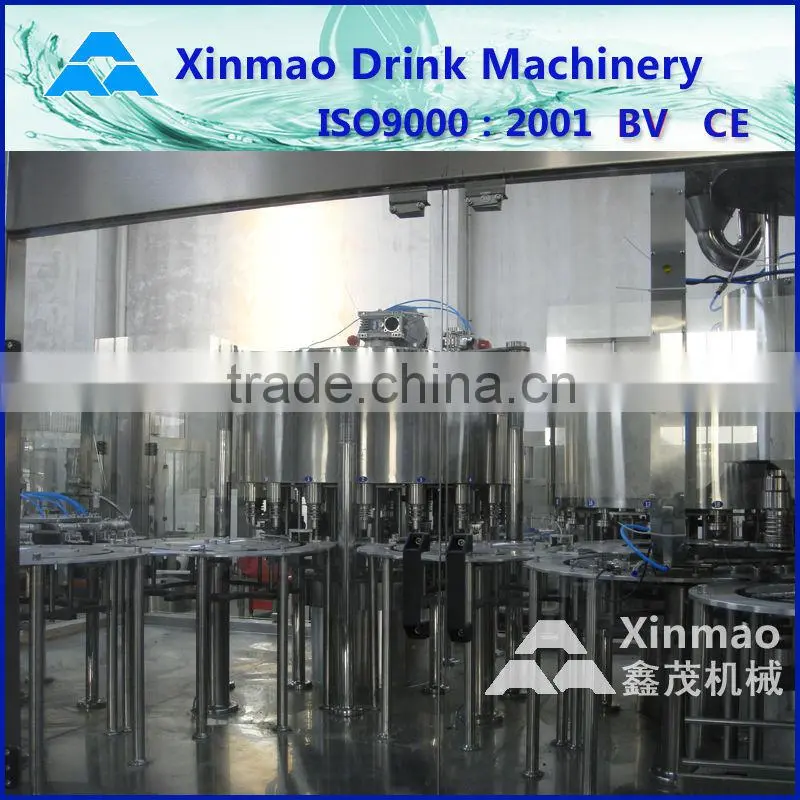

Automatic fruit pulp juice making machine , noncarbonated juice filling,washing,filling and capping three in one unit
Detailed Product Description

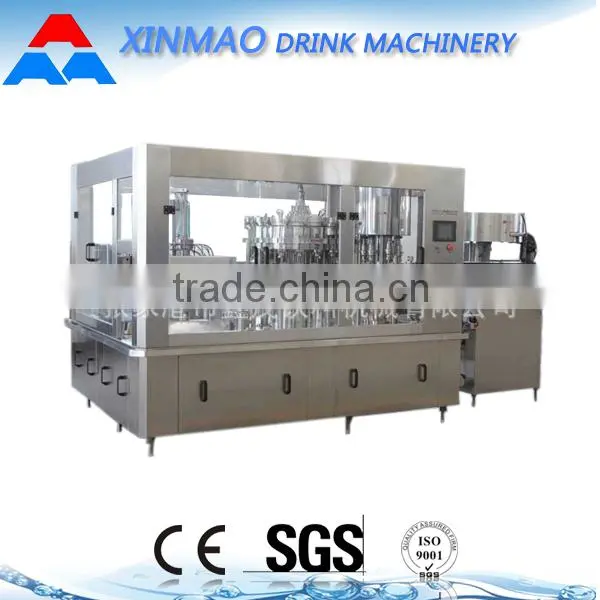

This machine has washing ,grain filling,juice filling ,capping four functions in one body. It is automatic in total process and suitable for PET bottled juice drink which has pulp particle inside.
Grain filling is quantitative by new measuring cup; ensure every bottle of drink is uniformity. This machine makes by high quality SUS304, key parts are precision machined by NC tool.
The total machine uses advanced photoelectric detection technology to detect each part’s operation status, no bottle no filling, and no bottle no capping, automatic and easy operation.
Main features of the equipments:
1)Using the wind sent access, with clamp hanging the bottle neck ; which can keep the bottle shape and high-speed.
2Washing bottle mouth with special designed washing manipulator,clip in the bottle neck, stable and avoid secondary pollution.
3)Grain filling uses measuring cup to quantify, ensure grain uniformity.
4)Capping adopts French advanced technology, cap sorter install in a lower position, send cap in level position.
5Host adopts advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Technical data | ||||
Model |
CGF14125 |
CGF18186 |
CGF24248 |
CGF323210 |
Number of washing, filling, capping |
14-12-4 |
18-18-6 |
24-24-8 |
32-32-8 |
Capacity; |
3000-4000 |
5000-7000 |
8000-12000 |
12000-15000 |
Suitable bottle size (mm) |
φ=50-108 H=170-340 330ml-2.25L |
|||
Pressure (kg/cm2) |
2~3 |
|||
Power (kw) |
Total motor 4.5kw |
Tota motor 4.5kw |
Tota motor 6kw |
Tota motor 8kw |
Overall size (mm) |
2100x1400x2500 |
2460x1720x2650 |
3100x2100x2650 |
3500x2500x2650 |
Weight(kg) |
2500 |
3500 |
4200 |
5500 |
Washing part
Filling juice and pulp part
Capping part
Our factory and finished workshop
Working
Packing
Our customer factory
