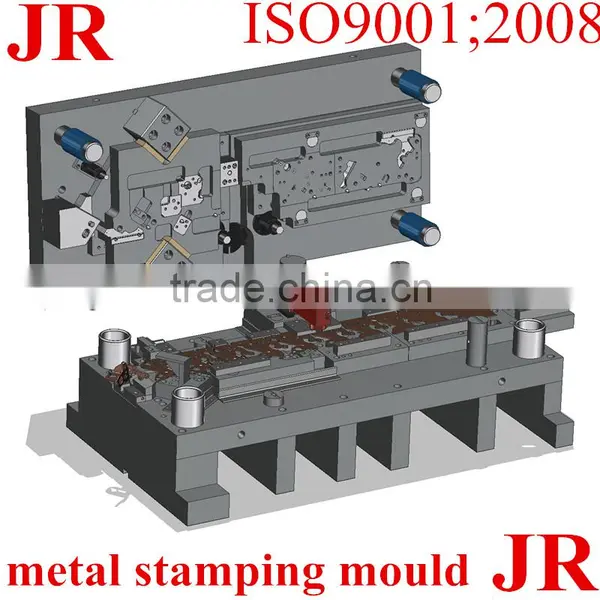

copper deeep drawing tool/mould/die
| Place of Origin | Guangdong, China (Mainland) |
| Brand Name | JR |
| Model Number | jr2130 |
| Size | according to need |
| Type | metal stamping parts |
| type2 | custom parts |
| material | metal |
| surface treatment | according to need |
| tolerance | accoding to custmer's drawing |
| quality guarantee | 2D and 3D test equipment |
| certificate | ISO9001:2008. |
| After-sales Service Provided | guarantee replacement |
| price | large order can get discount |
| type | OEM and other |
Deep drawing
Deep drawing is a metal forming operation performed on sheet metal, by pinning down the edges of the sheet metal blank and then forcing the middle section into a die by using a punch. This action forces the center of the blank to stretch and to take the shape of the punch and corresponding die, forming a drawn part. A drawn part is considered to be deep drawn, when the depth of the part exceeds the smallest dimension of the opening. These deep drawn parts can be rectangular, square, circular, or any cross section desired. Deep drawn parts are used in various industries and applications, including utensils, aircraft components, and automotive body parts.

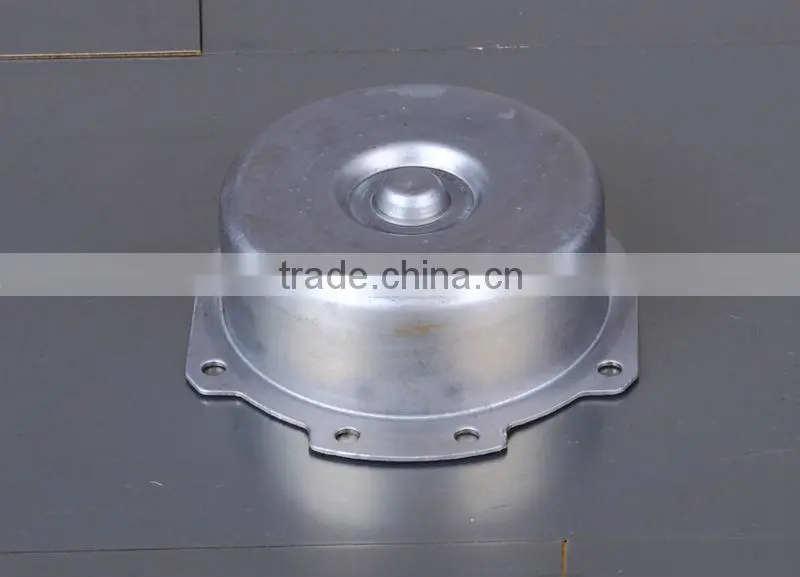

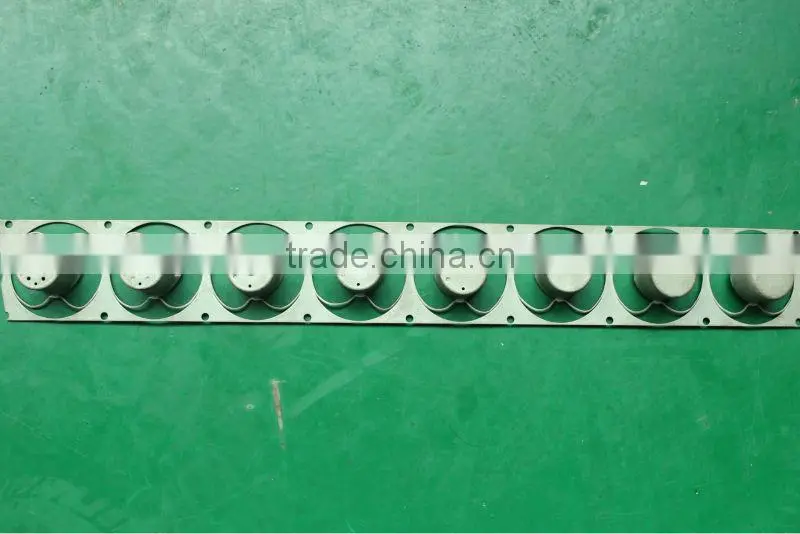

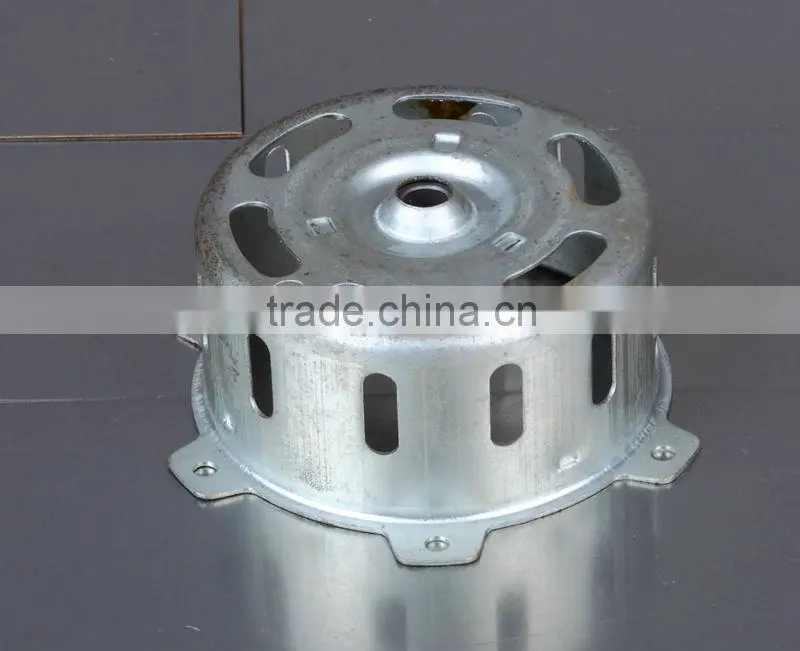

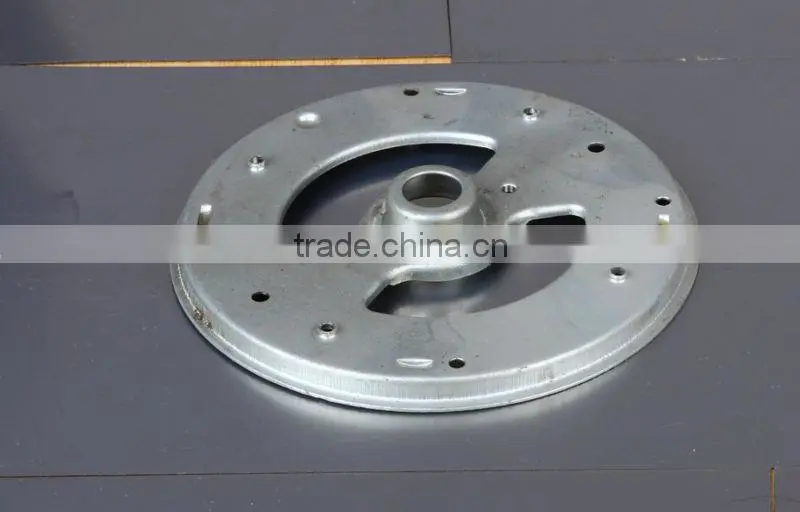

JR deep drawing part
World Class Deep Drawn Metal Stampings
Shenzhen jiarun precision stamping mould CO,LTD specializes in producing world class deep drawn metal stampings, progressive die stampings, and value added assembly solutions.
Our engineers focus on providing Value Added and Value Engineering (VA/VE) solutions for our metal stampings customers. We are often able to convert more expensive screw machine, die cast, and powdered metal processes to a more cost effective deep draw metal stamping, progressive die stamping, or a combination. In many projects we can combine parts into a single deep drawn part, increasing part strength and reducing cost and labor.
At JR metal stamping , we utilize our deep draw capabilities to serve the automotive industry in braking, oxygen sensor, fuel delivery, air bag, bayonet socket, and sensor markets. Our non-automotive deep draw metal stamping capabilities serve the lock hardware, compressor, appliance, fire prevention, medical, pharmaceutical, and plumbing markets.
Deep Draw Capabilities
At JR metal stamping we have over 14 years of experience in deep drawn stamping. Making use of the latest equipment and tooling technology, our experience and capabilities in deep drawn stampings is unmatched in the industry.
Our areas of expertise include:
Deep drawn metal stampings
Aluminum stamping
Stainless steel stamping
Copper stamping
Progressive die stamping
Deep Draw Metal Stampings
JR metal stamping is a world class manufacturer of deep draw metal stampings. We utilize our state of the art capabilities of producing deep drawn metal stampings to serve countless industries, producing deep drawn parts for the automotive, lock hardware, compressor, appliance, fire prevention, pharmaceutical, HVAC, plumbing markets, and more.
With over 14 years’ experience and production facilities around the globe, Trans-Matic is the world’s leading provider of custom deep drawn metal stampings.
Advantages of Deep Drawn Parts
The deep drawn metal stamping process gives deep drawn parts numerous advantages over traditionally machined, cast, or molded parts. Deep drawn stamping can reduce costs, reduce waste, lower assembly costs and time, and improve metal structure to produce a stronger finished part.
Deep drawn metal parts provide a net shape that minimizes waste. This means your part uses the minimum amount of metal required to deep draw the part, and you aren’t wasting money on metal that’s tossed in the scrap bin.
At JR metal stamping , we are often able to engineer our deep drawn stampings in a way that combines several parts into a single high quality, custom engineered deep drawn metal stamping. In addition to increasing the strength and performance of the part by work hardening, the deep drawn metal stamping process also reduces assembly time and cost by producing a press complete component.
Processes deep drawn metal stamping can replace:
Machining
Screw machining
Cold heating
Die casting
Investment casting
Metal injection molding
Metals Used in Deep Drawn Stampings
JR metal stamping’s decades of deep draw stamping expertise and state of the art facilities allow us to produce custom deep drawn stampings in nearly any common deep drawn metal type, and the capability and experience to work with less common grades to fit your deep drawn part’s specific needs as well.
Among the common metals JR metal stamping works with in the deep drawn stamping process are:
Stainless steel
Low carbon steel
Aluminum
Copper
Brass
Bronze
Inconel
Deep Drawn Stampings Design Assistance
Our engineers are experts at the deep draw stamping design process. Making use of state-of-the-art metal forming simulation software and decades of experience, we can show you how a deep drawn metal stamping can be used to efficiently produce your part. Our engineers have worked on hundreds of deep drawn stamping projects. From combining multiple component parts and processes into a single deep drawn stamping to reverse engineering existing parts, our skilled staff is here to help.
Whether you have a completed drawing ready for production or just a napkin sketch, we can help you to get a manufacturable deep drawn metal stamping part at the lowest cost and still meet the most exacting specifications.
The characteristics, benefits and challenges listed above should be considered from the perspective of a stamping company. To assure you match the right grade for your application please consult a metallurgist or conduct your own research before choosing a grade of steel.
