rofessional full functions conference system with video tracking function YARMEE Voting conference system YC845

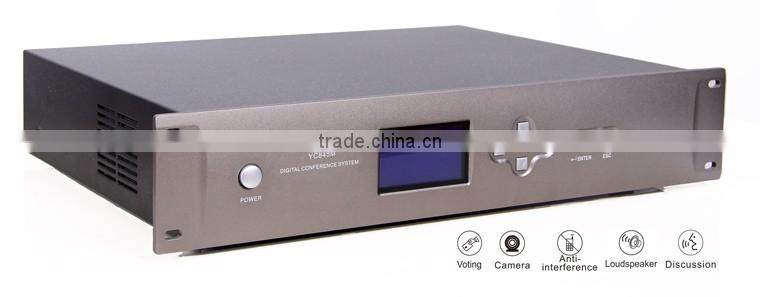

YC845 Full Funtions Conference System with Voting Function
Overviews
As the multiple-conference is more and more popular, the requesting of the meeting equipments are higher for the multi-functional meeting room, it needs the function of video camera auto-track, voting, electing and interpretation in lots of the discussion meeting situations. Our company developed the multi-functional meeting control system on the base of summarizing the experience of multiple-conference and speaking system for many years.
This conference system was designed by the latest digital technology in accordance with IEC914 and ISO standards. It's a high effective multi-functional meeting system for a meeting or conference, and it's easy to set-up, debug and use without training.
Features
- Mix discussion, camera tracking and voting functions together
- Teleconferencing is allowed with telephone coincidence
- Built in frequency shifting, restraining screaming
- The rack hole: fixed the main machine in the 19'' standard rack
- Supports automatic camera tracking
- Tracking blackout remembering function, still tracking even breaking away from a computer
- The main machine has 4 route can connect 80 units, through extend power machine can connect 2000 units
- Seceding the computer and controlling the keyboard could bring about the function of automatic tracking video
- It has LCD display screen menu of Chinese and English. Bring about the control of the meeting function with the function-key
- Support Meeting Mode: Limit (1/2/3/4/5/6), FIFO (1/2/3/4/5/6), Chairman Only,AUTO
| Input/output | 8P-DIN*4 XLRM*1 RCA*1 6.35mm*1 |
| Input | RCA*1 |
| Power supply | AC220V-50HZ |
| Current drain | 120W(MAX) |
| Frequency response | 100-14KHZ |
| Weight | 8.5kg |
| Dimension(W,D,H) | 480×325×88mm |
| Colour | Dark gray |

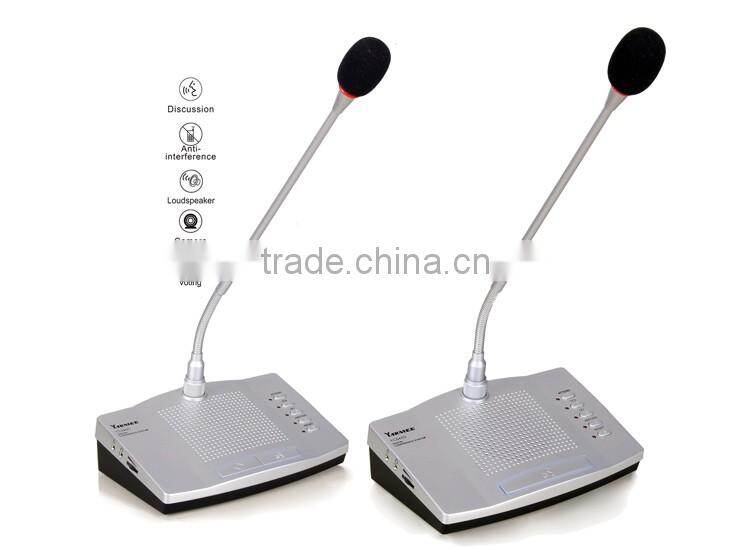

YC845C Chairman Microphone (Discussion, camera tracking and voting functions together)
Features
- Match with 2.1M connection cable
- Anti-interference from mobile phone
- With 5 buttons Voting:1: “ATTEND” 2:“ YES” 3:“NO” 4:“ABSTAIN” 5:“RESET”
- With two microphone input design (adding the lapel microphone hub)
- Built-in speaker, earphone jack and volume adjusting knob
- Chairman unit with priority speaking, can shut off each representative speaking unit
- Chairman can shut down all delegates, and chairmen do not be limited by main machine
- Uni-direction condenser microphone: goose neck microphone with red ring indicator LED
Specifications
| NAME | YC845C/D MIC UNIT |
| input/output | 8P-DIN×1(2M) |
| input | Condenser Microphone |
| power supply | DC24V(Supplied by the host) |
| current drain | 40mA |
| sensitivity | -47Db |
| S/N | 65Db |
| frequency response | 100-10KHZ |
| weight | 1.1kg |
| dimension(W,D,H) | 190×130×56mm |
| colors | Silver/Gray Black |
| installation | Desktop |
| MIC Stem Length | 400mm (Activity) |
YC845D Delegate Microphone (Discussion, camera tracking and voting functions together)

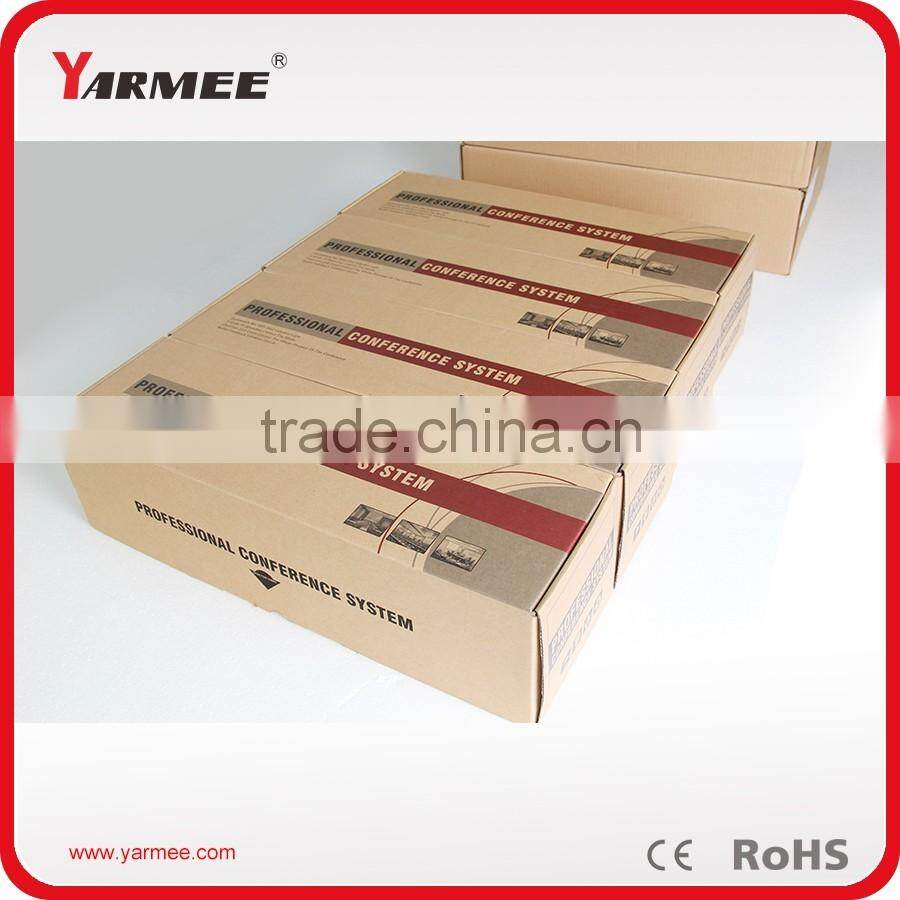

Packing
About Us
YARMEE ELECTRONIC TECHNOLOGY CO., LIMITED mainly engaged in conference system & microphone which collects together research and development (R&D), production and sale. Professional enterprise of the series of Microphones, various types of microphone.
Main products are: simultaneous interpretation, Wireless Microphones, Conference Microphones, gooseneck microphones, wired microphones, and drum microphones, UHF wireless microphones,teaching microphones, recording microphones,and microphone accessories, we will do greater efforts to develop new products, expand the product line.
Our Factory
YARMEE has a standard workshop more than 2000 meters, is located in Yuewang Building, Baiyun District,Guangzhou, Guangdong. With offices and manufacturing facilities, transportation is convenient!
