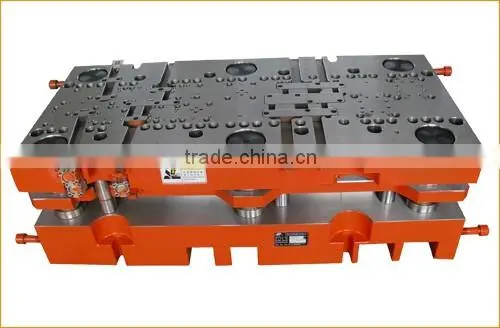

Help CenterMotor Lamination Core Products Stamping Die Tool
Related Products
-
Metal Hardware Parts Air Condition Bracket Stamping Parts Deep Drawing PartsUS$ 0.1 - 10MOQ: 1000 Sets -
Aluminum Die Casting ProductUS$ 1 - 10MOQ: 5000 Sets
-
Transformer Cores and LaminationsUS$ 1 - 10MOQ: 5000 Sets
-
Precision Progressive Die for Wind Generator Rotor Stator LaminationUS$ 5 - 20MOQ: 1000 Sets
-
Precision Machining Progressive Die for Wind Generator Rotor Stator LaminationUS$ 1 - 10MOQ: 5000 Sets
shade-pole motor stator and rotor
Progressive stamping for stator and rotor lamination is a stamping method that punches the strip material (cold-rolled electrical steel) in several stages before finally outputting the desired shape of stator/rotor lamination. Progressive stamping requires an automatic feeding system.
The feeding system pushes the strip through all stages of a progressive stamping die.
The final stage is a cutoff or output operation that separates the finished stator or rotor from the rest of the strip.
Progressive stamping for stator and rotor may be applied to loose sheets or auto-stacked motor core.
Stamping controller is required for auto-stacked motor core for defining number of strokes, shaft hole size selection and skewing/indexing parameters.
Progressive stamping dies are much more higher in price than compound dies. When production volume required is high, progressive stamping is preferred over compound stamping because it will save labor costs.
Shenzhen jiarun precision stamping mould company is leading motor stator and rotor manufacturer in the China .we obtained ISO9001;2008.
We are engaged in research, development and manufacturing of International standard and non-standard silicon steel sheets, and magnetic cores for motors, ballasts, power switches, and automobile ignitors. We also design and manufacture high-speed progressive dies.
Our company employ 100 specialized staff, among whom 30 are technicians holding above technical degrees, 8 engineers and 8 enterprise administrators. Our company has introduced about 30 full-automatic high-speed precision punching presses from 20-220T which are imported from Japan .
We have 15 sets of high precision slitting equipment. Our company also has advanced heat treatment equipment with the annual handling capacity of 600 sets and a full set of die processing equipment of Japan SODIC slow-feeding wire-cut machines.
Moreover, we have also purchased COORD3 coordinate measuring machines, image testers, iron loss testers and other high precision measuring instruments from Switzerland .
Our company can manufacture 600 sets of various silicon steel sheets and crushed products, with the annual heat treatment handling capacity of 600sets. We can develop, design and manufacture 600 pairs of standard or non-standard high-speed progressive dies.
Over the past years, we have constantly stuck to the tenets of customers' satisfactions and deemed continuous improvement as our permanent pursuits. Guided by the quality guidelines, we attach great importance to processes and results.
New management philosophy has always been introduced from the die development, design and manufacture to the product making. So far, we have brought in the management tools of ERP, FMEA, PFMEA, and SPC, so as to meet the product requirements and enhance the customers' satisfactions. In the meantime, we manufacture auxiliary products for some famous brands both nationally and internationally in transformer, electrical tool, household appliance and automobile accessory industries.
We produce according to ISO9001 standards. We have won such honors as Grade AAA Credit Enterprise, Enterprise for Honoring Contract and Keeping Faith and Municipal Star Enterprise.
We have an area of 3600 square meters.We integrate research, procurement, production and sales into one. By right of superior quality, excellent service and reasonable price, our products are well received in more than 50 countries and regions such as the US, Britain, Germany and Japan. We have a number of long-term strategic partners.
| Place of Origin | Guangdong, China (Mainland) |
| Brand Name | JR |
| Model Number | jr2130 |
| Size | according to need |
| Type | metal stamping parts |
| Car Make | custom parts |
| material | metal |
| surface treatment | according to need |
| tolerance | accoding to custmer's drawing |
| quality guarantee | 2D and 3D test equipment |
| certificate | ISO9001:2008. |
| After-sales Service Provided | guarantee replacement |
| price | large order can get discount |
| type | OEM and other |
Shenzhen jiarun precision stamping tool and die company is established in 1997 ,and now the factory is located in Songgang Town.it is a hingh-tech enterprise ,specializing in all kinds of hardware .we have advanced equipment such as the large-scale stamping machine CNC machine wrie-cutting which are imported from Japan Taiwan Switzerland .The plant covers an area of 3,600 square meters and is worthy 15 million total investment .we obtained the ISO9001;2008.
R&D |
IO professional engineers |
workplace |
More than 100 experienced staff |
Wallhouse |
Independent wallhouse |
Sale and market |
10 excellent salesman |
equipment |
Stamping machine surface treatment machine |
market |
Japan Southeast Asia Africa America ,Europe |
Business parter |
More than 10 excellent hardware company |
Material |
Reach the Europe stardard |
Brand |
JR |
Specification |
JR motor stator and rotor |
product name |
stator rotor |
product material |
Carbon steel, hot-dipped galvanized steel, SECC, stainless steel, aluminum, |
process method |
stamping ,punching ,forming ,bending ,deep drawing |
mould steel |
AISI D2/JIS SKD11/ Din1.2379, ASP-23, SKH-9,etc |
mould type |
progressive stamping die ,transfer die , high speed die ,deep drawing die,punching die,forming die, bending die ,etc |
equipment |
20-220T press maqchine , CNC machine , wire EDM machine ,laser machine ,conputer CNC machine , grinding machine etc |
stamping capacity |
0.1mm to 5mm , longth 3000mm ,width 2000mm 20t-220t |
surface finish |
electroplating, Powder coating, Conversion, Passivation , Anodize, Alodine, |
product |
auto stamping part ,machinerty stamping part ,office appliance stamping part ,computer stamping part ,terminal,connector ,contact ,flat spring ,flat washer, HDMI stamping part , IC chip Lead Frame ,micro SD stamping part, PC terminal,I/O ,USB stamping part,motor stator ,motor rotor ,motor bracket, motor cover ,motor case , electornic stamping part , usb connector , wire EDM part , stamping mould deep drawing die ,etc |
output |
500 sets die , 25sets press machine ,5 sets CNC machine ,20 sets grinder machine ,12 sets SODIC wire EDM ,5sets laser machine , |
market |
Europe ,America,Japan,India ,southeast Asia ,Africa, |
main customer |
Midea, Casic, Canon, Tong-chang electric machinery, Chigo Air conditioning, Mitsubishi Electric, Mitsui High-Tec. |
after-sales service |
guarantee replace , engineers are access for oversea, |
brand |
JR ,OEM ,and other |
certificate |
ISO9001;2008 |
company profile
Shenzhen Jiarun Precision mould Co., Ltd is specialized in hardware parts and punch dies manufacturing, mainly products are high-speed stamping dies, motor core, motor bracket, shredder blades, mobile connector terminals, and other hardware parts and suitable dies. Our company firstly has been authorized by ISO9002 and enjoying good reputation On mold manufacturing field. Good quality is the soul of our company, our company has established on the basis of standard modern enterprise management system.
It is established in 1997, and now located in Yanchuan industry district, Shenzhen City, Guangdong Province, China with good transport advantages. The plant now has 3,600 square meters worthy of about 15 million RMB total investment, and import many precision equipments from Taiwan, Japan and Switzerland. The engineer team number added up to 70%.
Major products are including scatted pieces, automatic stacking, screwed slots, large-degree rotation,motor core toolings and DC motor core roll cylinder toolings development and innovation, motor BB cover progressive strench progressive toolings. Based on the leader from markets and customers requirements, the company is developing steadily with professional standard constant improvements and technical innovation doing our utmosts to provide customers with high cost performance toolings.
We have been building the long-term cooperation with many famous appliance and motor manufacturers in and abroad, and also are familiar with customer requirements, production quality assurance, product delivery time guarantee, and satisfying after-sale service with stable improvements to realize win-win developments!
Main Product:
We are professional with progressive die, stamping die . We could provide service all about precision sheet metal stamping dies including stamping die design, stamping die manufacturing, machining and trouble shooting of stamping dies.
About our product:
1.Precision technology
2.Competitive price
3.Quality guarantee
4.Quick delivery
5.Convenient type of payment
Die building process
The die building process begins in our design department. Here one of our die designers utilizes the customer’s CAD files or prints to determine the best tool design. Often the preliminary design stage involves an engineering meeting where multiple die designers review the part prints and strip layouts. Our goal is to identify any potential issues with tolerances, difficult form issues, or maintenance issues early in the process. Recommendations may be made to improve efficiency and reduce costs in the production process.
After we are confident that we have achieved the most sound and practical die design possible, the design information is released for die manufacture. One toolmaker becomes responsible for coordinating the job through all processes, assembly, and die tryout. Cad data is sent to our cam area for processing. The cad/cam environment makes it possible for us to accurately track the entire die manufacture process and duplicate a component from archive data in the event that a problem should occur in the field.
From affordable hand transfer dies to the most complex progressive dies, at JR we are confident in what we do and take pride in our work. Every die we ship has our guarantee of satisfaction and we will continue to support it through it’s life.
