Automatic 5 Gallon Water Filling Machine, 5 Gallon Water Bottling Plant, Automatic Bottle Washing Filling Capping Machine

Automatic 5 Gallon Water Filling Machine, 5 Gallon Water Bottling Plant, Automatic Bottle Washing Filling Capping Machine photo-1
Automatic 5 Gallon Water Filling Machine, 5 Gallon Water Bottling Plant, Automatic Bottle Washing Filling Capping Machine photo-2
Automatic 5 Gallon Water Filling Machine, 5 Gallon Water Bottling Plant, Automatic Bottle Washing Filling Capping Machine photo-3
Automatic 5 Gallon Water Filling Machine, 5 Gallon Water Bottling Plant, Automatic Bottle Washing Filling Capping Machine photo-4
Automatic 5 Gallon Water Filling Machine, 5 Gallon Water Bottling Plant, Automatic Bottle Washing Filling Capping Machine photo-5
Automatic 5 Gallon Water Filling Machine, 5 Gallon Water Bottling Plant, Automatic Bottle Washing Filling Capping Machine photo-6
US$ 1 - 4,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Barrel, Bottles, Cartons
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage
Packaging Type Barrel, Bottles, Cartons
Packaging Material Plastic, Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 380V 50HZ
Power 2 to 12 Kw, By order
Place of Origin Jiangsu, China
Brand Name XINMAO
Model Number QGF-250
Dimension(L*W*H) 1500*3500*2300mm
Weight 1200 KG
Certification CE Certification, ISO9001:2000
After-sales Service Provided Engineers available to service machinery overseas

Automatic 5 Gallon Water Filling Machine, 5 gallon Water Bottling Plant, Automatic Bottle Washing Filling Capping Machine



1. Model: QGF-250 to QGF-1200 bottle per hour

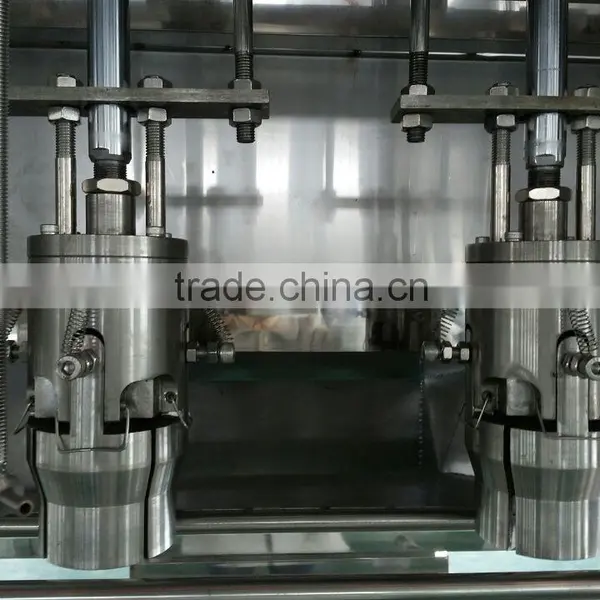

2. Filling heads: 2 heads



3. Host working stations:12



4. Production capacity: 250 to 300 bottle per hour



5. voltage: 380V, 50HZ, max consumption 2kw.



6. Washing procedure: the first and second procedure: disinfectant washing; the third: cycle water washing; the fourth: drip dry; the fifth: pure water washing; the sixth: drip dry.(we can change the washing procedure according to customer's requirement)



7. Gas: pressure 0.5-0.6Mp,gas consumption: 0.3m³/h



8. The whole machine is made of food standard 304 stainless steel



9. There are automatic sorting caps and conveying caps system



Dear Sir/Madam



Whole line include water purify filter system and the CGF-120 BPH filling mahine.



Pure water use Roverse Osmosis device, Mineral water use Hollow fiber ultrafiltration divice.



If you need whole line, please make sure you need pure water or mineral water, then i can give quotation at once.



We assure you of our best services at all times.

Cap remover

Automatic 5 Gallon Water Filling Machine, 5 gallon Water Bottling Plant, Automatic Bottle Washing Filling Capping Machine

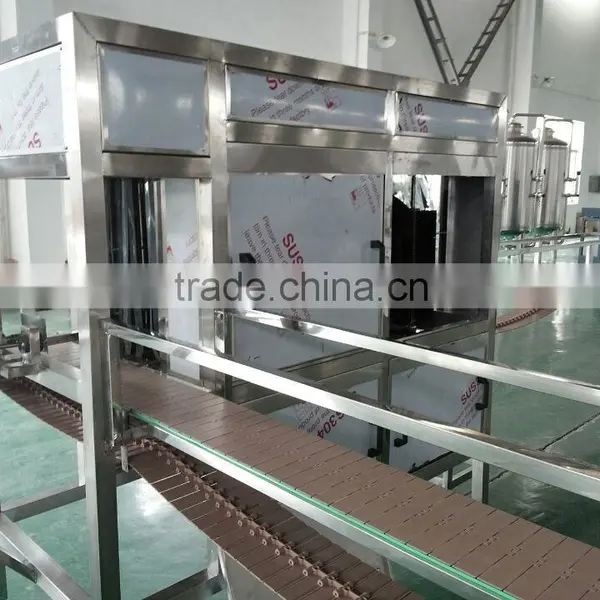

Full auto 5 gallon bottle outside bursher.

Automatic 5 Gallon Water Filling Machine, 5 gallon Water Bottling Plant, Automatic Bottle Washing Filling Capping Machine

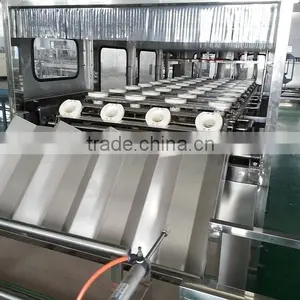

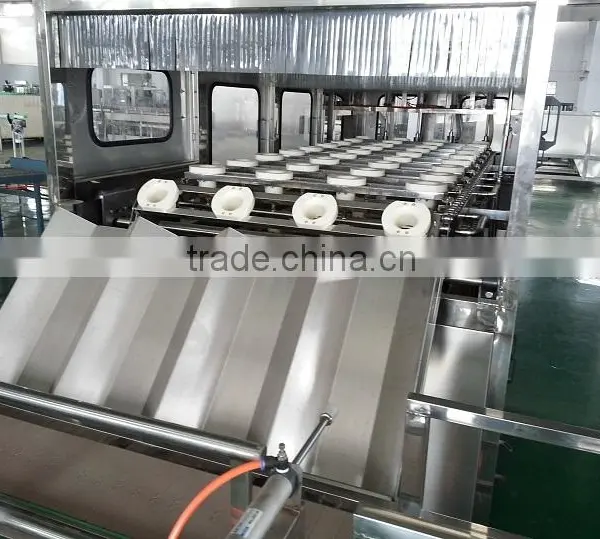

washing&filling&capping machine--300BPHAutomatic 5 Gallon Water Filling Machine, 5 gallon Water Bottling Plant, Automatic Bottle Washing Filling Capping Machine



washing&filling&capping machine--900BPHAutomatic 5 Gallon Water Filling Machine, 5 gallon Water Bottling Plant, Automatic Bottle Washing Filling Capping Machine



Steam shrink 5 bottle bottle mouth label

Automatic 5 Gallon Water Filling Machine, 5 gallon Water Bottling Plant, Automatic Bottle Washing Filling Capping Machine

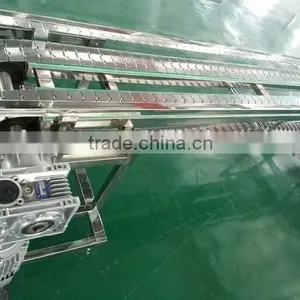

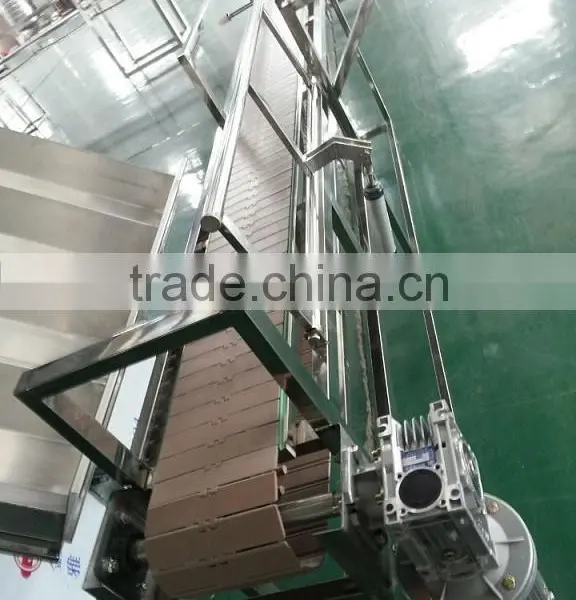

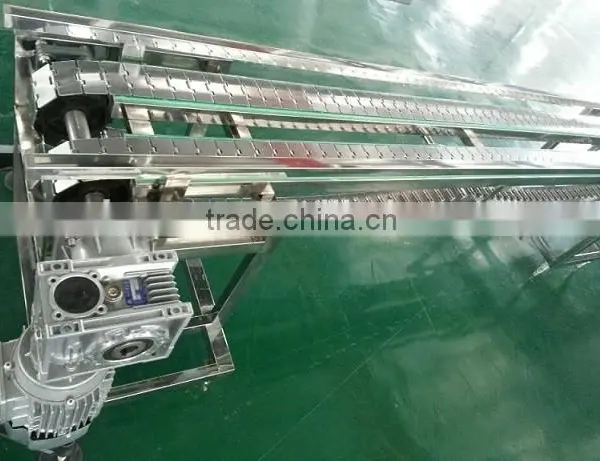

Stainless steel full bottle conveyor

Automatic 5 Gallon Water Filling Machine, 5 gallon Water Bottling Plant, Automatic Bottle Washing Filling Capping Machine



Wooden case package

Automatic 5 Gallon Water Filling Machine, 5 gallon Water Bottling Plant, Automatic Bottle Washing Filling Capping Machine
