Washing Filling Capping 1.38-13.5kw(motor) Automatic 5 Gallon Barrel Water Filling Machine

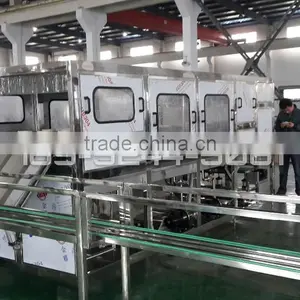

Washing Filling Capping 1.38-13.5kw(motor) Automatic 5 Gallon Barrel Water Filling Machine photo-1

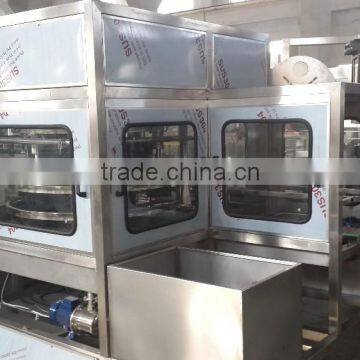

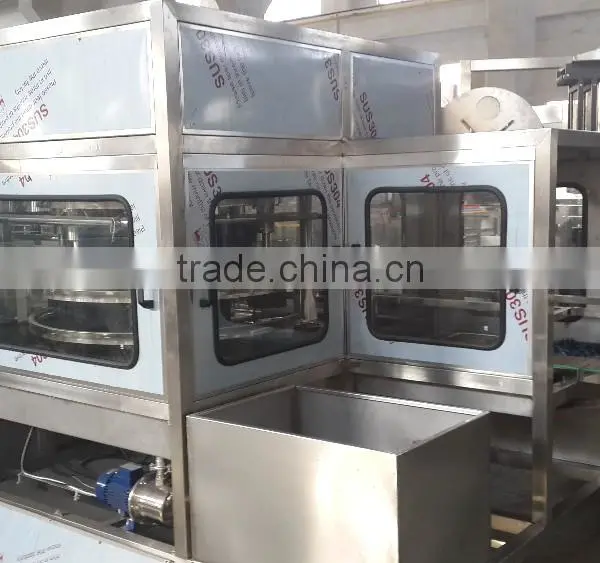

Washing Filling Capping 1.38-13.5kw(motor) Automatic 5 Gallon Barrel Water Filling Machine photo-2

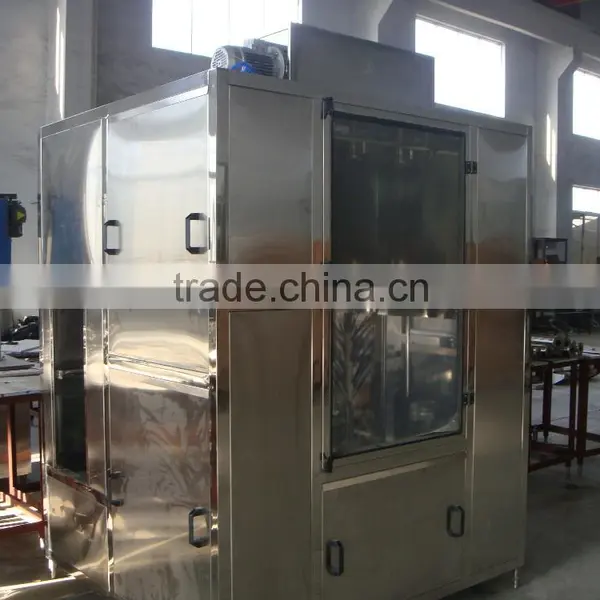

Washing Filling Capping 1.38-13.5kw(motor) Automatic 5 Gallon Barrel Water Filling Machine photo-3

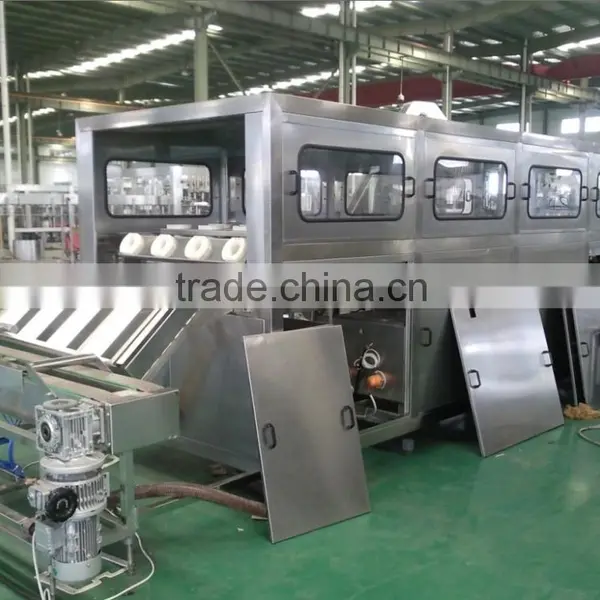

Washing Filling Capping 1.38-13.5kw(motor) Automatic 5 Gallon Barrel Water Filling Machine photo-4
US$ 1 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Barrel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage
Packaging Type Barrel
Packaging Material Wood
Automatic Grade Automatic
Driven Type Electric
Voltage 380V 50Hz or by order
Power 1.38-13.5kw(motor)
Place of Origin Jiangsu, China
Brand Name Xinmao
Model Number QGF series
Dimension(L*W*H) up to the capacity
Weight 680-4500kg
Certification CE and ISO 9001:2000
After-sales Service Provided Engineers available to service machinery overseas



5 gallon water filling machine,  20 liter barrel water fillling machine, 3 gallon water filling machine



 This machine is made by stainless steel 304, it has auto washing, filling& capping in one body, with auto uploading barrrel, empty bottle conveying& full bottle conveying, the length can design according to the buyer's workshop.

The machine adpot hot washing.



Main technical standard

Model

QGF-120

QGF-250

QGF-300

QGF-450

QGF-600

QGF-900

QGF-1200

Filling heads

1

2

2

3

4

6

10

Volume

20

20

20

20

20

20

20

Barrel size

¢270*490

¢270*490

¢270*490

¢270*490

¢270*490

¢270*490

¢270*490

Capacity

120

250

300

450

600

900

1200

Gas pressure

0.4-0.6

0.4-0.6

0.4-0.6

0.4-0.6

0.6

0.6

0.6

Gas consumption

0.37

0.37

0.6

0.8

1

1.5

1.8

Moto power

1.38

1.75

3.8

3.8

7.5

9.75

13.5

Rated voltage

380V/50HZ

380V/50HZ

380V/50HZ

380V/50HZ

380V/50HZ

380V/50HZ

380V/50HZ

weight

680

800

1500

2100

3000

3500

4500





1 Caps deeper

Name

Brand

Auto switch

Sanli

PLC

Mitsubishi

Button, knob,indicating   lamp

Sanli

Cylinder

AIRTAG

Solenoid valve

AIRTAG

Cylinder joints, valve

AIRTAG

Air valve   FRL

AIRTAG

2 Washing, filling and capping machine

Capping type

Chain type

Transmission type

Motor type

PLC

Mitsubishi

Transducer

OMRON

proximity switch

OMRON

Photoelectric switch

OMRON

Contactor

Schneider

Hot-protector

Schneider

Switch

Schneider

indicating lamp

Schneider

circuit breaker

Schneider

Cylinder

AIRTAG

Size (L*W*H)(contain bottle feed system)

5200×1600×1850mm

Weight

2800kg

Power

7.65kw



Washing filling capping 1.38-13.5kw(motor) automatic 5 gallon barrel water filling machine



Washing filling capping 1.38-13.5kw(motor) automatic 5 gallon barrel water filling machine



Washing filling capping 1.38-13.5kw(motor) automatic 5 gallon barrel water filling machineWashing filling capping 1.38-13.5kw(motor) automatic 5 gallon barrel water filling machineWashing filling capping 1.38-13.5kw(motor) automatic 5 gallon barrel water filling machineWashing filling capping 1.38-13.5kw(motor) automatic 5 gallon barrel water filling machineWashing filling capping 1.38-13.5kw(motor) automatic 5 gallon barrel water filling machine



·Find our products through
http://xin-mao.en.china.cn/ Alibaba,
/, / etc.

·One year warranty for the whole system .

·After one year , we can help you to maintain the machine and the accessories are
provided only one the cost price.

·We can provide internship service and help you train the operator and mechanic.

·Free production technology and process configuration.

·We can help you to design the product line , workshop and provide turn-key project.



Washing filling capping 1.38-13.5kw(motor) automatic 5 gallon barrel water filling machine



How to get your suitable machine or production line ?



Inquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, MSN, Skype)
and let us know your inquiry.



Discussion: Specify the items you desire, confirm specification; OEM/ODM consultation.



Quotation: Prices offered and accepted.



·Place order as per contract or discussion.



·Perform invoice( sales contract ) In duplicate confirmed and kept by both sides.



·Payment settled.



·Order completed under our arrangement.



·Goods shipped as per contracted term.



·Goods arrive at local port or warehouse, depending on contracted term.



·Support & re-ordering.
