Wanhongxi Industry Co., Ltd is a leading manufacturer and exporter of Battery.
Quality Control System of Wanhongxi applies the most advanced equipments and continual improved artworks to organize the production process.
The QC department consists of IQC,IPQC, QA, QE, OQC, laboratory and testing which strictly meets ISO9001 quality system requirements from in-house material to batteries out warehouse to make sure the products are under the strict audit in the whole process.
The defective rate is below 0.1%. Meanwhile, Wanhongxi takes analytical pure material to make sure the batteries with high quality, long life, low self-discharge advantages.
Good quality manufactory UPS battery 12v 7ah, 17ah ups battery, 24ah ups battery, 65ah ups battery, 100ah ups battery, 120 ups battery, 150ah ups battery, 200ah ups battery.any size you need, welcome contact us.
Parameter of 12v 17ah battery: | ||
Nominal Voltage |
12V |
|
Rated Capacity (20 hour rate) |
17AH |
|
Size (Length*Width*Height*Total Height) |
181*77*167*167MM |
|
Weight Approx |
5.0KG |
|
|
Capacity 25°C (77°F) |
20 Hour Rate(0.85A) |
17AH |
10 Hour Rate(1.56A) |
15.6AH |
|
5 Hour Rate(2.90A) |
14.5AH |
|
1 Hour Rate(10.2A) |
10.2AH |
|
1.5 Hour Discharge To 10.5V |
6.8A |
|
Internal Resistance |
Full Charged Battery at 25°C(77°F) |
16.5mΩ |
|
Capacity Affected By Temperature (10 Hour Rate) |
40°C(104°F) |
102% |
25°C(77°F) |
100% |
|
0°C(32°F) |
85% |
|
-15°C(5°F) |
65% |
|
|
Self-Discharge at 25°C (77°F) |
Capacity after 3 Month Storage |
91% |
Capacity after 6 Month Storage |
82% |
|
Capacity after 12 Month Storage |
64% |
|
Terminal |
T3 |
|
|
Cycle Charge (Constant Voltage) |
Initial Charging Current Less Than 6.8A |
|
Voltage 14.40-15.00V | ||
|
Float Charge (Constant Voltage) |
Voltage 13.50-13.80V |
|
Warr |
||
TREE BRAND LEAD ACID BATTERY
- Material Grade A original lead , purity near 100%
- Production time make lead plate ourself , delivery time about one week

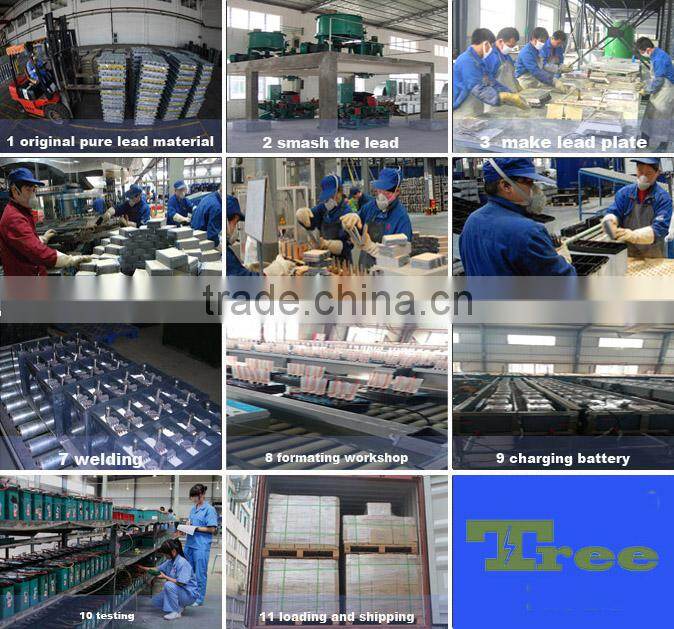

- Price We are big factory and prodce lead plate instead of purchasing, so can control the cost ,quality and production time easily.
- Technology advanced welding machine ,not easy shourt-circuit ,ensure batteries long life.
- Quality All batteries should be tested 5 times before packing to ensure quality OK.
- Package professional workers ; Non fumigation pallets can be exported to all countries .
- Low self-dischargeThe use of analytically pure sulphuric acid electrolyte and reasonable arrangement of special additives can effectively reduce the self-discharge speed of the batteries.
- High safetyThe efficient safety valve made of imported rubber is durable, ageing resistant and corrosion resistant that can effectively ensure the safety of internal pressure of the products in use.
- Economical and practical The extremely high performance, long service life and low maintenance combined to make Tree batteries as
- Maintenance free As it is value-regulated .sealed and glass mat is utilized .acid GEL is trapped inside . so refilling is not needed and is leak proof.
- Longer service life Utilized thick and massive calcium grate ensure that TREE battery has a longer service life over 15years .
Solar Energy System & Wind Energy System
- Uninterrupted Power Supply system(UPS)
- Telecommunication system
- Alarm and Security system
- Emergency Power Supply system(EPS)
- Emergency Lighting System & Small Lamps
- Medical Equipments
- Power plant
- bank system
- computer system
- Power tools
- Home
- etc.

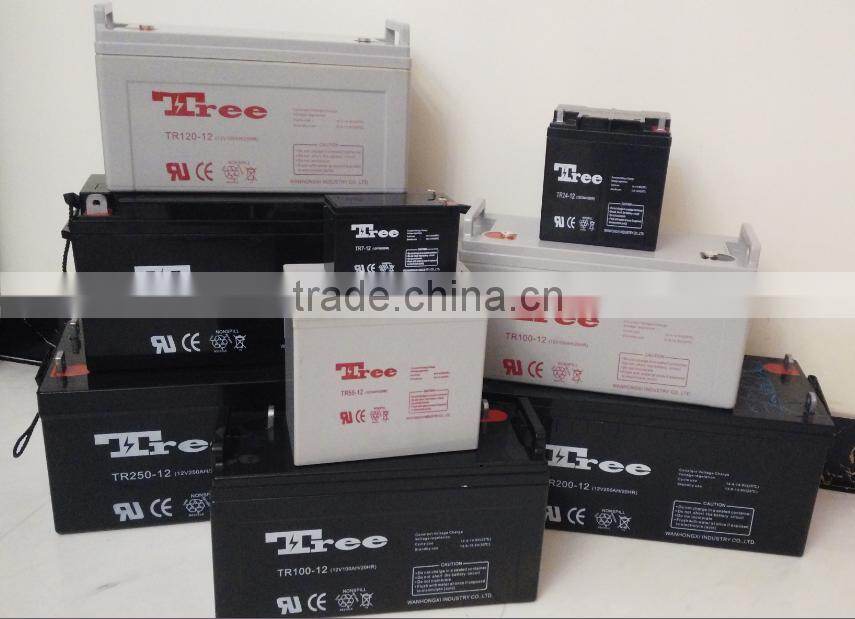

Our factory have various models with 2v, 6v, 12v with agm, deep cycle and gel type, such as solar battery, solar panel battery, inverter battery, etc
| MODEL | Size(MM) | Weight(KG) |
| 12v 1.2Ah | 97*43*52*58 | 0.56 |
| 12V 2.3AH | 178*35*61*67 | 0.82 |
| 12V 7.2AH | 151*65*95*100 | 2.15 |
| 12V 12AH | 151*98*95*100 | 3.6 |
| 12V 18AH | 181*77*166*166 | 5.3 |
| 12V 20AH | 181*77*166*166 | 5.6 |
| 12V 26AH | 175*166*125*125 | 7.3 |
| 12V38AH | 197*166*174 | 10.70 |
| 12V50AH | 230*138*211 | 13.70 |
| 12V68AH | 350*166*179 | 20.5 |
| 12V100AH | 331*173*213 | 29.00 |
| 12V 110AH | 407*171*238 | 34.5 |
| 12V120AH | 407*174*209 | 35.00 |
| 12V150AH | 484*171*241 | 41.5 |
| 12V200AH | 522*240*218 | 58 |
| 12V 255AH | 520*269*203 | 70.50 |
Q Can your battery meet CE requirements?
A Yes, our battery meet CE, ISO9001, ISO14001, IEC61427, and Solar Product Certification. Also with MSDS certificate ,can be exported to almost every country .
Q Can you print my picture or logo on the battery?
A Yes, OEM is available, we can print your picture or logo on the battery and box.
Q What's the warranty?
A Below 24AH, 1 year from manufacturing date; Above 24AH, 3 years from manufacturing date.Indeed, our battery products can be used for about 7 to 12 years.
Q What's your hot sell?
A Our batteries are sell well all around the world, such as 2V600AH, 2V800AH, 6V7AH, 6V12AH, 12V7AH, 12V12AH, 12V17AH, 12V24AH, 12V100AH, 12V150AH, 12V200AH and etc.
Q Why Chose Us:
A 1. As a specialized manufacturer .We use only original lead material which purity is 99.99% . We possess our own lead-plate production line, which is the core technology for Lead Acid Battery. Most important, we adopt advanced green formation technology, which can greatly decrease the effect to the environment comparing to the tank formation technology. With high tin ratio inside the lead plate, we can greatly increase the battery life cycle.
2. As a qualified supplier in the world.We possess the following certificate CE, ISO9001, ISO14001, IEC61427, and Solar Product Certification.With completely quality control system and production management system, we do control the product quality and production efficiency very well.
3. As a big manufacturer in China.We not only support you with quick delivery but also satisfy you with customized service. We two factories with lead plate production workshop and 5 battery assembly lines.
4. As a 11 years history factory.We can support you esteemed company with experienced professional team and reputable market reputation. Any question, please don't hesitate to contact us.

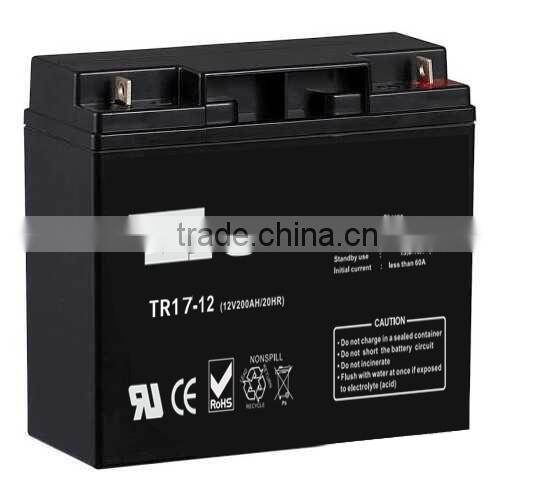

free maintenance ups system battery 12V 17Ah rechargeable lead acid batteries
for more detail, just tell us freely.
If possible, welcome visit our factory!
