Wanhongxi Industry Co., Ltd is a leading manufacturer and exporter of Battery.
Quality Control System of Wanhongxi applies the most advanced equipments and continual improved artworks to organize the production process.
The QC department consists of IQC,IPQC, QA, QE, OQC, laboratory and testing which strictly meets ISO9001 quality system requirements from in-house material to batteries out warehouse to make sure the products are under the strict audit in the whole process.
The defective rate is below 0.1%. Meanwhile, Wanhongxi takes analytical pure material to make sure the batteries with high quality, long life, low self-discharge advantages.
manufacturer Specification for Baterry 12v High Capacity 24v 150ah GEL Battery
Bttery Type: AGM, Deep Cycle, GEL type
Warranty: 3 Years
Exact short deliver time

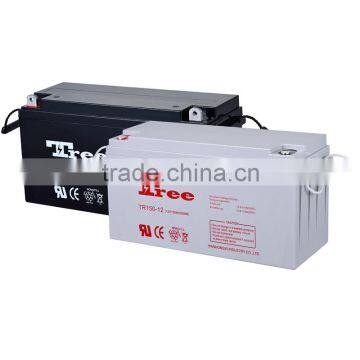

12V 150Ah Battery Black with pb terminal
12V 150Ah Battery white with pb terminal
OEM Your Logo
Parameter of 12V 150AH battery : | ||
Nominal Voltage |
12V |
|
Rated Capacity (10 hour rate) |
150AH |
|
Size (Length*Width*Height*Total Height) |
484*170*240*240MM |
|
Weight Approx |
42.5KG |
|
|
Capacity 25°C (77°F) |
10 Hour Rate(9.0A) |
150AH |
|
5 Hour Rate(14.4A) |
120AH |
|
1 Hour Rate(54.0A) |
90AH |
|
1.5 Hour Discharge To 10.5V |
60A |
Internal Resistance |
Full Charged Battery at 25°C(77°F) |
3.8mΩ |
|
Capacity Affected By Temperature (10 Hour Rate) |
40°C(104°F) |
102% |
|
25°C(77°F) |
100% |
|
0°C(32°F) |
85% |
|
-15°C(5°F) |
65% |
|
Self-Discharge at 25°C (77°F) |
Capacity after 3 Month Storage |
91% |
|
Capacity after 6 Month Storage |
82% |
|
Capacity after 12 Month Storage |
64% |
Terminal |
T11 |
|
|
Cycle Charge (Constant Voltage) |
Initial Charging Current Less Than 60A |
|
|
Voltage 14.10-14.40V |
|
|
Float Charge (Constant Voltage) |
Voltage 13.50-13.80V |
|
Warranty |
3 Years |
|
OEM Service |
Accept |
|
Color |
Black, Gray,white |
|
Container Material |
UL94HB And UL 94V-0 ABS Plastic |
|
Certificate |
CE; ISO9001; MSDS |
|

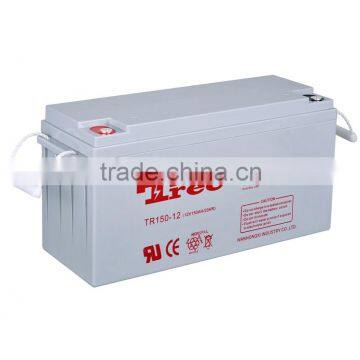

TREE BRAND LEAD ACID BATTERY 12V 150AH Battery
Low self-discharge
The use of analytically pure sulphuric acid electrolyte and reasonable arrangement of special additives can effectively
reduce the self-discharge speed of the batteries.
High safety
The efficient safety valve made of imported rubber is durable, ageing resistant and corrosion resistant that can effectively
ensure the safety of internal pressure of the products in use.
Strong temperature adaptability
It can be safety used between -30 ℃ and 50 ℃.
Safe and easy for use and transportation
They are manufactured with full load of charges containing no dissociated electrolytes. There is no need of using packages
for dangerous goods. And the land and water transportation meet the standards of international shipment.
Economical and practical
The extremely high performance, long service life and low maintenance combined to make Tree batteries as
Maintenance free
As it is value-regulated .sealed and glass mat is utilized .acid GEL is trapped inside . so refilling is not needed and is leak proof.
Longer service life
Utilized thick and massive calcium grate ensure that TREE battery has a longer service life over 15years .
Our factory have various models with 2v, 6v, 12v with agm, deep cycle and gel type, such as solar battery, solar panel battery, inverter battery, etc
| MODEL | Size(MM) | Weight(KG) |
| 12v 1.2Ah | 97*43*52*58 | 0.56 |
| 12V 2.3AH | 178*35*61*67 | 0.82 |
| 12V 7.2AH | 151*65*95*100 | 2.15 |
| 12V 12AH | 151*98*95*100 | 3.6 |
| 12V 18AH | 181*77*166*166 | 5.3 |
| 12V 20AH | 181*77*166*166 | 5.6 |
| 12V 26AH | 175*166*125*125 | 7.3 |
| 12V38AH | 197*166*174 | 10.70 |
| 12V50AH | 230*138*211 | 13.70 |
| 12V68AH | 350*166*179 | 20.5 |
| 12V100AH | 331*173*213 | 29.00 |
| 12V 110AH | 407*171*238 | 34.5 |
| 12V120AH | 407*174*209 | 35.00 |
| 12V150AH | 484*171*241 | 41.5 |
| 12V200AH | 522*240*218 | 58 |
| 12V 255AH | 520*269*203 | 70.50 |
About manufacturer Specification for Baterry 12v High Capacity 24v 150ah GEL Battery , more information you need, just tell us freely.
If possible, welcome visit our factory!
