Home > Products > Timming Belt > rubber belt,v-belt,timing belt,industrial belt
rubber belt,v-belt,timing belt,industrial belt
- 100000 Piece / Pieces per Month
- NINGBO SHANGHAI
- T/T Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | FEILIZHOU | Model Number: | MXL,XXL,XL,L,H,XH,XXH |
Product Description
The main products include V-belt ,timming belt,ribbed belt,raw edge cogged v-belt,variable speed belt,etc which are used in the filed of automotive,truck,motocycle and industry agriculture,household appliance.
Welcome to contact us,we hope to bulid good cooperation with you.
The transmission of synchronous beit is a new transmission mode and transmits the dynamic torce by the meshing of the belt teeth and pulley,lt combines respective advantages of gear transmission,chain tramission and transmission.
Structure |
No. | Name | Function | Material |
1 | Top Rubber | Protect the linling tensile member | CR HNBR |
2 | Tensile Member | Core material to pass the dynamic force | Glass Filber |
3 | Teeth Rubber | Protect the tensile member and maintain the shape of the rubber | CR HNBR |
4 | Teeth Fabric | Maintain the shape of the adhesive | Elastic Fabric |
Feature |
lt may solve the problems such as low transmission efficiency and lubrication oil required under the status of high speed when suing the chain,distance limit between the drive part and the slave drive part when using the gear. Glass fiber as tensile member.no elongation of rubber belt. Excellent heat-resistance,oil-proof,and wearing resistance Higher transmission efficiency can be guaranteed under the condittion of large change of peration speed and temperature. lts performance can be exerted stably and safely during the process of high-speed rotation. |
T Type lndustrial Synchronous Belt |
Type | Pith(mm) | Tooth height(mm) | Belt thickess(mm) | Angle() |
MXL | 2.032 | 0.51 | 1.14 | 40 |
XXL | 3.175 | 0.76 | 1.52 | 50 |
XL | 5.08 | 1.27 | 2.30 | 50 |
L | 9.525 | 1.91 | 3.60 | 40 |
H | 12.70 | 2.29 | 4.30 | 40 |
XH | 22.225 | 6.35 | 11.20 | 40 |
XXH | 31.75 | 9.35 | 15.70 | 40 |
T2.5 | 2.5 | 0.70 | 1.30 | 40 |
T5 | 5 | 1.20 | 2.20 | 40 |
T10 | 10 | 2.50 | 4.50 | 40 |
T20 | 20 | 5.00 | 8.00 | 40 |
AT5 | 5 | 1.20 | 2.70 | 50 |
AT10 | 10 | 2.50 | 5.00 | 50 |
AT20 | 20 | 5.00 | 8.00 | 50 |

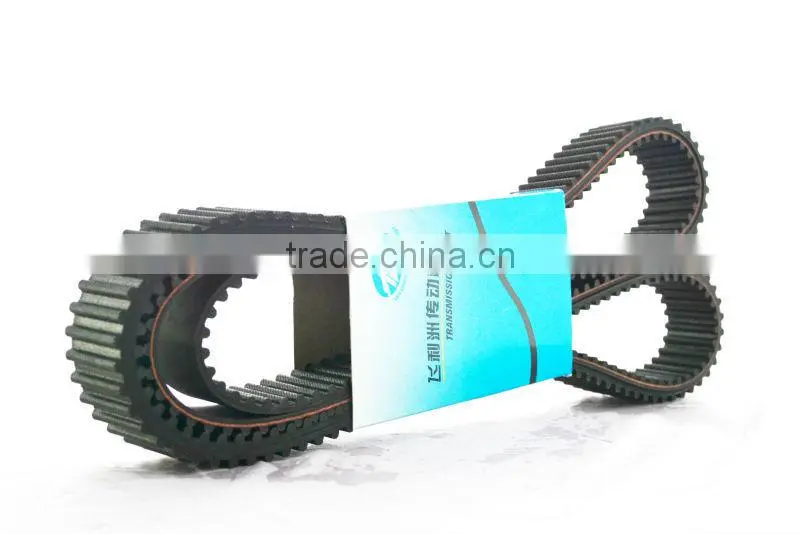

Arc tooth industrial rubber synchronous belt
Automobile Synchronous Belt Details:
The transmission of synchronous belt is a new transmission mode and transmits the dynamic torce by the meshing of the belt teeth and pulley, lt combines respective advantages of gear transmission,chain tramission and transmission.
Material:Chroprene Rubber(CR), Glass Fiber, Fabric or others (as customer's requirement)
Can you give me discount?
Yes, of course. If you talk with us, you’ll get more.
Will you send me free sample?
Yeah, she'd love to; can you buy her a ticket?
Do you like to accept small orders?
We enjoy to grow up together with all our clients, whatever big or small.You will become bigger and bigger to be with us.
How long are their lifetime?
My friend, with your gentle care,6 months to 36 months for different products.
Buyer attention
If you are interested in our products and company, please leave a message here or E-mail to us, We will reply you without any delay.
Are you a trading company or manufacturer? | We are manufacturer.
|
What kinds of products we supply? | V-BELT,TIMING BELT,RIBBED BELT,TRANSMISSION BELT,WRAPPED BELT,RAW EDGE COGGED V BELT,ETC. |
Do you Accept OEM service? | YES! |
What's your Delivery Time? | 1)generally the samples will be sent immediately by the air express in 5-7 days if the goods are in stock. |
2) Normally within 30 days, please confirm with us before order! | |
How you pack products? | Plastic rope+Carton |
What's your available port of Shipment? | Normally, ningbo Other ports available but you should afford extra charges. |
Can you provide sample? | Yes, product samples are warmly welcomed. You only need to pay for the shipping cost. |
How to pay? | We accept T/T, Western Union |
Contact Us
- Taizhou Feilizhou Rubber-Belt Co., Ltd.
- Contact nameElena bao
- Phone86-576-83118719
- AddressHucun village,gaojian town Taizhou,Zhejiang
